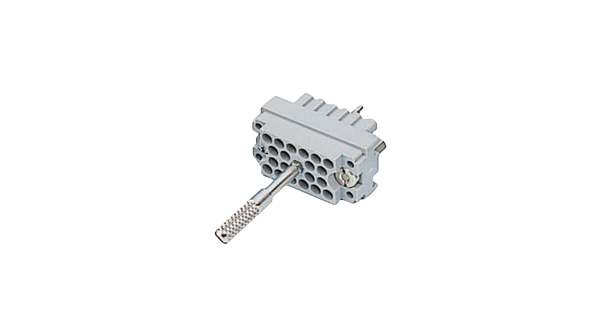

516-038-000-201
| 制造商 | |
| 描述 | CONN RCPT 38POS RACK & PANEL Rack & Panel Connectors 38P RECPT 516 SERIES Conn Rack and Panel RCP 38 POS Crimp ST Panel Mount RACK & PANEL CONNECTOR, RECEPTACLE, 38POS Receptacle housing Pitch3.81 mm Poles 38 for panel mount / For hermaphroditic contacts 516, 516-038-000-201, Edac |
| 分类 |
商业参数
| 产品类别 | Rack & Panel Connectors | 标准包装数量 | 25 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366930 |
机械参数
| 颜色 | Green | 间距 | 0.150" (3.81mm) |
| 重量 | 0 | 包装方式 | Bulk |
| 触头类型 | Socket | 安装类型 | Varies by Contact |
| 连接器类型 | Housing for Non Gendered Contacts | 接触镀层 | Gold |
| 排数 | 9 | 连接器样式 | Rack and Panel |
| 连接器用途 | Receptacle | 触头材料 | Phosphor Bronze |
| 第一触头极性 | :- | 触点数 | 38 |
| 接触件端接 | :- | 位数 | 38 |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | :Receptacle |
| 系列 | 516 | 产品特性 | Jackscrew, Guide Pin |
| 产品子类型 | Receptacle Connectors | ||
