点击放大查看

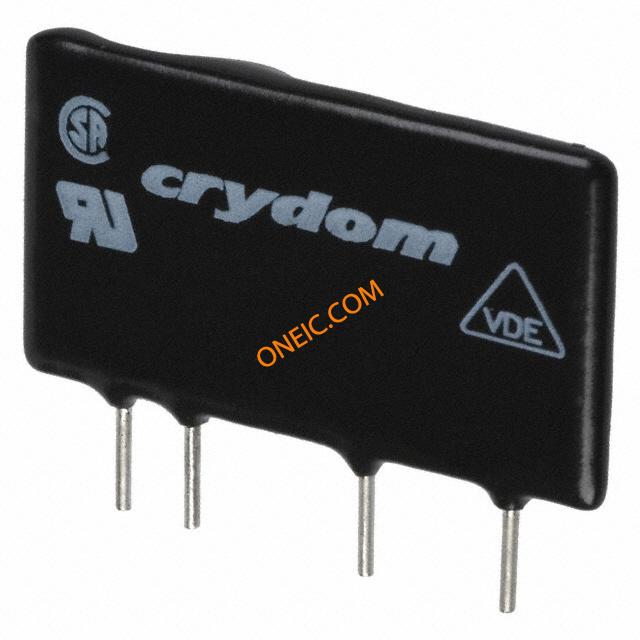

CX240D5-B
| 制造商 | |
| 描述 | Solid State Relays - PCB Mount PCB SIP SSR 280Vac /5A, 3-15Vdc,ZC,NC RELAY SSR SPST-NC 5A AC SIP 28V Solid State Relay Control Voltage: 3-15 VDC Load Current: 5 Amps Load Voltage: 12-280 VAC Output Configuration: 1B SPST-NC Mounting: PC Board |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 56 Days | 子类别 | Solid State Relay |
| 产品类别 | Solid State Relays - PCB Mount | 标准包装数量 | 40 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 输出端 | SCR | 电路 | SPST-NC (1 Form B) |
| 输出类型 | AC, Zero Cross | 负载电流 | 5A |
| 负载电压 | 12 ~ 280 V | 供电电压 | 4 VDC to 28 VDC |
| 最大额定电流 | 5 A | 最小输入电压 | 4 ~ 28VDC |
| 最小供电电压 | 12 VAC to 280 VAC | 输入偏置电流（最大） | 15 mA |
机械参数
| 包装方式 | Bulk | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 封装形式 | 4-SIP |
| 端接样式 | Solder Pin | 供应商器件封装 | 4-SIP |
产品信息
| 类型 | Relays | 系列 | CX |
| 继电器类型 | Relay | 产品子类型 | PCB Mount |
| 卡标准 | Solid State Relay | 控制/显示类型 | 3-15 VDC |
| 输出配置 | 1B NC | ||
文档与媒体
PDF 文档
PDF 文档
