点击放大查看

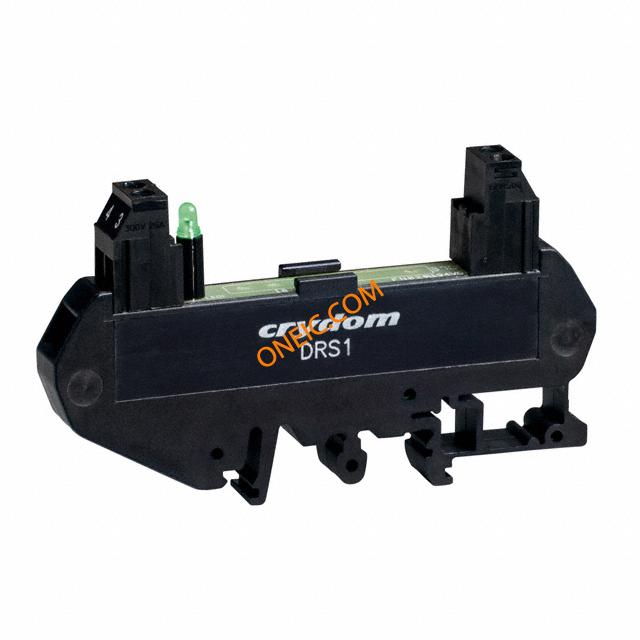

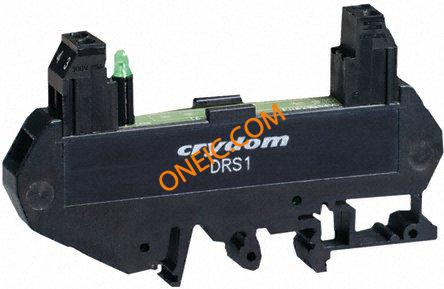

DRS1
| 制造商 | |
| 描述 | Relay Sockets & Hardware SNGL Point Din-Rail Mountable Kit Din Rail Mount With 10mm Single Channel And 54mm Four Channel Din Rail Mount Sockets DIN-RAIL SOCKET SNGL CHAN RELAY 9 Piece Solid State Relay Mounting Kit KIT, DIN RAIL MOUNT FOR SINGLE SSR ACCESSORY;SINGLEPOINTDIN-RAILMOUNTABLEKIT 9件 固态继电器安装套件 |
| 分类 |
商业参数
| 交货时间 | 56 Days | 其他名称 | DRS1-ND |
| 子类别 | Misc Products | 产品类别 | Relay Sockets & Hardware |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85364900 |
电气参数
| 额定电压 | :32V | 最大额定电流 | 8A(max) |
| 最小供电电压 | 3-32/18-140VDC/VAC | ||
机械参数
| 重量 | 0.017 | 安装类型 | DIN Rail |
| 端子类型 | :Cage Clamp, Screw | 连接器类型 | :Cage Clamp / Screw |
| 引脚数 | :1 | 端接样式 | Screw |
| 位数 | 4 | ||
产品信息
| 类型 | Mounting Rail | 系列 | DRA Series |
| 产品特性 | SeeDataSheet | 通道类型 | Single |

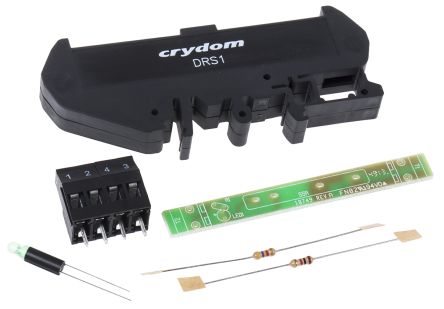

| 套件内容 | 1 kΩ Resistor, 4.7 kΩ Resistor, Green LED, Input Terminal Block, LED Stand Off, Left Side Housing (Includes 2 Screws), Output Terminal Block, Printed Circuit Board, Profile Extrusion, Right Side Housing (Includes 2 Screws) | 附件类型 | Socket |
| 单元数量 | 9 | 适用产品/相关产品 | CX and CMX Series |
