点击放大查看

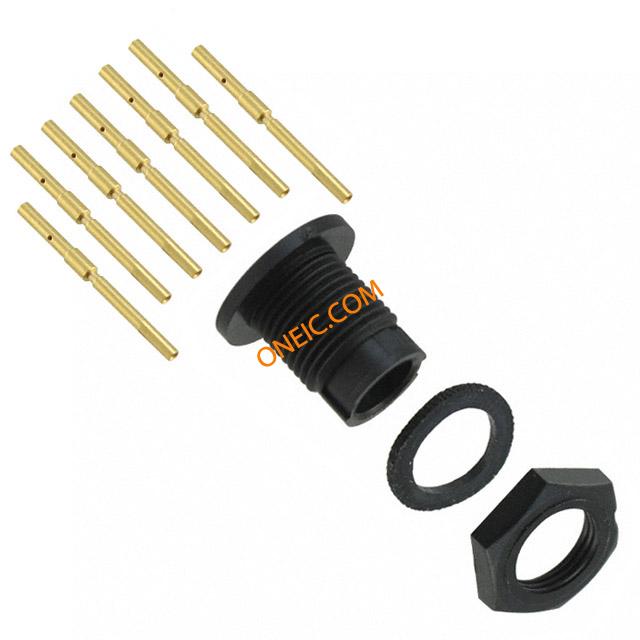

17980-7SG-300
| 制造商 | |
| 描述 | Standard Circular Connector 7P SOCKET PANEL MT Conn Circular SKT 26 POS Crimp ST Panel Mount 26 Terminal 1 Port CONN RCPT 7POS PNL MNT SKT PANELSOCKETCRIMP |
| 分类 |
商业参数
| 商标名 | Micro-Con-X | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 600V | 最大额定电流 | 3.5A |
机械参数
| 包装方式 | Bulk | 出线方向 | No |
| 方向 | Keyed | 端接方式 | Crimp |
| 触头类型 | 26Signal | 安装类型 | Panel Mount |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Bayonet Lock | 安装样式 | Panel |
| 触头材料 | Copper Alloy | 总长度 | 19.2 |
| 端接样式 | Crimp | 第一触头极性 | SKT |
| 触点数 | 26 | 位数 | 7 |
| 外壳材料及表面处理 | Thermoplastic | ||
产品信息
| 类型 | Circular | 连接器性别 | PL |
| 系列 | Micro-Con-X | 产品子类型 | Connectors |
环境参数
| 防护等级 | Weathertight | 工作温度 | -40°C ~ 75°C |
