点击放大查看

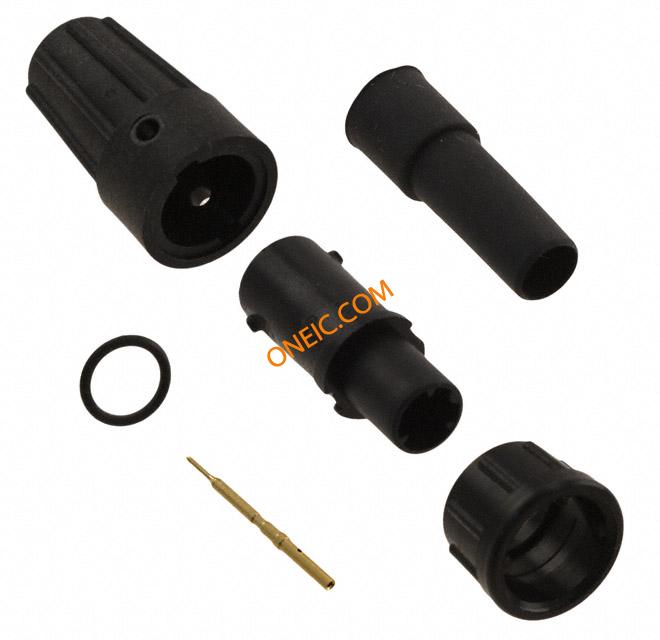

16980-7PG-522
| 制造商 | |
| 描述 | Standard Circular Connector 7P PIN, CRIMP CABLE END Conn Micro-C PIN 7 POS Crimp ST Cable Mount 7 Terminal 1 Port CONN PLUG 7POS CABLE PIN CABLEENDPINCRIMP,LONGBACKSHELL |
| 分类 |
商业参数
| 商标名 | Micro-Con-X | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 600V | 最大额定电流 | 3.5A |
机械参数
| 包装方式 | Bulk | 方向 | Keyed |
| 端接方式 | Crimp | 触头类型 | 7Signal |
| 安装类型 | Cable Mount | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Bayonet Lock |
| 安装样式 | Wire | 触头材料 | Copper Alloy |
| 端接样式 | Crimp | 第一触头极性 | PIN |
| 触点数 | 7 | 位数 | 7 |
| 外壳材料及表面处理 | Thermoplastic | ||
产品信息
| 类型 | Micro-C | 系列 | Micro-Con-X |
| 产品子类型 | Connectors | ||
环境参数
| 防护等级 | Weathertight | 工作温度 | -40°C ~ 75°C |
文档与媒体
