点击放大查看

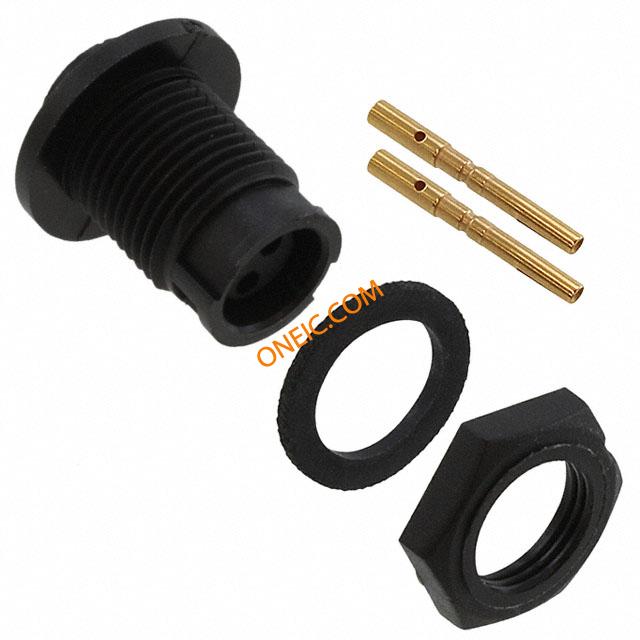

17280-2SG-300

制造商	Switchcraft, Inc.
描述	Standard Circular Connector MICRO-CON PANEL #20 CRIMP Conn Field Installable SKT 2 POS Crimp ST Panel Mount 2 Terminal 1 Port Standard Circular Connectors MICRO-CON PANEL #20 CRIMP CONN RCPT 2POS PNL MNT SKT MICRO-CONPANEL#20CRIMP
分类	连接器解决方案圆形连接器标准圆形连接器

对参数有疑问？问 AI 助手

商业参数

交货时间	44 Days	商标名	Micro-Con-X
子类别	Connector Circular	标准包装数量	25
工厂包装数量	25

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Supplier Unconfirmed

电气参数

额定电压

600V

最大额定电流

7.5A

机械参数

深度	15.9	高度	18.2
直径	18.2	包装方式	Bulk
出线方向	No	方向	Keyed
外壳样式	Receptacle	端接方式	Crimp
触头类型	2Signal	安装类型	Panel Mount
连接器类型	Receptacle, Female Sockets	接触镀层	Gold Over Nickel
紧固类型	Bayonet Lock	安装样式	Panel
外壳材料（壳体）	Plastic	触头材料	Brass
端接样式	Crimp	第一触头极性	SKT
触点数	2	位数	2
外壳材料及表面处理	Thermoplastic

产品信息

类型	Field Installable	系列	Micro-Con-X
产品子类型	Connectors

环境参数

防护等级

Weathertight

工作温度

-40°C ~ 75°C

文档与媒体

PDF 文档

conxall_catalog.pdf

PDF 文档

Cable Assemblies/Connector Catalog

在线文档

ProductSummary.aspx?Parent=859
