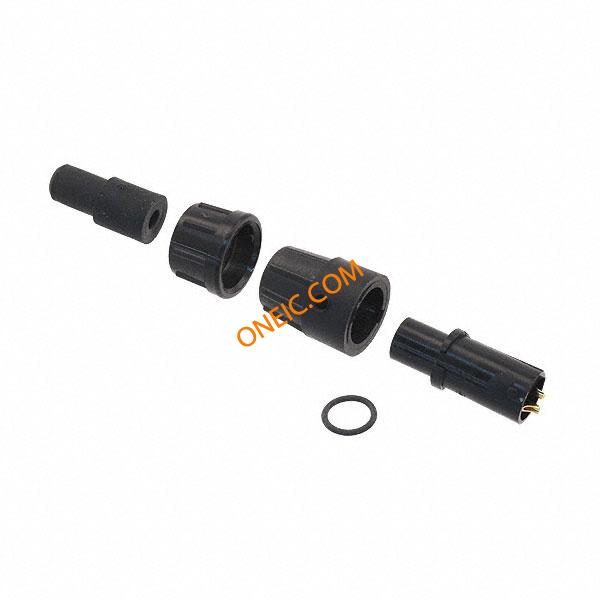

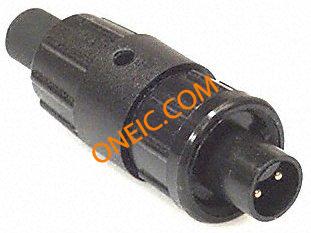

点击放大查看

16282-2PG-311

制造商	Switchcraft, Inc.
描述	Standard Circular Connector 2P PIN CABLE END O.D.=.09-.14 Conn Field Installable PIN 2 POS Solder ST Cable Mount 2 Terminal 1 Port Standard Circular Connectors 2P PIN CABLE END O.D.=.09-.14 CONN PLUG 2POS CABLE PIN MICRO-CON CABLE, 2way pin CIRCULAR CONNECTOR PLUG, SIZE 20, 2POS, CABLE MICRO-CONCABLE,2waypin MICRO-CONCABLEEND#20SOLDER Switchcraft MICRO-CON-X 系列 2路电缆安装直向连接器插头 , 公触点, 嵌入式接合
分类	连接器解决方案圆形连接器工业圆形连接器（扩展）

对参数有疑问？问 AI 助手

商业参数

商标名	Micro-Con-X	产品类别	Standard Circular Connector
标准包装数量	25	工厂包装数量	25

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Supplier Unconfirmed
海关税号	85369010

电气参数

额定电压

600V

最大额定电流

7.5A

机械参数

重量	0.005	直径	13.5
包装方式	Bulk	出线方向	No

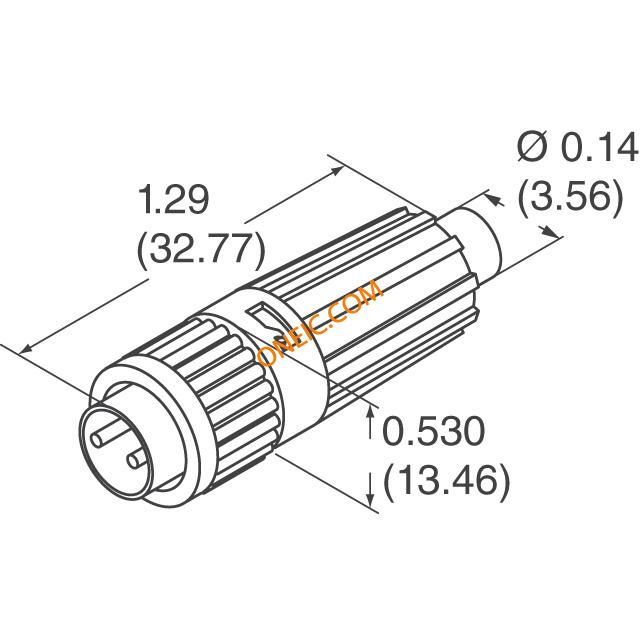

外壳尺寸	13.5mm	方向	Keyed
外壳样式	Plug	端接方式	Solder
触头类型	2Signal	安装类型	Cable Mount
连接器类型	Plug, Male Pins	接触镀层	Gold Over Nickel
紧固类型	Bayonet Lock	连接器用途	Snap-In
插入角度	:-	本体材料	:Nylon (Polyamide)
触头材料	Brass	壳体材料	Nylon
总长度	32.8	第一触头极性	PIN
触点数	2	位数	2
外壳材料及表面处理	Thermoplastic	第一连接器安装类型	:Cable

产品信息

类型	Field Installable	连接器性别	Male
系列	MICRO-CON-X	产品子类型	Connectors

环境参数

密封等级	IP67	防护等级	Weathertight
工作温度	-40°C ~ 75°C

文档与媒体

PDF 文档

Cable Assemblies/Connector Catalog

PDF 文档

conxall_catalog.pdf
