点击放大查看

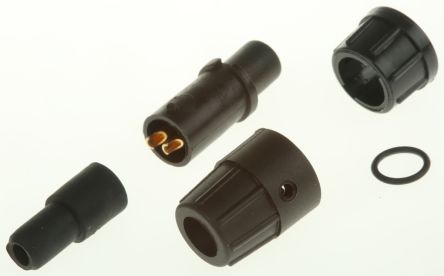

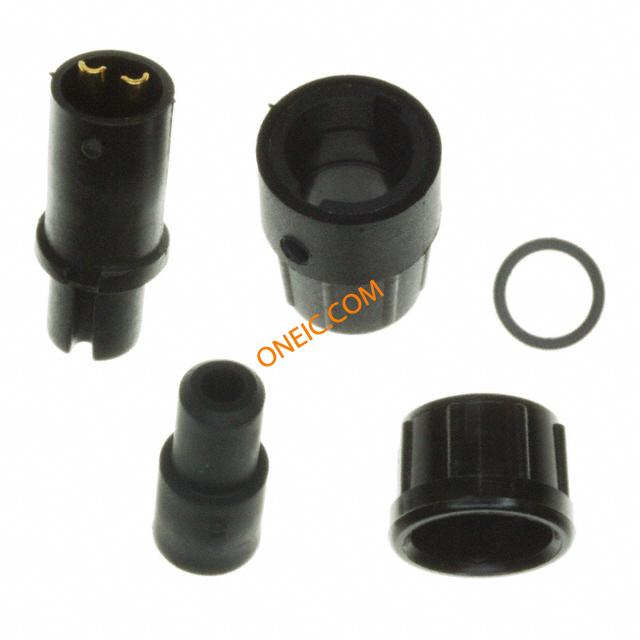

16282-2SG-311

制造商	Switchcraft, Inc.
描述	Standard Circular Connector 2P SOCKET CABLE END O.D.=.09-.14 Conn Field Installable SKT 2 POS Solder ST Cable Mount 2 Terminal 1 Port Standard Circular Connectors 2P SOCKET CABLE END O.D.=.09-.14 CONN PLUG 2POS CABLE SKT CONNECTOR, CIRCULAR Micro-Con-XCableEnd,#20contact,Soldercup,2socket,Weathertight,cable.0 Switchcraft MICRO-CON-X 系列 2路电缆安装直向连接器插座 , 母触点, 嵌入式接合
分类	连接器解决方案圆形连接器标准圆形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	Micro-Con-X	产品类别	Standard Circular Connector
标准包装数量	25	工厂包装数量	25

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
海关税号	85369010

电气参数

额定电压

600V

最大额定电流

7.5A

机械参数

重量	1.11	直径	13.5
包装方式	Bulk	出线方向	No
方向	Keyed	外壳样式	Receptacle
端接方式	Solder	重量（g）	4.65600
触头类型	2Signal	安装类型	Cable Mount
连接器类型	Plug, Female Sockets	接触镀层	Gold Over Nickel
紧固类型	Bayonet Lock	插入角度	:20-2
本体材料	:Nylon (Polyamide)	触头材料	Brass

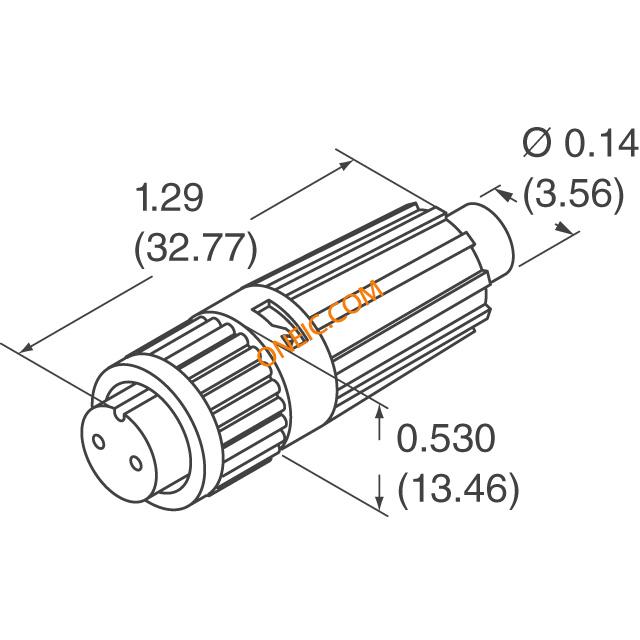

总长度	32.8	第一触头极性	SKT
触点数	2	接触件端接	:Solder
位数	2	外壳尺寸-插件	:20
外壳材料及表面处理	Thermoplastic	第一连接器安装类型	:Cable

产品信息

类型	Field Installable	连接器性别	:Socket
系列	Micro-Con-X	产品子类型	Connectors

环境参数

防护等级

Weathertight

工作温度

-40°C ~ 75°C

文档与媒体

PDF 文档

16282-2SG-3xx Drawing

PDF 文档

Cable Assemblies/Connector Catalog

PDF 文档

83453.pdf
