16280-3SG-318

制造商	Switchcraft, Inc.
描述	Standard Circular Connector MICRO-CON CBL END #20 CRIMP Conn Field Installable SKT 3 POS Crimp ST Cable Mount 3 Terminal 1 Port Standard Circular Connectors MICRO-CON CBL END #20 CRIMP CONN PLUG 3POS CABLE SKT MICRO-CONCABLEEND#20CRIMP
分类	连接器解决方案圆形连接器标准圆形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

工厂包装数量

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Supplier Unconfirmed

电气参数

额定电压

600V

最大额定电流

7.5A

机械参数

直径	13.5	包装方式	Bulk
出线方向	No	导线线规	24-20
方向	Keyed	端接方式	Crimp
触头类型	3Signal	安装类型	Cable Mount
连接器类型	Plug, Female Sockets	接触镀层	Gold Over Nickel
紧固类型	Bayonet Lock	安装样式	Wire
触头材料	Brass	总长度	32.8
端接样式	Crimp	第一触头极性	SKT
触点数	3	位数	3
外壳材料及表面处理	Thermoplastic

产品信息

类型	Field Installable	系列	Micro-Con-X
产品子类型	Connectors

环境参数

防护等级

Weathertight

工作温度

-40°C ~ 75°C

文档与媒体

PDF 文档

Cable Assemblies/Connector Catalog

相关型号

16295

Conxall / Switchcraft

Standard Circular Connector PROTECTIVE CAP Connector Accessories Cap Receptacle DUST CAP MICRO-CON-X MICRO CON-X DUST CAP DUST CAP, RUBBER DUST CAP, MINI EN3 MICROCON-XRECEPCAP Switchcraft CON X 系列 IP67 防尘盖

¥3.6720

详情

17281-3PG-300

Conxall / Switchcraft

Standard Circular Connector 3P Panel Mt. Pin PC Tail .187 Conn Field Installable PIN 3 POS Solder ST Panel Mount 3 Terminal 1 Port Standard Circular Connectors 3P Panel Mt. Pin PC Tail .187" CONN RCPT 3POS PNL MNT PIN MICRO-CONPANEL#20PC

¥10.6760

详情

18280-3PG-318

Conxall / Switchcraft

Standard Circular Connector MICRO-CON CBL-CBL #20 CRIMP Conn Field Installable PIN 3 POS Crimp ST Cable Mount 3 Terminal 1 Port Standard Circular Connectors MICRO-CON CBL-CBL #20 CRIMP CONN RCPT 3POS CABLE PIN MICRO-CONCABLE-CABLE#20CRIMP

¥13.8720

详情

357-124

Conxall / Switchcraft

Standard Circular Connector TURRET LOCATOR SIZE 12,16 & 20 Assembly Tools Turret Locator-Size 12,16 And 20 TURRET LOCATOR-SIZE 1216 & 20

¥1330.0963

详情

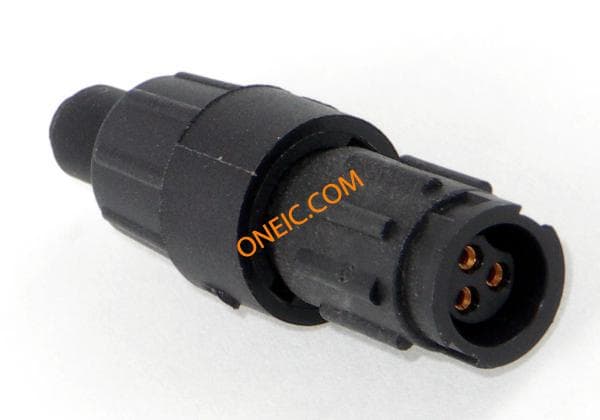

18282-3PG-311
