点击放大查看

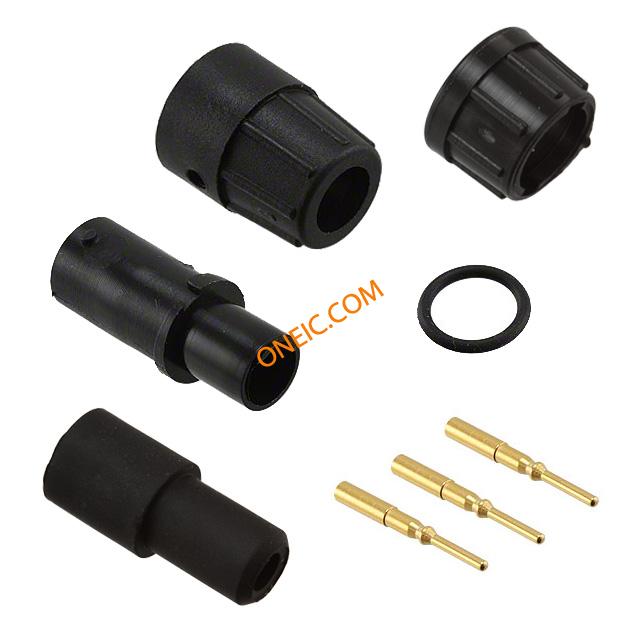

16280-3PG-311

制造商	Switchcraft, Inc.
描述	Standard Circular Connector MICRO-CON CBL END #20 CRIMP Conn Field Installable PIN 3 POS Crimp ST Cable Mount 3 Terminal 1 Port Standard Circular Connectors MICRO-CON CBL END #20 CRIMP CONN PLUG 3POS CABLE PIN MICRO-CONCABLEEND#20CRIMP
分类	连接器解决方案圆形连接器标准圆形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	Micro-Con-X	标准包装数量	25
工厂包装数量	25

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

额定电压

600V

最大额定电流

7.5A

机械参数

直径	13.5	包装方式	Bulk
出线方向	No	方向	Keyed
外壳样式	Plug	端接方式	Crimp
触头类型	3Signal	安装类型	Cable Mount
连接器类型	Plug, Male Pins	接触镀层	Gold Over Nickel
紧固类型	Bayonet Lock	安装样式	Wire
外壳材料（壳体）	Plastic	触头材料	Brass
总长度	32.8	端接样式	Crimp
第一触头极性	PIN	触点数	3
位数	3	外壳材料及表面处理	Thermoplastic

产品信息

类型	Field Installable	系列	Micro-Con-X
产品子类型	Connectors

环境参数

防护等级

Weathertight

工作温度

-40°C ~ 75°C

文档与媒体

PDF 文档

Cable Assemblies/Connector Catalog

在线文档

ProductSummary.aspx?Parent=857
