点击放大查看

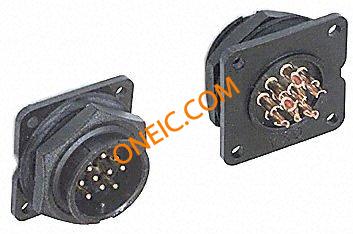

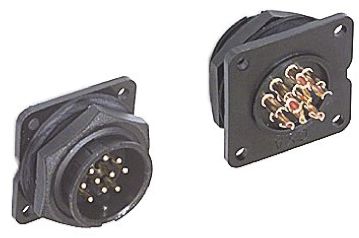

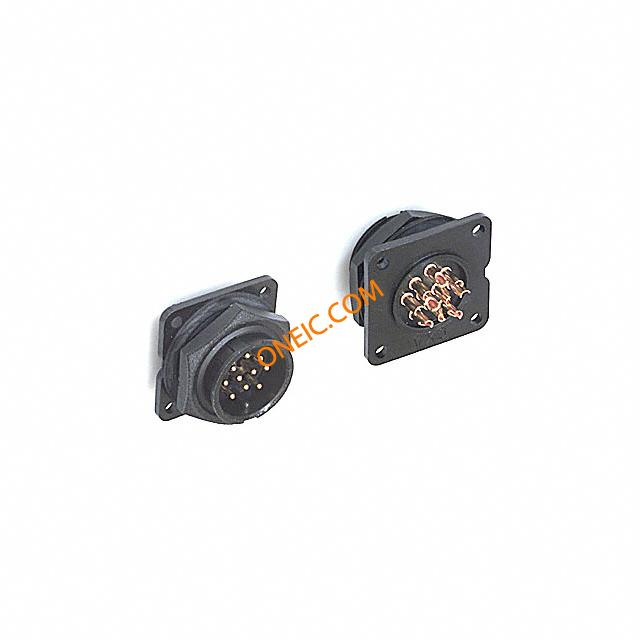

14382-10PG-300

制造商	Switchcraft, Inc.
描述	Standard Circular Connector 10P PIN PANEL MNT W/ HEX NUT & GSKT Conn Field Installable PIN 10 POS Solder ST Panel Mount 10 Terminal 1 Port Standard Circular Connectors 10P PIN PANEL MNT W/ HEX NUT & GSKT CONN RCPT 10POS PNL MNT PIN 10 Pole Male Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts MAXI-CON-X Series CIRCULAR CONNECTOR RCPT SIZE 16, 10POS, PANEL MAXI-CONPANELMOUNT,10waypin MAXI-CONPANEL#16SOLDER Switchcraft MAXI-CON-X 系列 10路面板安装直向连接器插头 , 公触点
分类	连接器解决方案圆形连接器工业圆形连接器（扩展）

对参数有疑问？问 AI 助手

商业参数

交货时间	44 Days	商标名	Maxi-Con-X
其他名称	SC1194	子类别	Connector Circular
产品类别	Standard Circular Connector	标准包装数量	25
工厂包装数量	25

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Supplier Unconfirmed
海关税号	00000000

电气参数

额定电压

600V

最大额定电流

13A

机械参数

深度	6.7	高度	6.7
重量	0.014	包装方式	Bulk
出线方向	No	方向	Keyed
外壳样式	Receptacle	端接方式	Solder
触头类型	10Signal	安装类型	Panel Mount
连接器类型	Receptacle, Male Pins	接触镀层	Gold Over Nickel
紧固类型	Bayonet Lock	本体材料	:Nylon (Polyamide)
触头材料	Brass	壳体材料	Nylon
第一触头极性	PIN	触点数	10
位数	10	外壳尺寸-插件	:16
外壳材料及表面处理	Nylon	第一连接器安装类型	:Panel

产品信息

类型	Field Installable	连接器性别	Male
系列	MAXI-CON-X	产品子类型	Connectors

环境参数

密封等级	IP67	防护等级	Weathertight
工作温度	-40°C ~ 115°C

文档与媒体

PDF 文档

conxall_catalog.pdf

PDF 文档

Maxi(Mini)-Con-X Drawing

PDF 文档

conxall_catalog.pdf

相关型号

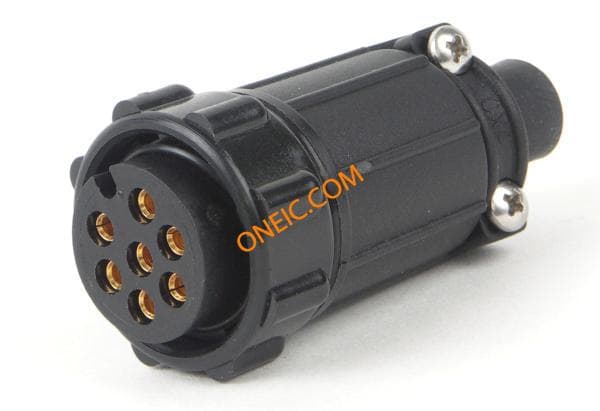

13382-10SG-321

Conxall / Switchcraft

Standard Circular Connector 10P SOCKET CABLE END O.D.=.21-.25 Conn Field Installable SKT 10 POS Solder ST Cable Mount 10 Terminal 1 Port Standard Circular Connectors 10P SOCKET CABLE END O.D.=.21-.25 CONN PLUG 10POS CABLE SKT MAXI-CONCABLE#16SOLDER

¥102.0000

详情

13380-10SG-331

Conxall / Switchcraft

Standard Circular Connector MAXI-CON CABLE #16 CRIMP Conn Field Installable SKT 10 POS Crimp ST Cable Mount 10 Terminal 1 Port Standard Circular Connectors MAXI-CON CABLE #16 CRIMP CONN PLUG 10POS CABLE SKT MAXI-CONCABLE#16CRIMP

¥53.6520

详情

13282-18SG-331

Conxall / Switchcraft

Standard Circular Connector MAXI-CON CABLE #20 SOLDER Conn Field Installable SKT 18 POS Solder ST Cable Mount 18 Terminal 1 Port Standard Circular Connectors MAXI-CON CABLE #20 SOLDER CONN PLUG 18POS CABLE SKT CIRCULAR CONNECTOR PLUG SIZE 20, 18POS, CABLE Maxi-Con-XCableEnd,#20contact,Soldercup,18socket,Weathertight,cable.3

¥290.8733

详情

14293

Conxall / Switchcraft

Standard Circular Connector MAXI GASKET MAXI GASKET GASKET MAXI-CON-X MAXIGASKET

¥1.6184

详情

13282-18PG-331

Conxall / Switchcraft

Standard Circular Connector MAXI-CON CABLE #20 SOLDER Conn Field Installable PIN 18 POS Solder ST Cable Mount 18 Terminal 1 Port Standard Circular Connectors MAXI-CON CABLE #20 SOLDER CONN PLUG 18POS CABLE PIN CIRCULAR CONNECTOR PLUG SIZE 20, 18POS, CABLE MAXI-CONCABLE#20SOLDER

¥68.2040

详情

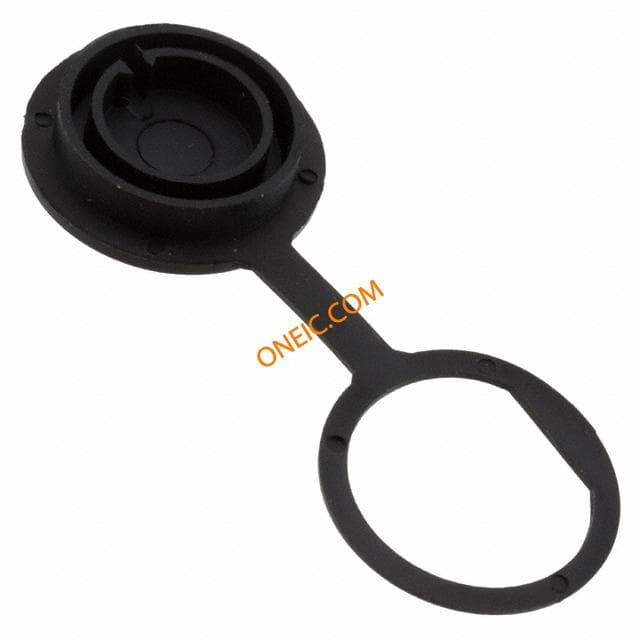

14295
