商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 1 |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL94V-0 |
电气参数
| 额定电压 | 600VAC/DC | 最大额定电流 | 32A |
机械参数
| 重量 | 0.15 kg | 包装方式 | Bulk |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Screw | 安装类型 | Free Hanging (In-Line) |
| 电缆直径 | 20...22mm | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Nickel | 紧固类型 | Threaded |
| 安装样式 | Wire | 锁定特性 | threaded joint, internal thread |
| 触头材料 | brass | 包装数量 | 10 |
| 连接器 - 电缆 | plug | 端接样式 | Screw |
| 第一触头极性 | Pin (Male) | 触点数 | 3 |
| 位数 | 3 | 外壳材料及表面处理 | Polyamide |
| 线规或范围 - mm² | 2.5...4mm2 | 触点材料 - 镀层 | nickel plated |
| 外壳与棱镜材料 | polyamide | ||
产品信息
| SPG | 10 | 系列 | Buccaneer 900 |
| 产品特性 | Cable Clamp | 产品子类型 | Connectors |
| 适配器系列 | Buccaneer 900 | 单元数量 | 1 |
环境参数
| 防护等级 | IP68 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 85°C |
文档与媒体
相关型号
PXA921/03/S
Bulgin
Standard Circular Connector 3 POLE IN-LINE SKT CONN RCPT 3POS IN-LINE SKT Conn Buccaneer SKT 3 POS Screw ST Cable Mount 3 Terminal 1 Port 900SERIESBUCCANEERIN-LINEFLEXCABLECONNECTOR Connector: circular; plug; female; PIN:3; Buccaneer 900; for cable
PX0941/03/S
Bulgin
Standard Circular Connector 3P PNL MOUNT SKT CONN RCPT 3POS PNL MNT SKT 3 Pole Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series SOCKET, FLANGE, 3WAY Connector;Socket;3;ScrewTerminal;32A/30A(CSA);600VAC/VDC;-40degC Connector: circular; socket; female; PIN:3; Buccaneer 900; IP68 Appliance socket with flange, 3-pole 3, PX0941/03/S, Bulgin Bulgin Buccaneer 系列 3路 面板安装 连接器 , 母触点
PX0990
Bulgin
Standard Circular Connector SEALING CAP FOR PX0911/PXA911 SEALING CAP FOR PX0911 & PXA911 Heavy duty sealing cap for PX0911 and PXA911 Connector Accessories Sealing Cap HeavydutysealingcapforPX0911andPXA911 Bulgin 连接器
PX0921/03/S
Bulgin
Standard Circular Connector 3 POLE IN-LINE SKT CONN RCPT 3POS INLINE SKT 3 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 3 POS Screw ST Cable Mount 3 Terminal 1 Port SOCKET, IN-LINE, 3WAY CableConnector,In-Line;3;Socket;6to8mmDia;In-LineFlex;Screw;32A Connector: circular; plug; female; PIN:3; Buccaneer 900; for cable Coupling socket Buccaneer 900, 3-pole 3, PX0921/03/S, Bulgin Bulgin Buccaneer 系列 3路 电缆安装 直向 连接器 , 母触点

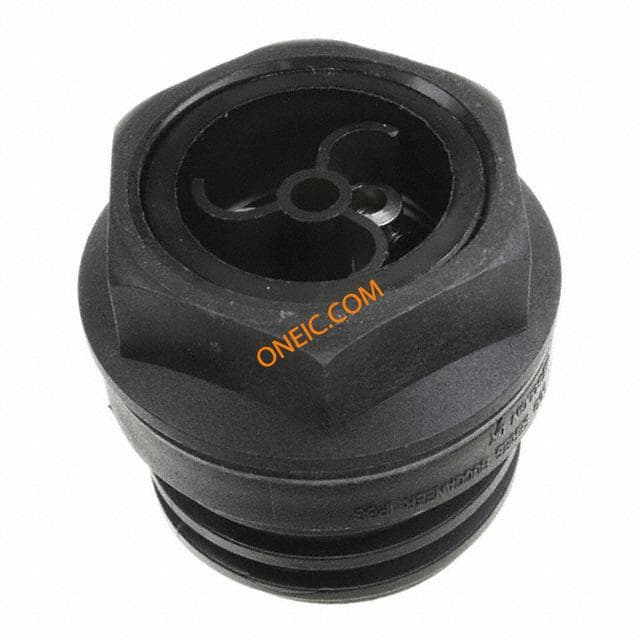

PX0931/03/S
Bulgin
Standard Circular Connector 3 POLE CHAS MT SKT CONN RCPT 3POS PNL MNT SKT 3 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 3 POS Screw ST Panel Mount 3 Terminal 1 Port SOCKET, CHASSIS, 3WAY Connector;Socket;3;13to10AWG;AxialScrewTerminal;32A;600VAC/VDC Connector: circular; socket; female; PIN:3; Buccaneer 900; IP68 Appliance socket Buccaneer 900, 3-pole 3, PX0931/03/S, Bulgin Bulgin Buccaneer 系列 3路 面板安装 直向 连接器 , 母触点
PX0960
Bulgin
Standard Circular Connector SEALING CAP SEALING CAP W/PX0911 AND PXA911 Bulgin 900 buccaneer sealing cap type1 Connector Accessories Sealing Cap CAP, SEAL, PX0911 Accessory,Buccaneer;PX0911andPXA911;IP68(Sealing);900Series Protection cover; threaded joint, external thread Protective cap IP 68, PX0960, Bulgin Bulgin Buccaneer 900 系列 IP68 防尘盖
