点击放大查看

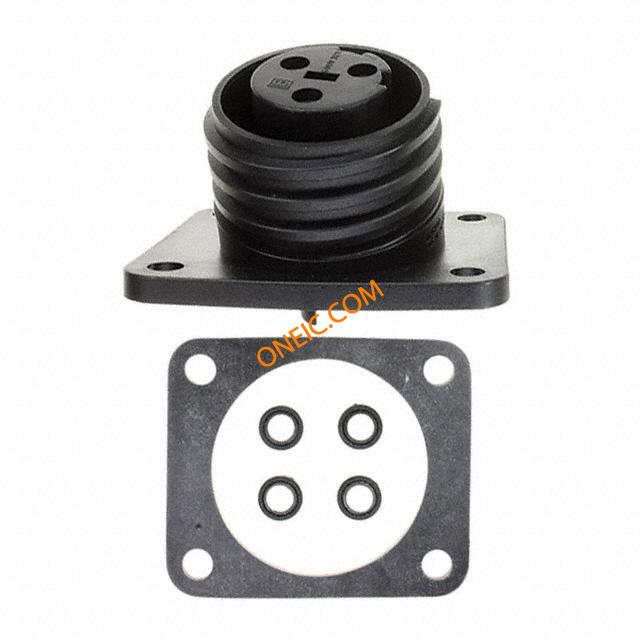

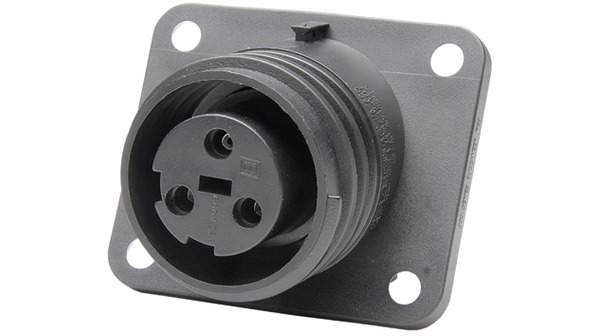

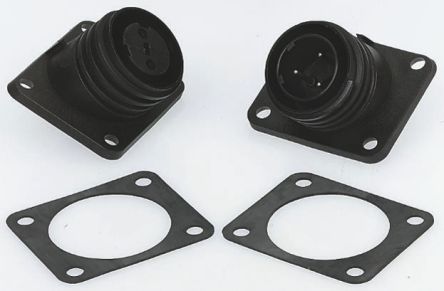

PX0941/03/S
| 制造商 | |
| 描述 | Standard Circular Connector 3P PNL MOUNT SKT CONN RCPT 3POS PNL MNT SKT 3 Pole Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series SOCKET, FLANGE, 3WAY Connector;Socket;3;ScrewTerminal;32A/30A(CSA);600VAC/VDC;-40degC Connector: circular; socket; female; PIN:3; Buccaneer 900; IP68 Appliance socket with flange, 3-pole 3, PX0941/03/S, Bulgin Bulgin Buccaneer 系列 3路 面板安装 连接器 , 母触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 10 |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | :UL 94V-0 |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 600VAC/DC | 工作电压 | :600V |
| 接触电阻 | :10mohm | 介电强度 | :2000V |
| 最大额定电流 | 32A | 绝缘电阻 | :5Mohm |
机械参数
| 深度 | :60mm | 宽度 | :70mm |
| 长度 | :51mm | 重量 | 0.084 |
| 包装方式 | Bulk | 导线线规 | :2.5mm² |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Screw | 触头类型 | Socket |
| 安装类型 | Panel Mount, Flange | 行程角度 | Straight |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Nickel |
| 紧固类型 | Threaded | 安装样式 | Flange |
| 插入角度 | :- | 锁定特性 | threaded joint, external thread |
| 本体材料 | :Nylon (Polyamide) | 触头材料 | Brass |
| 壳体材料 | Polyamide | 包装数量 | 10 |
| 主要材料 | Sealed | 连接器 - 电缆 | socket |
| 端接样式 | Axial Screw | 第一触头极性 | Female |
| 配接方向 | Threaded | 触点数 | 3 |
| 接触件端接 | :Screw | 位数 | 3 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide |
| 线规或范围 - mm² | :4mm² | 触点材料 - 镀层 | nickel plated |
| 外壳与棱镜材料 | polyamide | 第一连接器安装类型 | :Panel |
产品信息
| 类型 | PanelSocket | 连接器性别 | :Receptacle |
| 系列 | Buccaneer | 制造商全称 | 900Series |
| 产品子类型 | Connectors | 适配器系列 | Buccaneer 900 |
| 应用细节 | Commercial | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | -40°C ~ 85°C | ||
