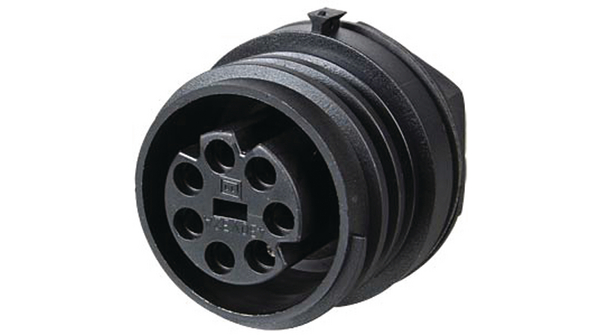

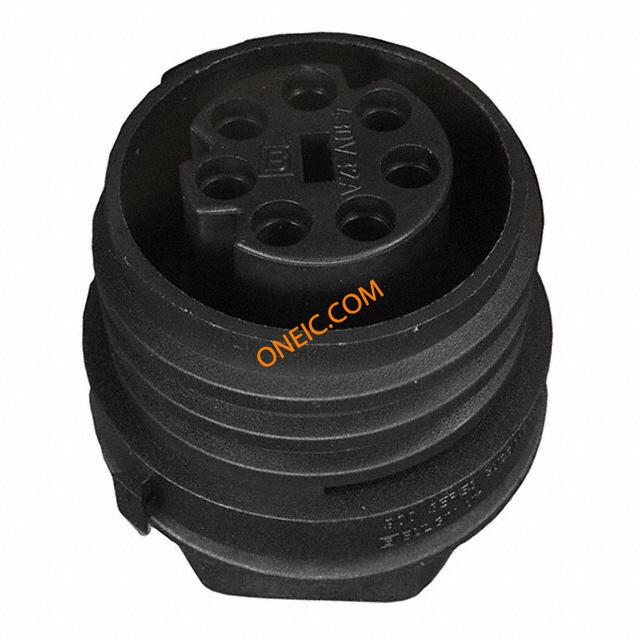

PX0931/07/S
| 制造商 | |
| 描述 | Standard Circular Connector 7 POLE CHAS MT SKT CONN RCPT 7POS PNL MNT SKT 7 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 7 POS Screw ST Panel Mount 7 Terminal 1 Port Connector;Socket;7;13to10AWG;AxialScrewTerminal;32A;430VAC/VDC Connector: circular; socket; female; PIN:7; Buccaneer 900; IP68 Appliance socket Buccaneer 900, 7-pole 7, PX0931/07/S, Bulgin Bulgin Buccaneer 系列 7路 面板安装 直向 连接器 , 母触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 10 |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | Compliant | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 430VAC/DC | 极数 | 7 |
| 最大额定电流 | 32A | 额定电流 - 设备输入口 | 32 |
| 保护电压（VP）（2416） | IP 68 | ||
机械参数
| 重量 | 0.1 kg | 包装方式 | Bulk |
| 导线线规 | 13-10 | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Screw |
| 触头类型 | Socket | 安装类型 | Panel Mount |
| 行程角度 | Straight | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Nickel | 紧固类型 | Threaded |
| 安装样式 | Panel | 锁定特性 | threaded joint, external thread |
| 触头材料 | Brass | 壳体材料 | Polyamide |
| 包装数量 | 10 | 主要材料 | Sealed |
| 端接排数 | 螺钉拧紧 | 连接器 - 电缆 | socket |
| 端接样式 | Axial Screw | 第一触头极性 | Female |
| 配接方向 | Threaded | 触点数 | 7 |
| 位数 | 7 | 第一连接器极性 | Female |
| 外壳材料及表面处理 | Polyamide | 线规或范围 - mm² | 2.5...4mm2 |
| 触点材料 - 镀层 | nickel plated | 外壳与棱镜材料 | polyamide |
产品信息
| SPG | 10 | 类型 | PanelSocket |
| 系列 | Buccaneer | 制造商全称 | 900Series |
| 产品子类型 | Connectors | 适配器系列 | Buccaneer 900 |
| 单元数量 | 1 | 连接方式 | 4 |
环境参数
| 防护等级 | IP68 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 85°C |
