点击放大查看
PX0843/A
| 制造商 | Bulgin |
| 描述 | USB Connectors PANEL MT USB A TYPE CONN RCPT IP68 USB A PNL - 5POS USB A Type Chassis Conn & Lead IP68 Cable Assembly PVC 0.132m 5 POS USB F Crimp USB TYPE A, RECEPTACLE, PANEL, LEAD USBBuccaneerFrontPanelMountConnectorIP68typeA Socket; USB A; USB Buccaneer; for panel mounting, rear side nut Appliance plug, USB A to socket, 5-pole 4, PX0843/A, Bulgin Bulgin 电缆组件, USB A 至 压接插座 |
| 分类 |
商业参数
| 产品 | USB Type A Connectors | 产品类别 | USB Connectors |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85366990 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 30 V | 供电电压 | USB 2.0 |
| 最大额定电流 | 1 A | 导体数量 | 4Conductors |
机械参数
| 颜色 | Black | 长度 | 0.49' (150mm) |
| 重量 | 0.02 | 屏蔽 | Shielded |
| 电缆类型 | Round | 端接方式 | Leadwires |
| 电缆长度 | 0.132m | 线缆护套颜色 | Black |
| 第一连接器 | Female USB A | 第二连接器 | Crimp Socket |
| 安装类型 | Straight | 外壳镀层 | Nickel |
| 连接器类型 | Rectangular 5 pos Plug to USB A Male Plug | 接触镀层 | Gold |
| 安装样式 | Panel | 锁定特性 | threaded joint |
| 面板厚度 | max 5.2mm | 触头材料 | Copper Alloy |
| 壳体材料 | Steel | 包装数量 | 25 |
| 主要材料 | Sealed | 连接器 - 电缆 | socket |
| 端接样式 | Crimp | 第二连接器类型 | 5-WayCrimp |
| 连接器颜色 | Black | 配接方向 | ScrewCoupling |
| 触点数 | 5 | 接触件端接 | :Panel Mount |
| 位数 | 4 | 绝缘材料 - 材质 | Nylon6 |
| 第一连接器安装类型 | :Panel | ||
产品信息
| SPG | 25 | USB | USB 2.0 |
| 类型 | USB | 用途 | Industrial Environments - IP68 |
| 连接器性别 | Female | 系列 | Buccaneer |
| 产品特性 | ATypeUSB,EMIProtection | 适配器系列 | USB Buccaneer |
| 端口数 | 1 | 单元数量 | 1 |
环境参数
| NEMA 机架尺寸 | :IP68, IP69K | 防护等级 | IP68 |
| 温度额定值 | 0to+70°C | 工作温度 | 0 C to + 70 C |
文档与媒体
相关型号

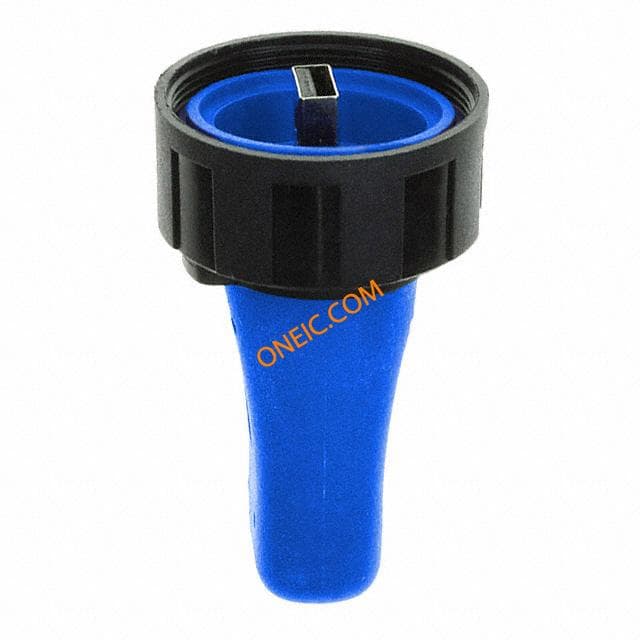

PX0880/1
