点击放大查看
PX0833
| 制造商 | Bulgin |
| 描述 | CONN RCPT 8-8 PNL MNT IP68 COUPLER MODULAR 8POS-8POS IP68 Cat5e RJ45 panel mounted coupler Conn RJ-45 F 8 POS ST Panel Mount 8 Terminal 1 Port Cat 5e SOCKET, BUCCANEER, RECEPTACLE, 8WAYS CAT5E ETHERNET COUPLER, PLUG, 8WAY PANEL Connector;PanelMount;HD-PE;85to90mm;38.1mm;IP68;ShieldedRJ45plug Coupler; RJ45 socket, both sides; Buccaneer Ethernet; PIN:8; 1.5A Appliance plug with RJ45 coupler 8, PX0833, Bulgin Bulgin 直 母 RJ45 连接器 , Cat5e, 屏蔽, 面板安装型 |
| 分类 |
商业参数
| 其他名称 | 708-1009 | 标准包装数量 | 10 |
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 材料阻燃等级 | :UL94V-0 |
电气参数
| 阻抗 | :100ohm | 额定电压 | :30V |
| 极数 | :8 | 工作电压 | :30V |
| 输入电容值 | :1600pF | 最大额定电流 | :1A |
机械参数
| 深度 | 32.95mm | 重量 | 0.05 |
| 屏蔽 | Shielded | 方向 | Straight |
| 外壳样式 | Plastic | 本体尺寸 | Ø38.1 x 33mm |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | :Industrial Ethernet | 接触镀层 | Gold |
| 安装样式 | Flanged | 锁定特性 | threaded joint, external thread |
| 触头材料 | Phosphor Bronze | 壳体材料 | Acrylonitrile Butadiene Styrene (ABS) |
| 包装数量 | 100 | 主要材料 | Ethernet |
| 触点数 | :8 | 接触件端接 | :- |
| 位数 | 8 | 镀层厚度（通用） | 50µm |
| 外壳材料及表面处理 | Polyester | 接触镀层厚度 | 50µin (1.27µm) |
| 触点材料 - 镀层 | gold plated | 外壳与棱镜材料 | polyamide |
| 第一连接器安装类型 | :Panel | ||
产品信息
| SPG | 100 | 类型 | Coupler |
| 连接器性别 | Female | 系列 | :Ethernet Buccaneer |
| 产品特性 | Circular Threaded Coupling | 适配器系列 | Buccaneer Ethernet |
| 单元数量 | 1 | 其他规格 | coupler |
| 应用细节 | Commercial | 转换端（适配器端） | Jack, 8p8c (RJ45) |
| 转换自（适配器端） | Jack, 8p8c (RJ45) | ||
环境参数
| 额定等级 | Cat5e | NEMA 机架尺寸 | :IP68 |
| 防护等级 | IP68 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 70°C |
文档与媒体
相关型号

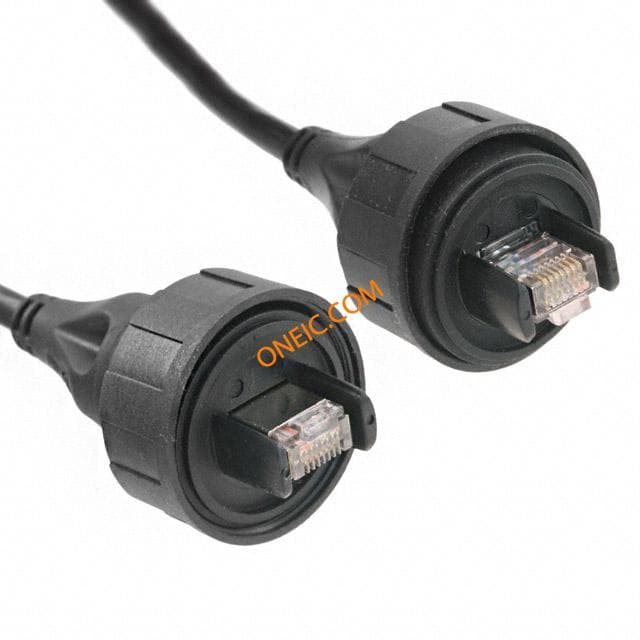

PX0838/3M00
Bulgin
Cable Assemblies IP68 RJ45-IP68 RJ45 CABLE IP68 RJ45 PLUG-PLUG - 3M Buccaneer-Buccaneer patch lead w/conn,3m Ethernet Cables / Networking Cables IP68 RJ45-IP68 RJ45 Cable Assembly Patch Cord 3m 24AWG 8 POS RJ-45 to 8 POS RJ-45 PL-PL PATCH LEAD, 2X BUCCANEER, 3M PatchCord;3m;S-FTP;NonBooted;ExceedsEIA/TIACat5e Bulgin 3m 黑色 PUR护套 S/FTP屏蔽 5e类网线组件

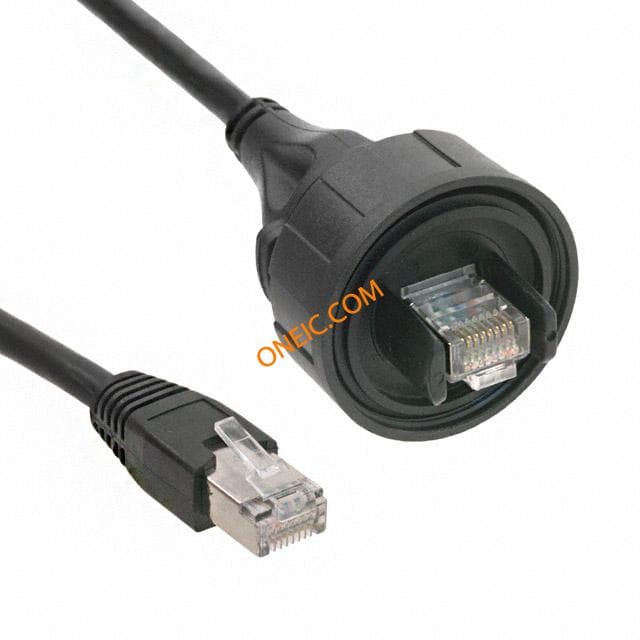

PX0837/5M00
Bulgin
Cable Assemblies IP68 RJ45-SH RJ45 5M CABLE PLUG IP68 RJ45-RJ45 - 5M Buccaneer-RJ45 patch lead w/IP68 conn,5m Ethernet Cables / Networking Cables IP68 RJ45-SH RJ45 5M Cable Assembly Patch Cord 5m 24AWG 8 POS RJ-45 to 8 POS RJ-45 PL-PL PATCH LEAD, 1X BUCCANEER, 5M Connector;SingleEnded;S-FTP;HD-PE;5m;38.1mm;-25todegC;IP68 Cable assembly with 5 m of PUR cable 8, PX0837/5M00, Bulgin Bulgin 5m 黑色 PUR护套 S/FTP屏蔽 5e类网线组件
PX0838/5M00
Bulgin
Cable Assemblies IP68 RJ45-IP68 RJ45 CABLE IP68 RJ45 PLUG-PLUG - 5M Buccaneer-Buccaneer patch lead w/conn,5m Ethernet Cables / Networking Cables IP68 RJ45-IP68 RJ45 Cable Assembly Patch Cord 5m 24AWG 8 POS RJ-45 to 8 POS RJ-45 PL-PL PATCH LEAD, 2X BUCCANEER, 5M Connector;DoubleEnded;S-FTP;HD-PE;5m;38.1mm;-25todegC;IP68 Patch cord; 5m; RJ45 plug, both sides; Buccaneer Ethernet; PIN:8 Bulgin 5m 黑色 PUR护套 S/FTP屏蔽 5e类网线组件
PX0837/2M00
Bulgin
Cable Assemblies IP68 RJ45-SH RJ45 2M CABLE PLUG IP68 RJ45-RJ45 - 2M Buccaneer-RJ45 patch lead w/IP68 conn,2m Ethernet Cables / Networking Cables IP68 RJ45-SH RJ45 2M Connector;SingleEnded;S-FTP;HD-PE;2m;38.1mm;-25todegC;IP68 Patch cord; 2m; RJ45 plug, both sides; PIN:8; Pin layout:8p8c Cable assembly with 2 m of PUR cable 8, PX0837/2M00, Bulgin Bulgin 2m 黑色 PUR护套 S/FTP屏蔽 5e类网线组件

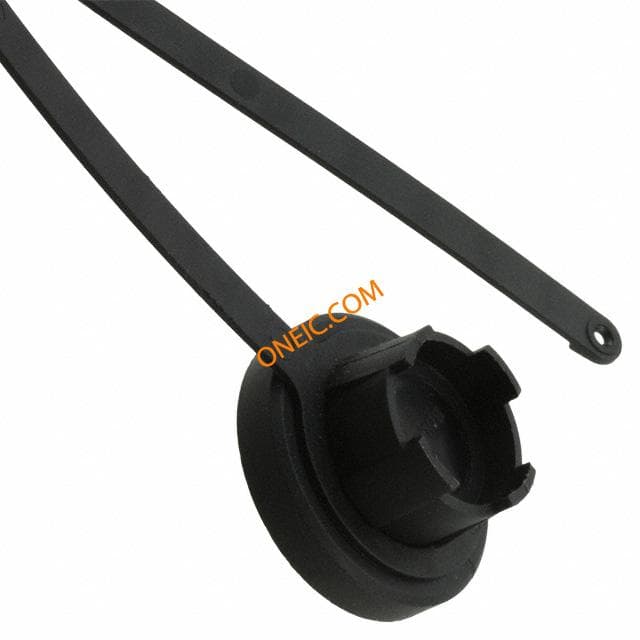

PX0733
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR W/ALL OTHER Sealing cap for chassis connector Connector Accessories USB Sealing Cap SEALING CAP, FOR PX0847 CONNECTOR Cap,Sealing;Fitspanelmountandflex-in-lineconnector;Buccaneer Protection cover; Buccaneer Standard; IP68; internal thread Protective cap, PX0733, Bulgin Bulgin 插座 IP68 防尘盖
PX0834/B
Bulgin
Modular Connectors / Ethernet Connectors CAT 5E SHIELDED PLUG CONN MOD PLUG 8P8C SHIELDED Buccaneer IP68Cat5e RJ45 cable connector Conn RJ-45 M 8 POS ST Cable Mount 1 Port Cat 5e SEALED ETHERNET, PLUG, RJ45, 8WAY, CABLE CAT5E ETHERNET COUPLER, PLUG, 8WAY CABLE Connector;RJ-45;77.5mm;38.1mm;Cablesfrom3.5to8mmDia. Plug; RJ45; Buccaneer Ethernet; PIN:8; Contacts: phosphor bronze Cable socket with RJ45 plug 8, PX0834/B, Bulgin Bulgin 直 公 RJ45 连接器 , Cat5e, 屏蔽, 电缆安装型

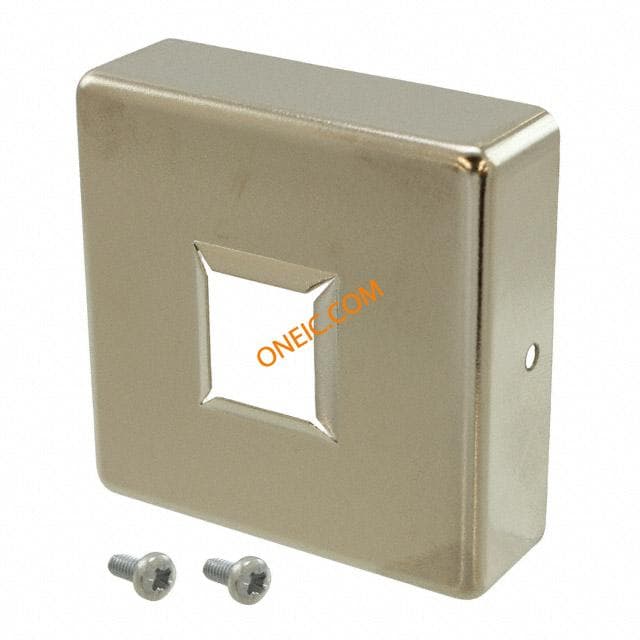

PX0888
Bulgin
BACKSHELL SHIELD USE W/PX0833 CONN ACCY BACKSHELL SILVER ACCESSORY; SHIELDING BACK SHELL FOR PX0833 Modular Connectors / Ethernet Connectors SHEILDING BACK SHELL FOR PX0833 CONNECTOR Connector Accessories Shielding Backshell ACCESSORY,SHIELDINGBACKSHELLFORPX0833
PX0833
Bulgin
CONN RCPT 8-8 PNL MNT IP68 COUPLER MODULAR 8POS-8POS IP68 Cat5e RJ45 panel mounted coupler Conn RJ-45 F 8 POS ST Panel Mount 8 Terminal 1 Port Cat 5e SOCKET, BUCCANEER, RECEPTACLE, 8WAYS CAT5E ETHERNET COUPLER, PLUG, 8WAY PANEL Connector;PanelMount;HD-PE;85to90mm;38.1mm;IP68;ShieldedRJ45plug Coupler; RJ45 socket, both sides; Buccaneer Ethernet; PIN:8; 1.5A Appliance plug with RJ45 coupler 8, PX0833, Bulgin Bulgin 直 母 RJ45 连接器 , Cat5e, 屏蔽, 面板安装型

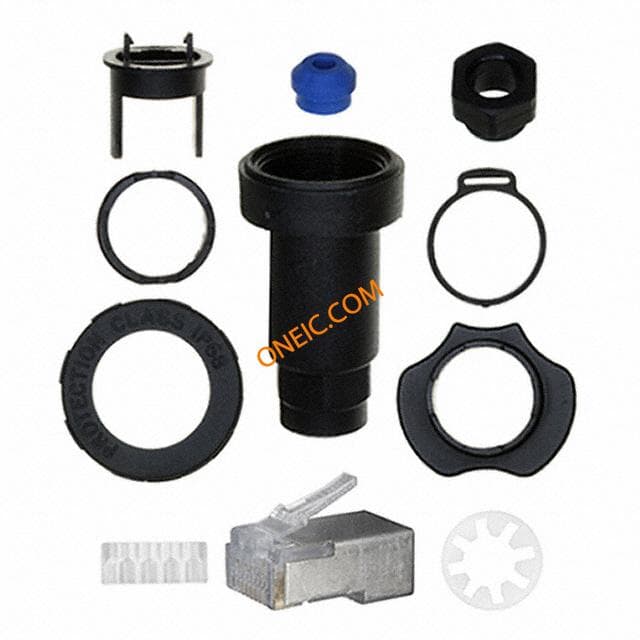

PX0834/A
Bulgin
CONN MOD PLUG 8P8C SHIELDED Modular Connectors / Ethernet Connectors CAT 5E SHIELDED PLUG Conn RJ-45 M 8 POS ST Cable Mount 1 Port Cat 5e EthernetBuccaneerRe-WireableFlexConnector Bulgin PX0 系列 8路 电缆安装 直向 RJ45 现场连接器 插头 , 公触点, 快速连接接合

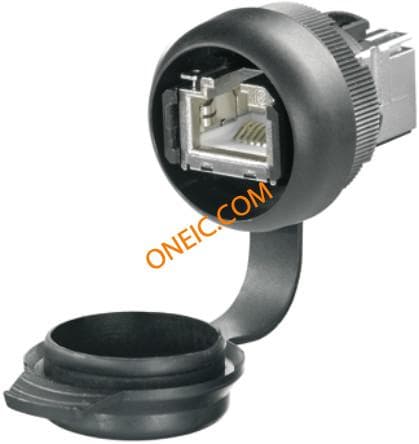

1018790000
Weidmuller
COUPLER MODULAR 8POS-8POS Front com IP65 socket RJ45 coupler JACK, RJ45, CAT6A, COUPLING, PANEL, IP65

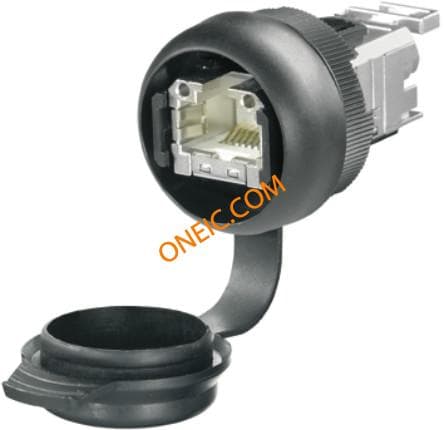

1018810000
