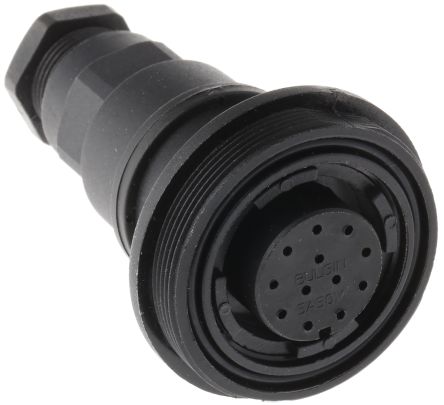

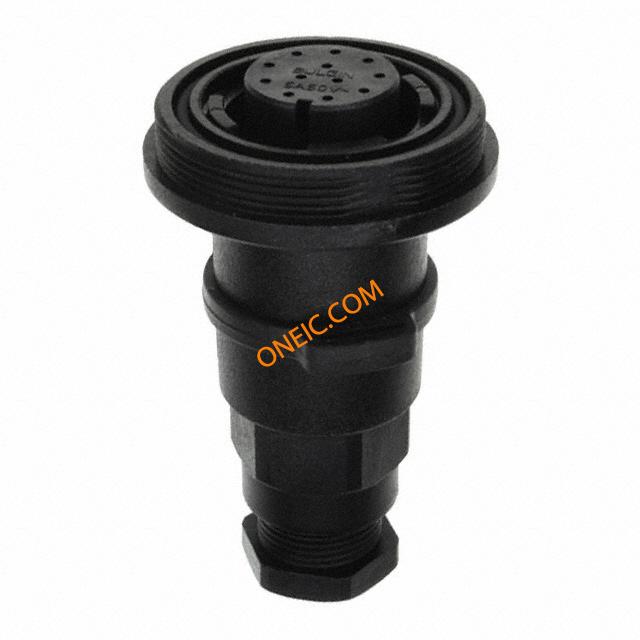

PX0795/S
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 12 POLE IN-LINE SKT CRIMP/SOLDER CONN HSNG RCPT 12POS INLINE SKT 12 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 12 POS Crimp/Solder ST Cable Mount 12 Terminal 1 Port SOCKET, INLINE, 12WAY Connector,CircularIP68;12;Crimp/Solder;5A;50VAC/VDC;lt5Milliohms Bulgin Buccaneer 系列 12路 电缆安装 直向 连接器 , 母触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85366990 |
| 认证机构 | :CSA, UL, VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 50 V ac/dc | 工作电压 | :50V |
| 接触电阻 | :5mohm | 最大额定电流 | 5A |
| 绝缘电阻 | :100Mohm | ||
机械参数
| 重量 | 0.02006 | 包装方式 | Bulk |
| 导线线规 | 22-26 | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Crimp, Solder |
| 触头类型 | Crimp and Solder Cup | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 电缆直径 | 6-8mm |
| 连接器类型 | Receptacle for Female Contacts | 接触镀层 | Gold over Nickel |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 插入角度 | :- | 本体材料 | :Nylon (Polyamide) |
| 触头材料 | Copper Alloy | 壳体材料 | GlassFilledPolyamide |
| 主要材料 | Sealed | 端接样式 | Crimp / Solder |
| 第一触头极性 | Female | 连接器颜色 | :Black |
| 触点数 | 12 | 介电材料 | Polyamide |
| 位数 | 12 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Polyamide, Glass Filled | 第一连接器安装类型 | :Cable |
| 外径-未扩张 | :8.1mm | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CableSocket |
| 连接器性别 | :Socket | 系列 | Buccaneer |
| 产品子类型 | Connectors | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | +70°C | ||
