点击放大查看

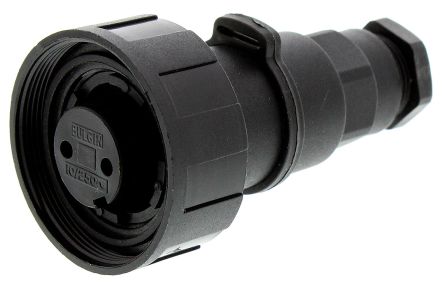

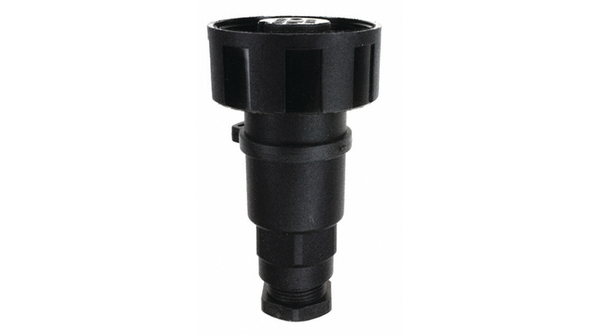

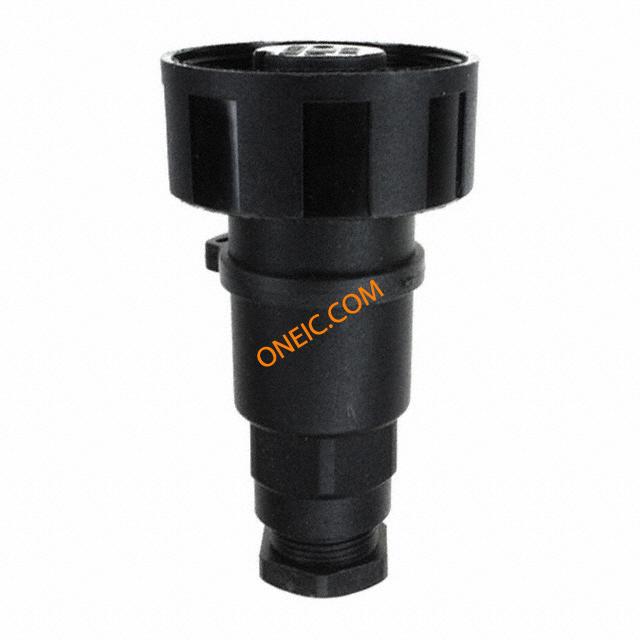

PX0736/S
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 2 POLE FLEX SOCKET CONN PLUG 2POS CABLE SKT 2 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 2 POS Screw ST Cable Mount 2 Terminal 1 Port CIRCULAR CONNECTOR, RCPT, 2 WAY, CABLE Connector,StandardBuccaneer;Socket;2;69.0mm;38.1mm;3.5to9mm;10A Cable socket Buccaneer, 2-pin 2, PX0736/S, Bulgin Bulgin Buccaneer 系列 2路 电缆安装 直向 连接器 插座 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 277VAC/DC | 最大额定电流 | 12A |
机械参数
| 重量 | 0.032 | 包装方式 | Bulk |
| 导线线规 | 12 | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Screw |
| 触头类型 | Socket | 安装类型 | Free Hanging (In-Line) |
| 外壳镀层 | Nickel | 行程角度 | Straight |
| 电缆直径 | 6-8mm | 连接器类型 | Plug, Female Sockets |
| 接触镀层 | Nickel | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 插入角度 | :- |
| 本体材料 | :Glass Filled Nylon (Polyamide) | 触头材料 | Brass |
| 壳体材料 | GlassFilledPolyamide | 主要材料 | Sealed |
| 端接样式 | Screw | 第一触头极性 | Female |
| 连接器颜色 | :Black | 配接方向 | Threaded |
| 触点数 | 2 | 接触件端接 | :Screw |
| 介电材料 | Polyamide | 位数 | 2 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide, Glass Filled |
| 第一连接器安装类型 | :Cable | 外径-未扩张 | :8mm |
产品信息
| 类型 | CableSocket | 连接器性别 | :Receptacle |
| 系列 | Buccaneer | 产品特性 | ScrewLocking |
| 产品子类型 | Connectors | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | -20°C ~ 70°C | ||
文档与媒体
相关型号
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK
PX0757/P
Bulgin
Standard Circular Connector 2 POLE FLANGE PLG BULKHEAD CONN RCPT 2POS PNL MNT PIN Conn Buccaneer PIN 2 POS Screw ST Flange Mount 2 Terminal 1 Port

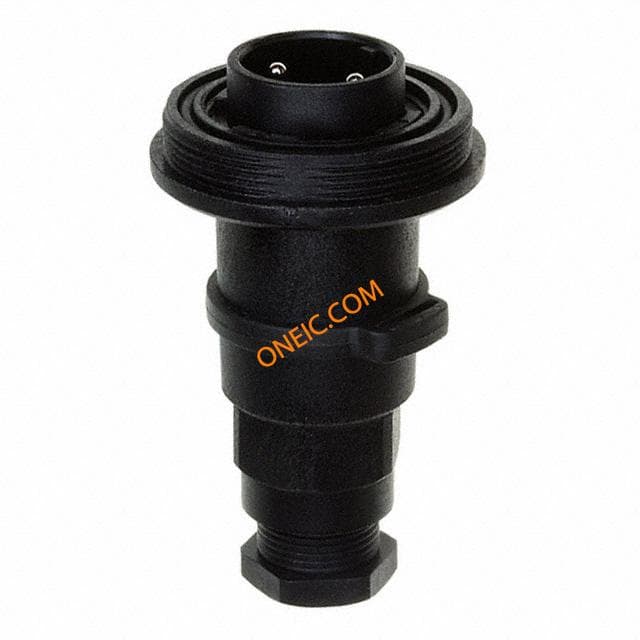

PX0737/P
Bulgin
Standard Circular Connector 2 POLE IN-LINE PLUG CONN RCPT 2POS INLINE PIN 2 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 2 POS Screw ST Cable Mount 2 Terminal 1 Port PLUG, SEALED, INLINE, 2WAY CableConnector,In-Line;2;Plug;6to8mmDia;In-LineFlex;Screw;10A Bulgin Buccaneer 系列 2路 电缆安装 直向 连接器 插头

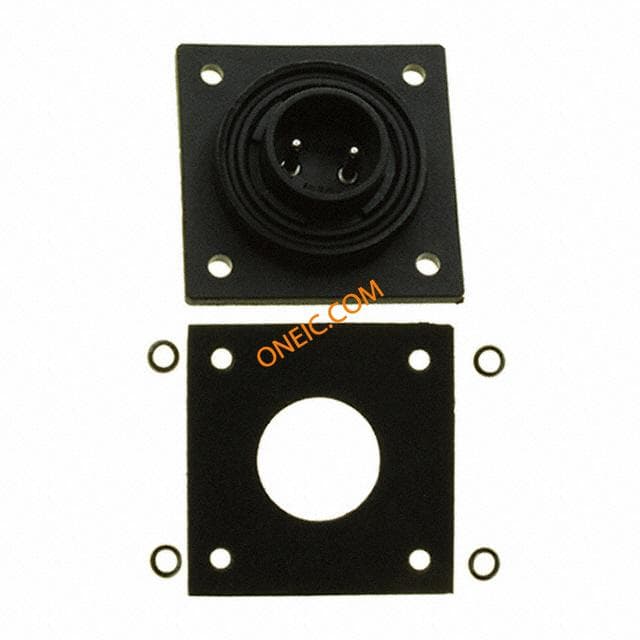

PX0764/P
