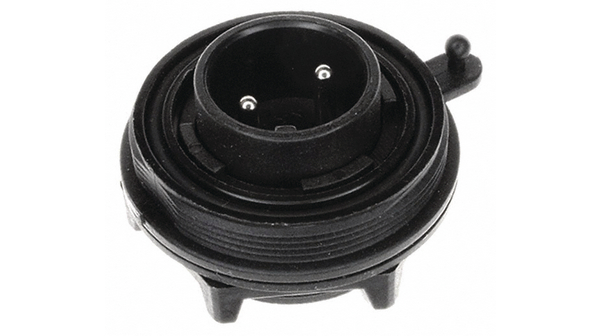

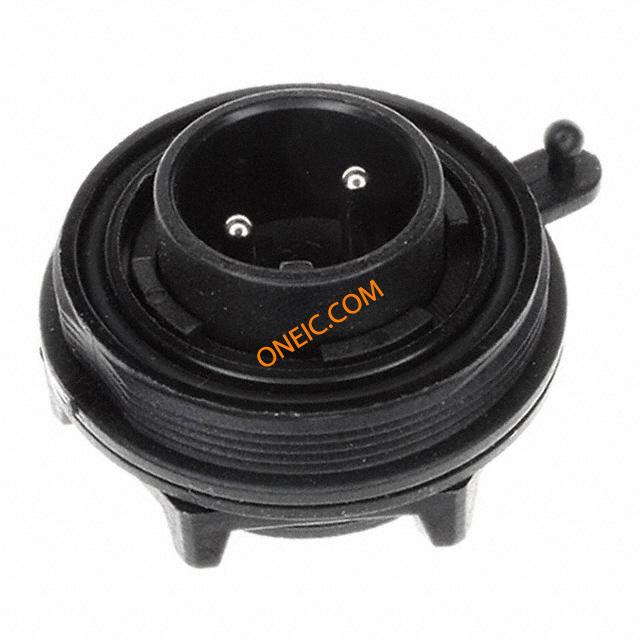

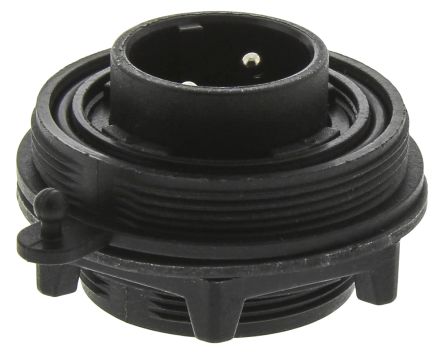

PX0735/P

制造商	Bulgin
描述	Standard Circular Connector 2 POLE CHAS MT PLUG CONN RCPT 2POS PNL MNT PIN 2 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 2 POS Screw ST Panel Mount 2 Terminal 1 Port CIRCULAR CONNECTOR, PLUG, 2 WAY, PANEL Connector;Pin;2;12AWG;Screw;10A;250V;10Milliohms(Max.);Panel Panel-mount male receptacle, 2-pin 2, PX0735/P, Bulgin Bulgin Buccaneer 系列 2路面板安装直向连接器 , 公触点
分类	连接器解决方案圆形连接器工业圆形连接器（扩展）

对参数有疑问？问 AI 助手

商业参数

产品类别	Standard Circular Connector	标准包装数量	25
工厂包装数量	25

合规参数

RoHS	Compliant	SVHC	:No SVHC (19-Dec-2012)
海关税号	85369010	认证机构	ULRecognized/CSA/VDE
材料阻燃等级	UL94-HB

电气参数

额定电压

277VAC/DC

最大额定电流

12A

机械参数

重量	0.018	包装方式	Bulk
导线线规	12	方向	Keyed
外壳样式	Plug	端接方式	Screw
触头类型	Pin	安装类型	Panel Mount
外壳镀层	Nickel	行程角度	Straight
电缆直径	6-8mm	连接器类型	Receptacle, Male Pins
接触镀层	Nickel	紧固类型	Threaded
安装样式	Panel	插入角度	:-
本体材料	:Glass Filled Nylon (Polyamide)	触头材料	Brass
壳体材料	GlassFilledPolyamide	主要材料	Sealed
端接样式	Screw	第一触头极性	Male
连接器颜色	:Black	配接方向	Threaded
触点数	2	接触件端接	:Screw
介电材料	Polyamide	位数	2
外壳尺寸-插件	:-	外壳材料及表面处理	Polyamide, Glass Filled
第一连接器安装类型	:Panel	外径-未扩张	:8mm

产品信息

类型	PanelPlug	连接器性别	:Plug
系列	Buccaneer	产品子类型	Connectors

环境参数

NEMA 机架尺寸	:IP68	防护等级	IP68/69K - Dust Tight, Waterproof
工作温度	-20°C ~ 70°C

文档与媒体

PDF 文档

Standard Power Buccaneer

PDF 文档

1707461.pdf

PDF 文档

Buccaneer-2010_standard.pdf
