点击放大查看

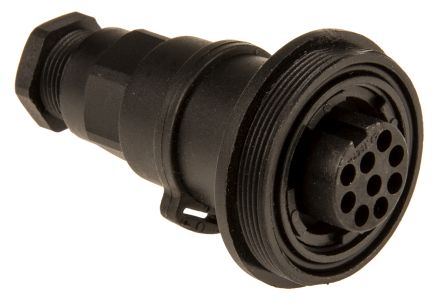

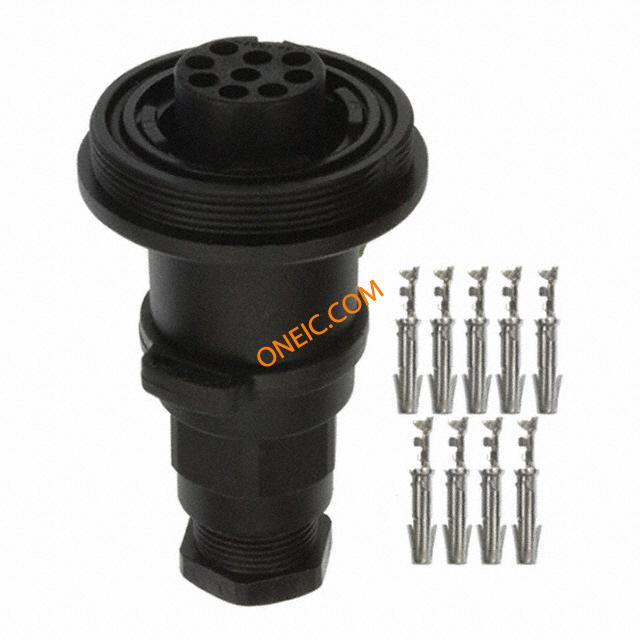

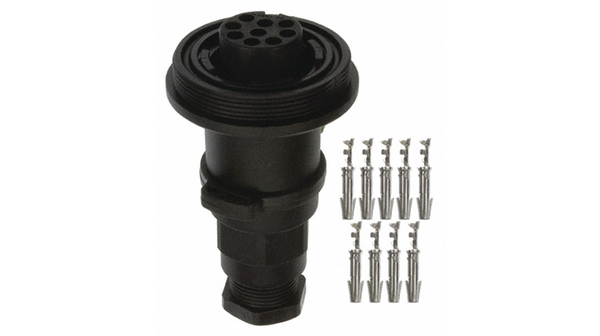

PX0729/S
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 9 POLE IN-LINE SKT CRIMP CONN RCPT 9POS PNL MNT SKT 9 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 9 POS Crimp ST Cable Mount 9 Terminal 1 Port CableConnector,In-Line;9;Socket;6to8mmDia;In-LineFlex;Crimp;5A Connector: circular; plug; female; PIN:9; Buccaneer Standard; IP68 Coupling bushing Buccaneer, 9-pin 9, PX0729/S, Bulgin Bulgin Buccaneer 系列 9路 电缆安装 直向 连接器 , 母触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | UL94-HB | ||
电气参数
| 额定电压 | 150VAC/DC | 极数 | 9 |
| 最大额定电流 | 5A | 额定电流 - 设备输入口 | 5 |
| 保护电压（VP）（2416） | IP 68 | ||
机械参数
| 重量 | 0.03 kg | 包装方式 | Bulk |
| 导线线规 | 24-26 | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Crimp |
| 触头类型 | Socket | 基体材料 | polyamide |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 电缆直径 | 6-8mm | 电缆端类型 | 6...8 mm |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Tin |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 连接器样式 | straight | 锁定特性 | threaded joint, external thread |
| 触头材料 | Copper Alloy | 壳体材料 | GlassFilledPolyamide |
| 包装数量 | 25 | 主要材料 | Sealed |
| 端接排数 | 压接 | 连接器 - 电缆 | plug |
| 端接样式 | Crimp | 第一触头极性 | Female |
| 触点数 | 9 | 介电材料 | Polyamide |
| 位数 | 9 | 第一连接器极性 | Female |
| 外壳材料及表面处理 | Polyamide, Glass Filled | ||
产品信息
| SPG | 25 | 类型 | CableSocket |
| 系列 | Buccaneer | 产品子类型 | Connectors |
| 适配器系列 | Buccaneer Standard | 单元数量 | 1 |
| 连接方式 | 0.14...0.2 | 输出配置 | Free Hanging (In-Line) |
环境参数
| 防护等级 | IP68/69K - Dust Tight, Waterproof | 工作温度 | -20°C ~ 70°C |
