.JPG)
点击放大查看

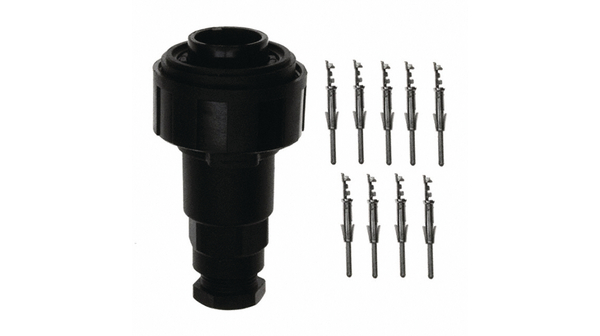

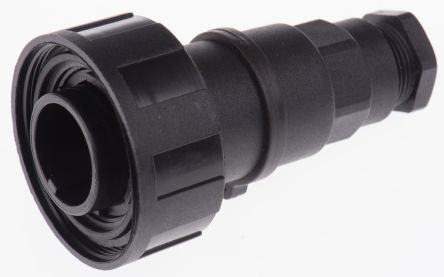

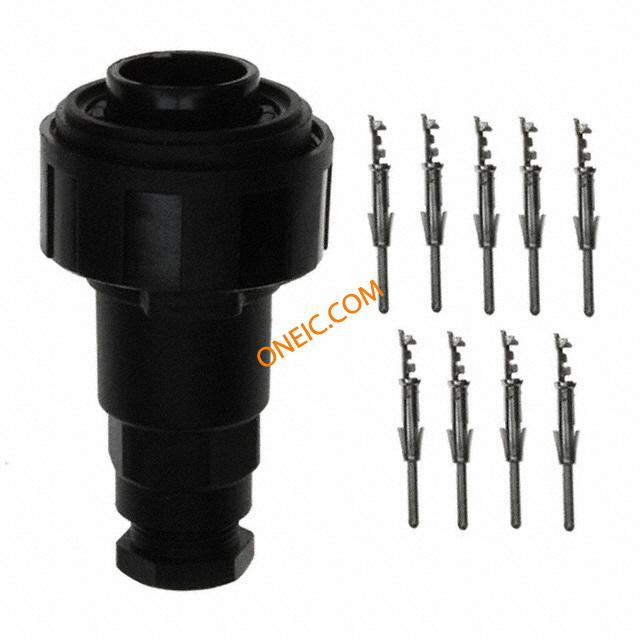

PX0728/P
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 9 POLE FLEX PLUG CONN PLUG 9POS CABLE PIN 9 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 9 POS Crimp ST Cable Mount 9 Terminal 1 Port PLUG, SEALED FREE, 9WAY CONN PLUG 9POS INLINE PIN Connector,StandardBuccaneer;Pin;9;69.0mm;38.1mm;3.5to9mm;5A Connector: circular; plug; male; PIN:9; Buccaneer Standard; IP68 Cable plug Buccaneer, 9-pin 9, PX0728/P, Bulgin Bulgin Buccaneer 系列 9路 电缆安装 直向 连接器 , 公触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | ULRecognized/CSA/VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 150VAC/DC | 工作电压 | :150V |
| 接触电阻 | :10mohm | 最大额定电流 | 5A |
| 绝缘电阻 | :100Mohm | ||
机械参数
| 长度 | :65mm | 重量 | 0.036 |
| 材料（通用） | :Black nylon | 包装方式 | Bulk |
| 导线线规 | :25AWG | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 触头类型 | Pin | 基体材料 | polyamide |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Tin |
| 行程角度 | Straight | 电缆直径 | 6-8mm |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Tin |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 插入角度 | :- | 锁定特性 | threaded joint, internal thread |
| 本体材料 | :Glass Filled Nylon (Polyamide) | 触头材料 | Copper Alloy |
| 壳体材料 | GlassFilledPolyamide | 包装数量 | 25 |
| 主要材料 | Sealed | 连接器 - 电缆 | plug |
| 端接样式 | Crimp | 第一触头极性 | Male |
| 连接器颜色 | :Black | 外径 | :38.1mm |
| 配接方向 | Threaded | 触点数 | 9 |
| 接触件端接 | :Crimp | 介电材料 | Polyamide |
| 位数 | 9 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Polyamide, Glass Filled | 线规或范围 - AWG | :24AWG |
| 第一连接器安装类型 | :Cable | 外径-未扩张 | :8.1mm |
产品信息
| SPG | 25 | 类型 | CablePlug |
| 连接器性别 | :Plug | 系列 | Buccaneer |
| 产品特性 | ScrewLocking | 产品子类型 | Connectors |
| 适配器系列 | Buccaneer Standard | 单元数量 | 1 |
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | -20°C ~ 70°C | ||
文档与媒体
相关型号
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK
13826
Bulgin
Crimpers CRIMP TOOL 9 WAY TOOL HAND 9POS CRIMP Tool; Crimp; 9; Inserting and Extracting 25 Way Contacts Crimp Tools For 3, 9,12 And 25 Pole Crimp Contacts Tool,Crimp;9;InsertingandExtracting25WayContacts Bulgin Standard Buccaneer 系列 9 触点 压接工具 压接工具
PX0727/S
Bulgin
Standard Circular Connector 9 POLE CHAS MT SKT CONN RCPT 9POS PNL MNT SKT 9 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 9 POS Crimp ST Panel Mount 9 Terminal 1 Port SOCKET, SEALED PANEL, 9WAY Connector;Socket;9;24to26AWG;CrimpContacts;5A;150V;-20todegC Connector: circular; socket; female; PIN:9; Buccaneer Standard Device bushing Buccaneer, 9-pin 9, PX0727/S, Bulgin Bulgin Buccaneer 系列 9路 面板安装 直向 连接器 插座

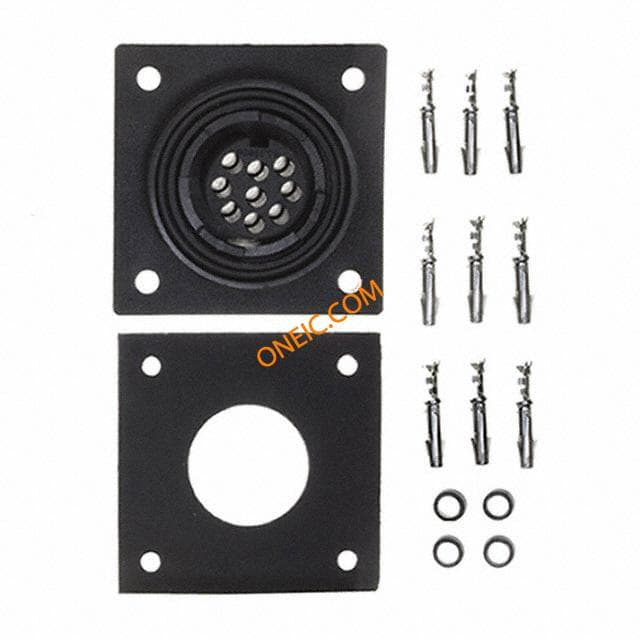

PX0769/S
