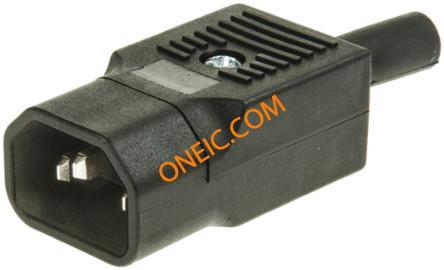

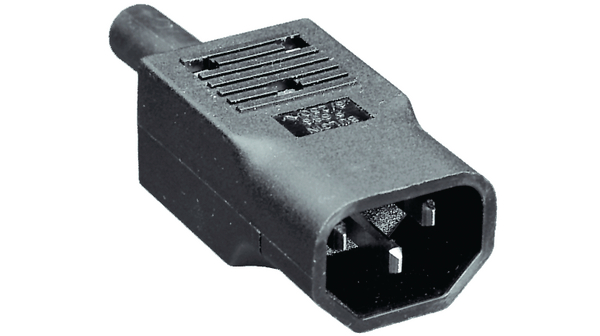

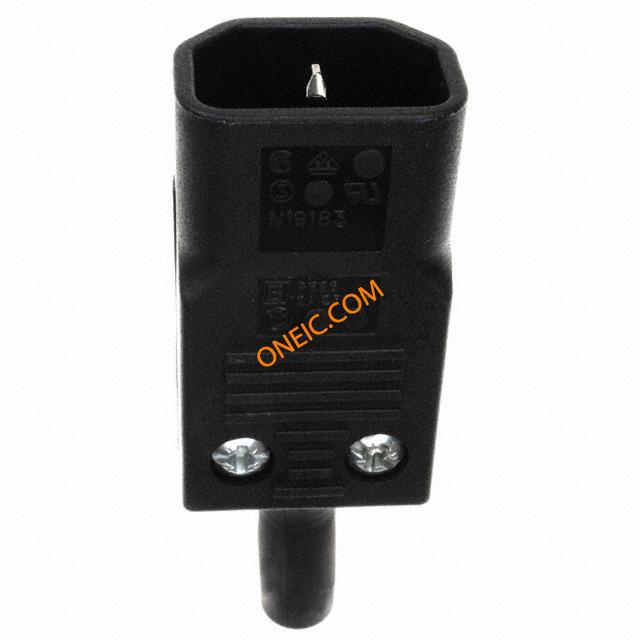

PX0686
| 制造商 | |
| 描述 | CONN AC PLUG STR MALE C14 Male Straight Cable Mount IEC Connector, Screw Down Termination, Rated At 10A, 250V ac Blk re-wireable straight plug,10A 250Vac AC Power Entry Modules AC POWER PLUG Conn Power M 3 POS Screw ST Cable Mount 3 Terminal 1 Port PLUG, IEC C14, STRAIGHT, FREE Blkre-wireablestraightplug,10A250Vac Connector: IEC 60320,AC mains; C14 (E); plug; male; Mat: polyamide Cable device plug, C14 black, PX0686, Bulgin Bulgin C14 电缆安装 直向 插头 IEC 插头, 螺钉拧紧端接, 额定10A, 250 V 交流 |
| 分类 |
商业参数
| 产品 | Inlets | 其他名称 | 708-1352 |
| 产品类别 | AC Power Entry Modules | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | :CSA, IMQ, SEMKO, UL, VDE |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 10A | 电压 | 250V |
| 滤波器类型 | No | 额定电压 | 250 V ac |
| 开关功能 | Not Switched | 最大额定电流 | 10A |
| 连接器类型 - 电压输入 | C14 (E) | ||
机械参数
| 深度 | :78.6mm | 宽度 | :29mm |
| 长度 | :22.6mm | 重量 | 0.03 |
| 交流输出口 | :1 | 方向 | straight |
| 端接方式 | Screw Down | 基体材料 | polyamide |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Nickel | 安装样式 | Cable |
| 连接器样式 | IEC 320-C14 | 保险丝座类型 | Drawer Not Required |
| 壳体材料 | Nylon | 包装数量 | 20 |
| 连接器 - 电缆 | C14 | 端接样式 | Screw |
| 接触件端接 | :Screw | 位数 | 3 |
| 外壳与棱镜材料 | :Nylon | 第一连接器安装类型 | :Cable |
| 外径-未扩张 | :7.6mm | ||
产品信息
| SPG | 20 | 带保险丝 | No |
| 连接器性别 | Male | 系列 | :- |
| 保险丝类型 | :10A | 单元数量 | 1 |
环境参数
| 工作温度 | - 40 C to + 70 C | ||
