PX0587
| 制造商 | |
| 描述 | CONN AC PLUG STR FEMALE C13 Female Straight Cable Mount IEC Connector, Screw Down Termination, Rated At 10A, 250V ac Black rewireable straight skt,10A 240Vac AC Power Entry Modules AC POWER SOCKET Conn Power F 3 POS Screw ST Cable Mount 3 Terminal 1 Port SOCKET, IEC, FREE, 10A Blackrewireablestraightskt,10A240Vac Connector: IEC 60320,AC mains; C13 (F); plug; female; for cable Cable device socket C13 black, PX0587, Bulgin Bulgin C13 电缆安装 直向 插座 IEC 插头, 螺钉拧紧端接, 额定10A, 250 V 交流 |
| 分类 |
商业参数
| 产品 | Inlets | 其他名称 | 708-1342 |
| 产品类别 | AC Power Entry Modules | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | :BS, CSA, EN 60320, IMQ, SEMKO, UL, VDE | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 10A | 电压 | 250V |
| 滤波器类型 | No | 额定电压 | 250 V ac |
| 开关功能 | Not Switched | 最大额定电流 | 10A |
| 最小供电电压 | 250VAC | 连接器类型 - 电压输入 | C13 (F) |
机械参数
| 深度 | 79 mm | 宽度 | :26.4mm |
| 高度 | 18.4 mm | 长度 | :18.4mm |
| 重量 | 0.006 | 交流输出口 | :1 |
| 方向 | straight | 端接方式 | Screw Down |
| 基体材料 | polyamide | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug, Female Sockets | 安装样式 | Cable |
| 连接器样式 | IEC 320-C13 | 保险丝座类型 | Drawer Not Required |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 总长度 | 26.4 mm | 包装数量 | 200 |
| 连接器 - 电缆 | C13 | 端接样式 | Screw |
| 连接器颜色 | :Black | 触点数 | 3 POS |
| 接触件端接 | :Screw | 位数 | 3 |
| 外壳与棱镜材料 | :Nylon | 第一连接器安装类型 | :Cable |
产品信息
| SPG | 200 | 类型 | Power |
| 带保险丝 | No | 连接器性别 | Female |
| 系列 | :- | 端口数 | 1 Port |
| 单元数量 | 1 | ||
环境参数
| 工作温度 | - 40 C to + 70 C | 结工作温度 | 70C |
文档与媒体
相关型号

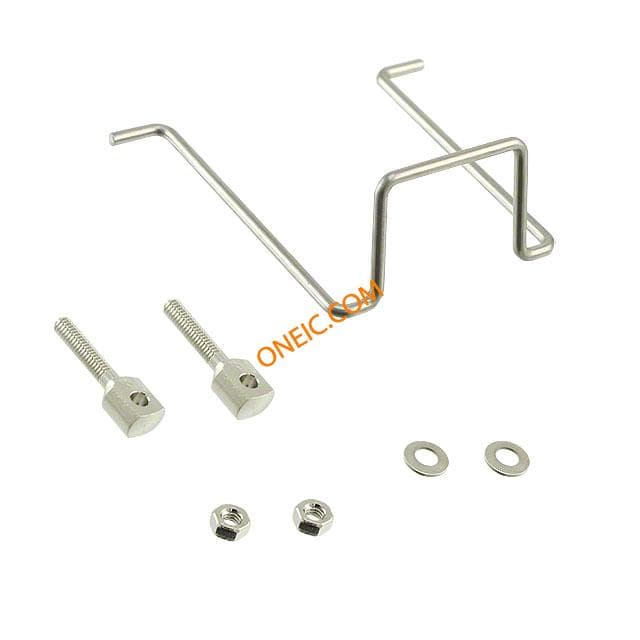

KT0012
Bulgin
Cable Mounting & Accessories RETAINER CLIP ASMBL CLIP RETAINER FOR POWER PLUG Connector Accessories Retaining Clip Stainless Steel RETAINING CLIP, C19/C20 Spring clip; Application: PX0596,PX0599 Circlip, 49 mm, KT0012, Bulgin Bulgin IEC 连接器

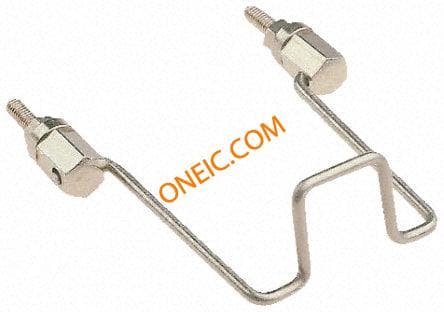

KT0009
Bulgin
Cable Mounting & Accessories RETAINER CLIP ASMBL IEC RETAINING CLIP IEC connector retaining clamp kit,KT0009 Connector Accessories Retaining Clip Stainless Steel RETAINING CLIP, IEC CONN Spring clip; Application: PF0001,PF0030,PX0587 Bulgin 固定夹 固定夹

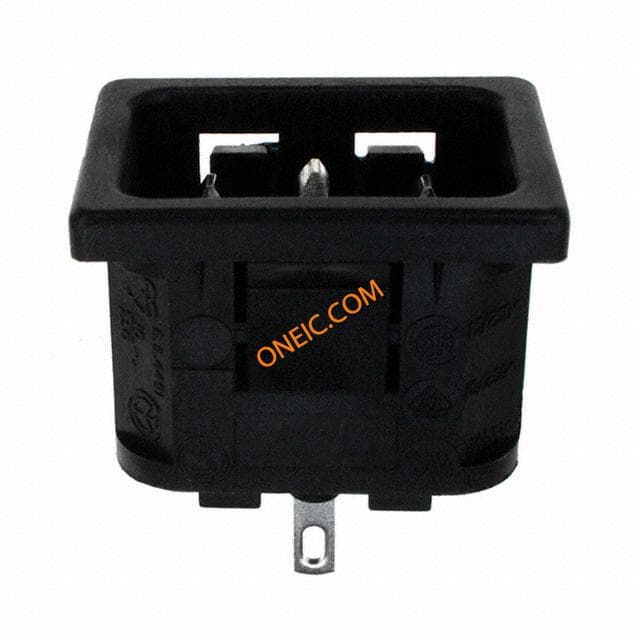

PX0575/15/28
Bulgin
CONN AC RECEPT 2.8MM SLD SNAP IN AC Power Entry Modules SNAP-IN 1.5MM PNL TB Conn Inlets M 3 POS Solder Lug ST Panel Mount 3 Terminal 1 Port INLET, IEC, SNAP-FIT

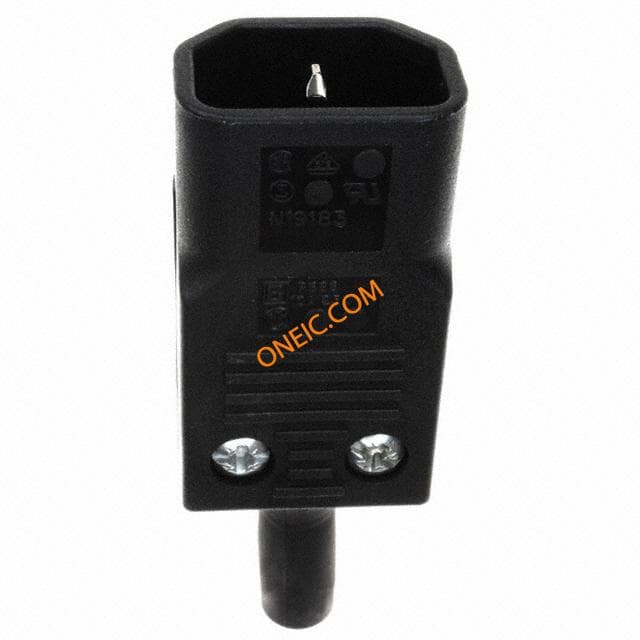

PX0686
Bulgin
CONN AC PLUG STR MALE C14 Male Straight Cable Mount IEC Connector, Screw Down Termination, Rated At 10A, 250V ac Blk re-wireable straight plug,10A 250Vac AC Power Entry Modules AC POWER PLUG Conn Power M 3 POS Screw ST Cable Mount 3 Terminal 1 Port PLUG, IEC C14, STRAIGHT, FREE Blkre-wireablestraightplug,10A250Vac Connector: IEC 60320,AC mains; C14 (E); plug; male; Mat: polyamide Cable device plug, C14 black, PX0686, Bulgin Bulgin C14 电缆安装 直向 插头 IEC 插头, 螺钉拧紧端接, 额定10A, 250 V 交流

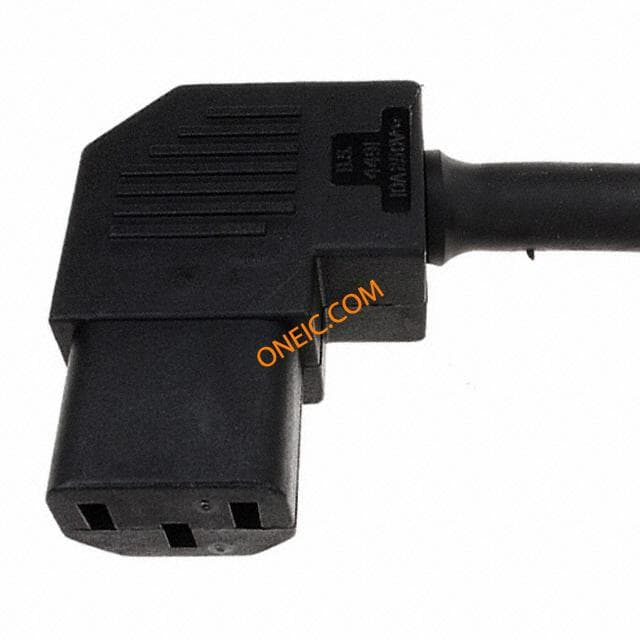

PX0587/SE
