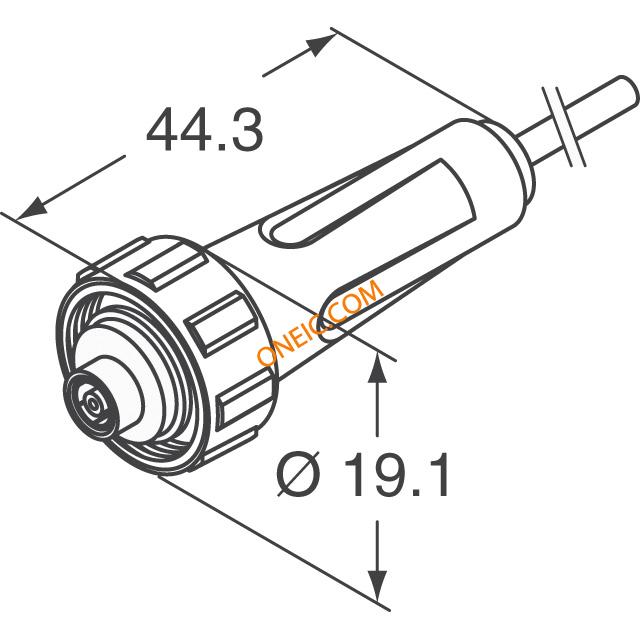

点击放大查看
PX0416/5M00
| 制造商 | |
| 描述 | RF Connectors PRE-WIRED FLEX CONN WITH SMB PLUG 5M CONN SMB PLUG - RG-174 5M SMB IP68 plug + 5m RG174 cable RF Connectors / Coaxial Connectors PRE-WIRED FLEX CONN WITH SMB PLUG 5M Cable Assembly Coaxial 5m SMB PL CABLE, PLUG SMB, 5M CircularCableConnector;5m;-20to80degC;ULListed Bulgin 电缆安装 SMB 连接器, 插头, 预接线端接, RG174 |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | 708-1271 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | 10 |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | :UL | 材料阻燃等级 | :UL94V-0 |
电气参数
| 阻抗 | 50 Ohm | 最大频率 | 4GHz |
| 接触电阻 | :6mohm | 绝缘电阻 | 1000 MOhms |
| 阻抗 - 不平衡/平衡 | :RG174 | ||
机械参数
| 颜色 | Black | 长度 | 196.8" (5.0m) 16.4' |
| 重量 | 0.082 | 材料（通用） | PX0414Connector |
| 电缆类型 | RG-174 | 本体表面处理 | Gold |
| 电缆组 | :Audio, Video | 外壳样式 | Plastic |
| 电缆长度 | :16.4ft | 触头类型 | Pin |
| 线缆护套颜色 | :Black | 第一连接器 | SMB Plug Female Socket |
| 第二连接器 | Cable (Round) | 基体材料 | Brass |
| 行程角度 | Straight | 连接器类型 | :SMB Plug, 50ohm |
| 接触镀层 | Gold | 触头材料 | Brass |
| 主要材料 | Sealed | 端接样式 | Crimp |
| 外径 | :19mm | 引线长度 | :5000mm |
| 配接方向 | Threaded | 介电材料 | Teflon |
产品信息
| 类型 | CablePlug | 样式 | SMB to Cable |
| 连接器性别 | Female to Cable | 系列 | :Buccaneer |
| 产品特性 | Shielded | 射频系列/标准 | SMB |
环境参数
| 防护等级 | IP68 | 工作温度 | -20°C ~ 80°C |
文档与媒体
相关型号
PX0480
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEAL FOR PX0412/PX0414 Buccaneer 400 chassis mount sealing cap SEALING CAP, CHASSIS SealingCap,Connector;Panelmountingconnector;400Series Protection cover; threaded joint, internal thread; IP68 Protective cap for appliance plugs/sockets, PX0480, Bulgin

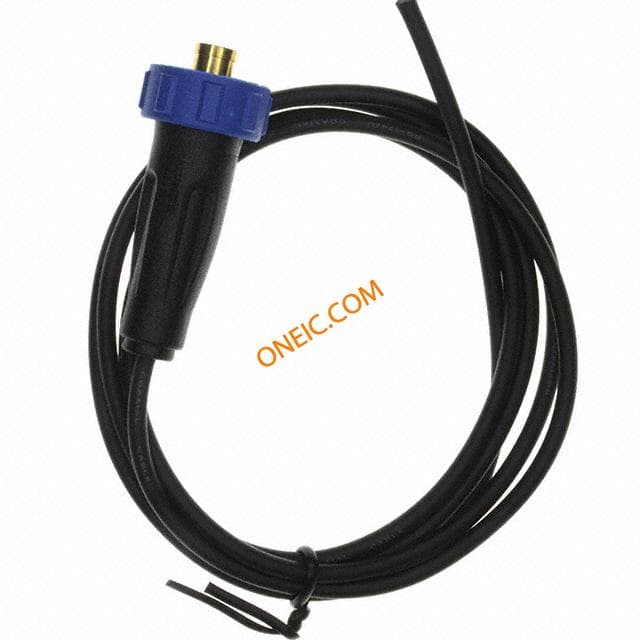

PX0416/1M00
Bulgin
RF Connectors PRE-WIRED FLEX CONN WITH SMB PLUG 1M CONN SMB PLUG - RG-174 1M SMB IP68 plug + 1m RG174 cable RF Connectors / Coaxial Connectors PRE-WIRED FLEX CONN WITH SMB PLUG 1M Cable Assembly Coaxial 1m SMB PL CABLE, PLUG SMB, 1M CircularCableConnector;1m;-20to80degC;ULListed Connector: SMB; plug; with lead; internal thread; Buccaneer SMB Bulgin 电缆安装 SMB 连接器, 插头, 预接线端接, RG174
PX0415/1
Bulgin
RF Connectors RE-WIREABLE CONN WITH SMB PLUG CONN SMB PLUG STR 50 OHM SMB IP68 cable plug RF Connectors / Coaxial Connectors RE-WIREABLE CONN WITH SMB PLUG Conn SMB PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold PLUG, SMB, REWIREABLE CircularCableConnector;-20to80degC;ULListed Connector: SMB; plug; internal thread; Buccaneer SMB; for cable Bulgin 直向 50Ω 电缆安装 SMB 连接器, 插头, 压接端接, RG174

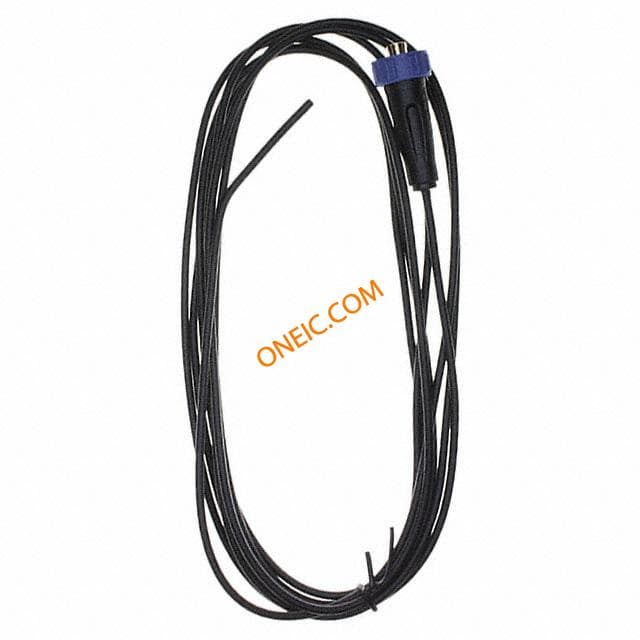

PX0416/3M00
