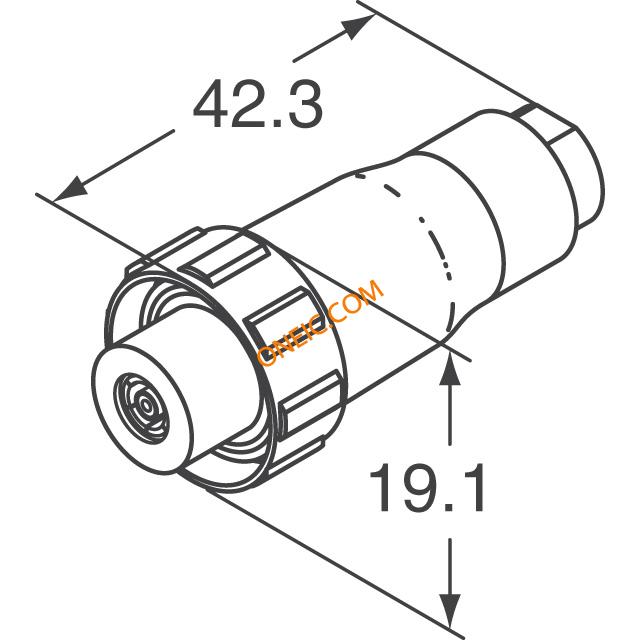

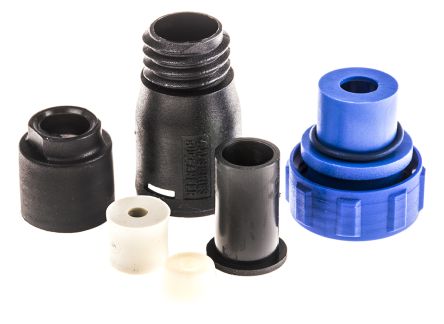

PX0415/1
| 制造商 | |
| 描述 | RF Connectors RE-WIREABLE CONN WITH SMB PLUG CONN SMB PLUG STR 50 OHM SMB IP68 cable plug RF Connectors / Coaxial Connectors RE-WIREABLE CONN WITH SMB PLUG Conn SMB PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold PLUG, SMB, REWIREABLE CircularCableConnector;-20to80degC;ULListed Connector: SMB; plug; internal thread; Buccaneer SMB; for cable Bulgin 直向 50Ω 电缆安装 SMB 连接器, 插头, 压接端接, RG174 |
| 分类 |
商业参数
| 产品 | Connectors | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | 10 | 工厂包装数量 | 10 |
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | :UL | 材料阻燃等级 | :UL94V-0 |
电气参数
| 频率 | 0 → 4GHz | 阻抗 | 50 Ohm |
| 最大频率 | 4GHz | 接触电阻 | :6mohm |
| 绝缘电阻 | 1000 MOhms | 阻抗 - 不平衡/平衡 | :RG174 |
机械参数
| 重量 | 0.01591 | 包装方式 | Bulk |
| 电缆类型 | RG-174 | 导线线规 | RG174 |
| 本体表面处理 | Gold | 电缆组 | RG-174 |
| 外壳样式 | Plastic | 端接方式 | Crimp |
| 触头类型 | Pin | 基体材料 | Brass |
| 外壳颜色 | Gold | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 连接器类型 | Plug, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Snap-On |
| 安装样式 | for cable | 连接器样式 | SMB |
| 锁定特性 | internal thread | 触头材料 | Brass |
| 壳体材料 | Polyamide | 包装数量 | 25 |
| 主要材料 | Sealed | 连接器 - 电缆 | plug |
| 端接样式 | Crimp | 外径 | :19mm |
| 配接方向 | Threaded | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | :Straight Plug | 第一连接器安装类型 | :Cable |
| 接触件镀层 - 插柱（配合端） | :Gold | ||
产品信息
| SPG | 25 | 类型 | CablePlug |
| 连接器性别 | Plug | 系列 | :Buccaneer |
| 适配器系列 | Buccaneer SMB | 单元数量 | 1 |
| 射频系列/标准 | SMB | ||
环境参数
| 防护等级 | IP68 - Dust Tight, Waterproof | 工作温度 | -20°C ~ 80°C |
文档与媒体
相关型号

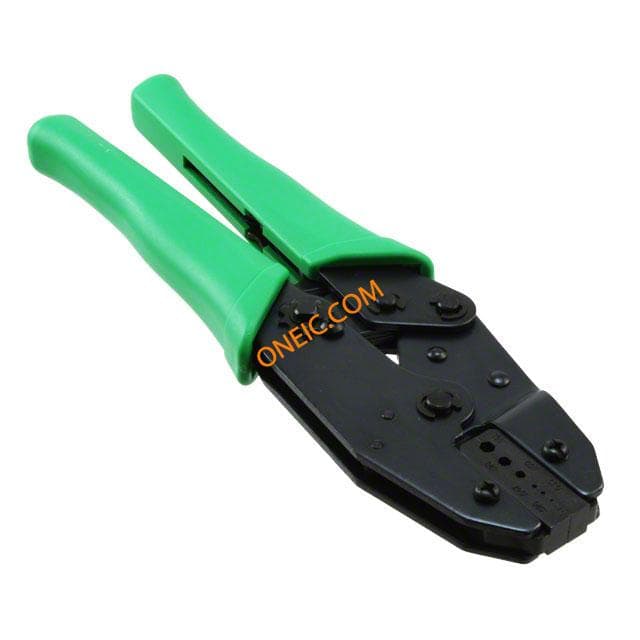

14319
