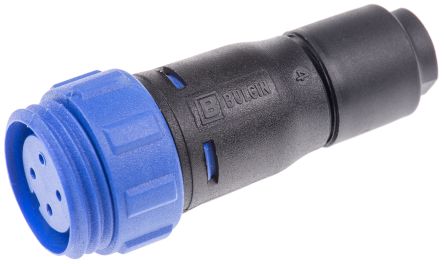

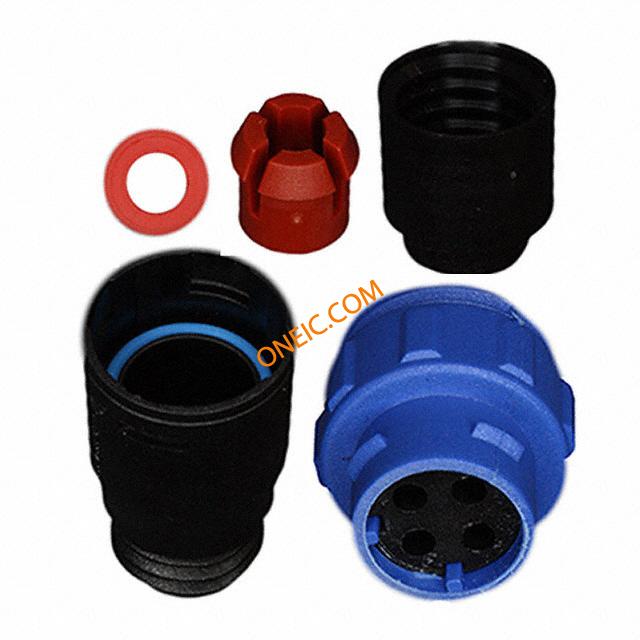

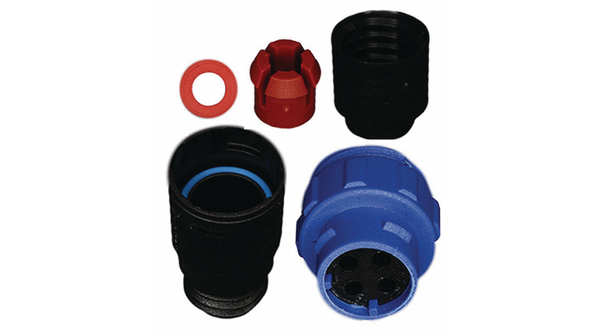

PX0411/04S/4550
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 4 POLE IN-LINE SKT CONN HSNG RCPT IN-LINE 4POS SKT 4 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CIRCULAR, RECEPTACLE, 4 WAY, CABLE CableConnector,In-Line;4;Socket;4.5to5.0mm;FlexIn-LineBody;5A;125 Connector: circular; plug; female; PIN:4; w/o terminals; for cable Coupling socket Buccaneer 400, 4-pole 4, PX0411/04S/4550, Bulgin Bulgin Buccaneer 系列 4路 电缆安装 直向 连接器 , 母触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85366990 | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 125 V ac/dc | 工作电压 | :125V |
| 接触电阻 | :5mohm | 最大额定电流 | 5A |
| 绝缘电阻 | :10Mohm | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 重量 | 0.005 | 包装方式 | Bulk |
| 导线线规 | :22AWG | 方向 | Keyed |
| 外壳样式 | Receptacle | 本体尺寸 | Ø19.1 x 46mm |
| 端接方式 | Crimp | 触头类型 | Crimp and Solder Cup |
| 基体材料 | polyamide | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 电缆直径 | 4.5-5mm |
| 连接器类型 | Receptacle for Female Contacts | 接触镀层 | Gold |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 外壳材料（壳体） | Plastic | 插入角度 | :- |
| 锁定特性 | threaded joint, external thread | 本体材料 | :Nylon (Polyamide) |
| 触头材料 | Copper Alloy | 壳体材料 | Polyamide |
| 包装数量 | 25 | 主要材料 | Sealed |
| 连接器 - 电缆 | plug | 端接样式 | Crimp / Solder |
| 第一触头极性 | Female | 配接方向 | Threaded |
| 触点数 | 4 | 位数 | 4 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide |
| 线规或范围 - AWG | :26AWG | 第一连接器安装类型 | :Cable |
| 外径-未扩张 | :7mm | ||
产品信息
| SPG | 25 | 备注 | Contacts Not Provided |
| 类型 | CableSocket | 连接器性别 | :Receptacle |
| 系列 | Buccaneer | 制造商全称 | 400Series |
| 产品子类型 | Connectors | 适配器系列 | Buccaneer 400 |
| 单元数量 | 1 | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | +80°C | ||
