点击放大查看

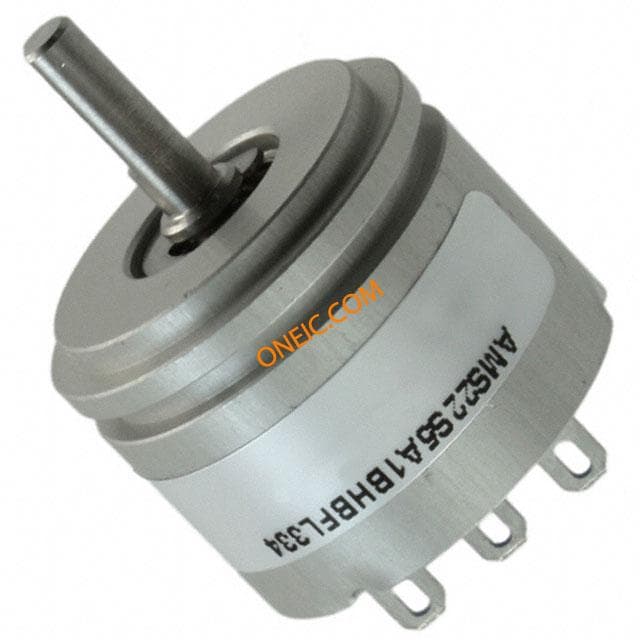

AMS22S5A1BHBFL334
| 制造商 | |
| 描述 | Rotary Position Sensor 3-Pin SENSOR NON-CONTACT SINGLE TURN NonContact Analog Rotary Position Sensor Industrial Motion & Position Sensors 5vdc Analog Single 12 Bit RotaryPosition Sensor 5V 3-Pin SENSOR, NON-CONTACT, SINGLE TURN Sensor;Rotary;Non-ContactAnalogMagnetic;Cylindrical;Voltage;5VDC Position Sensor ø 22.23 mm, AMS22S5A1BHBFL334, Bourns Bourns AMS22S 系列 线性 电位器 , 3.175 mm 直径轴, 伺服安装 |
| 分类 |
商业参数
| 产品类别 | Industrial Motion & Position Sensors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85334010 | ||
电气参数
| 转速 | :120rpm | 线性度 | +/- 0.5 % |
| 容差 | 10 % | 输出类型 | Analog |
| 额定电压 | 5 V | 供电电流 | :20mA |
| 供电电压 | 4.5 V ~ 5.5 V | 通道数量 | :1 |
| 供电电压 (Vcc/Vdd) | :4.5V DC to 5.5V DC | ||
机械参数
| 深度 | 22.23mm | 长度 | 15.62mm |
| 重量 | 0.536164 oz | 包装方式 | Bulk |
| 安装类型 | Servo Mount | 安装样式 | Chassis |
| 旋转角度 | :360° | 轴直径 | 2.67 mm |
| 执行器材料 | * | 端接样式 | * |
| 旋转寿命（最小循环次数） | :50000000 | ||
产品信息
| 类型 | Hall Effect | 系列 | AMS22S |
| 功能 | * | 圈数 | 1 |
| 类型属性 | Linear | 射频系列/标准 | AMS22S |
环境参数
| 温度范围 | - 40 C to + 125 C | 工作温度 | +125°C |
