点击放大查看

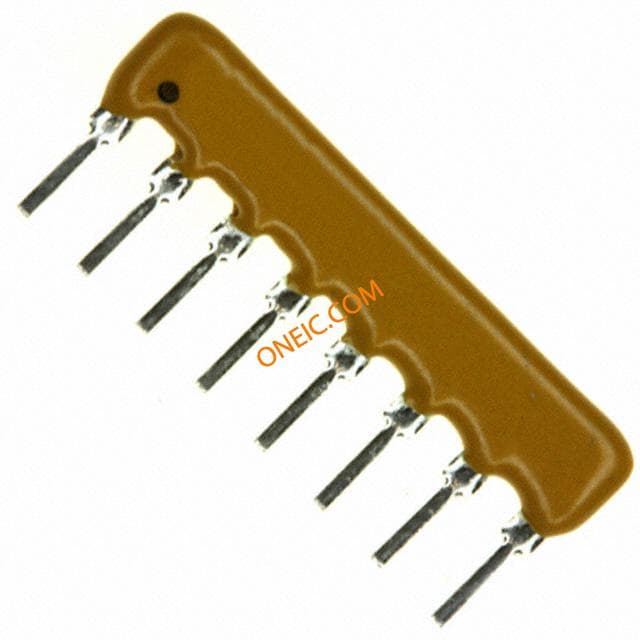

4608X-101-103LF
| 制造商 | |
| 描述 | Res Thick Film NET 10K Ohm 2% 1W ±100ppm/°C BUS Conformal 8-Pin SIP Pin Thru-Hole Bulk RES ARRAY 10K OHM 7 RES 8SIP 7-bussed thick film resistor,10K 0.2W Resistor Networks & Arrays 8pins 10Kohms Bussed Res Thick Film NET 10K Ohm 2% 1W �100ppm/C BUS Conformal 8-Pin SIP Pin Thru-Hole Bulk RESISTOR NETWORK, 10K Resistor,Ntwrk;10000Ohms;Bussed;EpoxyResin;ConformalSIP;1W;2%;100V;8Pin Resistor network: X; 10kΩ; No.of resistors:7; THT; 200mW; ±2%; 100V Resistor network SIL 10 kOhm ± 2 %, 4608X-101-103LF, Bourns Bourns 10kΩ ±2% 7个电阻 排阻, 总线, 1W, SIP 封装 4600X |
| 分类 |
商业参数
| 产品类别 | Resistor Networks & Arrays | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85332100 |
| 抗辐射加固 | No | 军用标准 | Not Required |
电气参数
| 电路 | BussedNetwork | 容差 | 2% |
| 电阻 | 10 KOhm | 最大功率 | 0.2W |
| 额定功率 | 1 W | 电阻器类型 | one pin of each resistor connected to common terminal |
| 额定电压 | 100 V | 电路模式 | BUS |
| 电阻值 | 10 kOhms | 额定电压值 | 100V |
| 每元件功率 | 200mW | 电阻值（欧姆） | 10k |
| 元件数量 | :7 | 峰值脉冲功率 | 1/5 W |
| 电阻数量 | 7 | 电阻公差 | :± 2% |
| 基极电阻（R1） | :Radial Leaded | 绝缘电阻 | :10Mohm |
机械参数
| 深度 | 2.49mm | 宽度 | :2.49mm |
| 高度 | 0.200" (5.08mm) | 长度 | 20.27mm |
| 重量 | 0.032 | 底座类型 | :SIP |
| 包装方式 | Bulk | 引脚间距 | :2.54mm |
| 柱间距 | 2.54 mm | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | 8 |
| 封装形式 | Conformal | 冷却的封装 | SIP |
| 总长度 | 20.27 mm | 包装数量 | 100 |
| 尺寸/外形 | 0.798" L x 0.098" W (20.27mm x 2.49mm) | 连接器间距 | 2.54mm |
| 端接样式 | Pin | 引线长度 | :3.43mm |
| 触点数 | 8 | 电阻材料 | :Thick Film Array |
| 位数 | 8 | 供应商器件封装 | 8-SIP |
产品信息
| SPG | 100 | 类型 | Network |
| 系列 | 4600X | 技术 | Thick Film |
| 电路类型 | Bussed | 失效率 | Not Required |
| 制造商全称 | 4600XSeries | 产品子类型 | Networks |
| 单元数量 | 1 | ||
环境参数
| 工作温度 | -55 to 125 °C | 温度系数 | ±100 ppm/°C |
| 典型温度系数 | :50ppm/°C | ||
