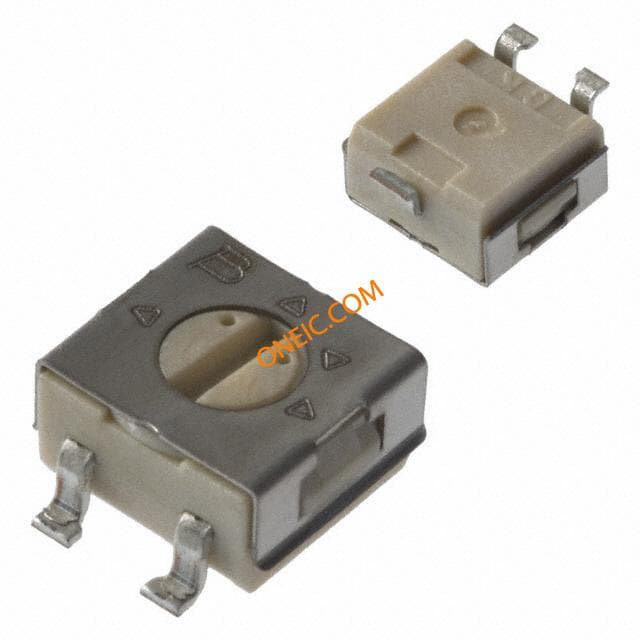

3314G-1-101E
| 制造商 | Bourns, Inc. |
| 描述 | Res Cermet Trimmer 100 Ohm 20% 1/4W 1(Elec)/1(Mech)Turn 2.45mm (5 X 6.2 X 2.55mm) Gull Wing SMD Embossed T/R Res Cermet Trimmer 100 Ohm 20% 0.25W(1/4W) 1(Elec)/1(Mech)Turn 2.45mm (5 X 6.2 X 2.55mm) Gull Wing SMD Embossed T/R TRIMMER 100 OHM 0.25W SMD 3314G SMT topadj cermet trimmer,100R 4mm Trimmer Resistors - SMD 4mm SQ 100ohm Res Cermet Trimmer 100 Ohm 20% 0.25W 1(Elec)/1(Mech)Turn 2.45mm (5 X 6.2 X 2.55mm) Gull Wing SMD Embossed T/R TRIMMER, 1 TURN, 100R, 0.25W Trimmer;Cermet;Rest100Ohms;SMD;1Turn;Pwr0.25W;Dim0.177inLx0.177inWx0.1inH Potentiometer: mounting; single turn, horizontal; 100Ω; 250mW; SMD Trimmer Cermet SMD 100 Ohm 250 mW, 3314G-1-101E, Bourns Bourns 3314G 系列 表面贴装 微调电阻器, 带 鸥翼型接端, 100Ω ±20%, 0.25W, ±100ppm/°C |
| 分类 |
商业参数
| 产品 | Trimmers | 其他名称 | 3314G-101EDKR |
| 产品类别 | Trimmer Resistors - SMD | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85334010 |
| 抗辐射加固 | No | 军用标准 | Not Required |
电气参数
| 容差 | 20 % | 电阻 | 100 Ohm |
| 元件类型 | Cermet | 功率（瓦） | 0.25W, 1/4W |
| 额定功率 | 1/4 W | 额定电压 | :300V |
| 电阻值（欧姆） | 100 | 电阻公差 | 100Ω |
| 直流电阻（DCR）（最大） | :100ohm | ||
机械参数
| 深度 | 6.2mm | 锥度 | Linear |
| 高度 | 2.55mm | 长度 | 5mm |
| 重量 | 0.001 | 直径 | Not Required mm |
| 包装方式 | Embossed Tape and Reel | 本体尺寸 | 4.5 x 4.5 x 2.55mm |
| 安装类型 | Surface Mount | 安装样式 | Surface Mount |
| 旋转角度 | 240° | 轴直径 | 2.45 mm |
| 总长度 | 5 mm | 包装数量 | 1 |
| 尺寸/外形 | Square - 0.177" L x 0.177" W x 0.100" H (4.50mm x 4.50mm x 2.55mm) | 连接器间距 | 2.3x5mm |
| 端接样式 | Gull Wing | 导体材料 | cermet |
| 电阻材料 | Cermet | ||
产品信息
| SPG | 1 | 类型 | Trimmer |
| 系列 | 3314 | 技术 | Cermet |
| 失效率 | Not Required | 产品子类型 | Single Turn |
| 调节方式 | Top Adjustment | 特性 | linear |
| 圈数 | 1(Elec)|1(Mech) Turns | 单元数量 | 1 |
| 类型属性 | mounting | ||
环境参数
| 工作温度 | -55 to 125 °C | 温度系数 | ±100ppm/°C |
