点击放大查看

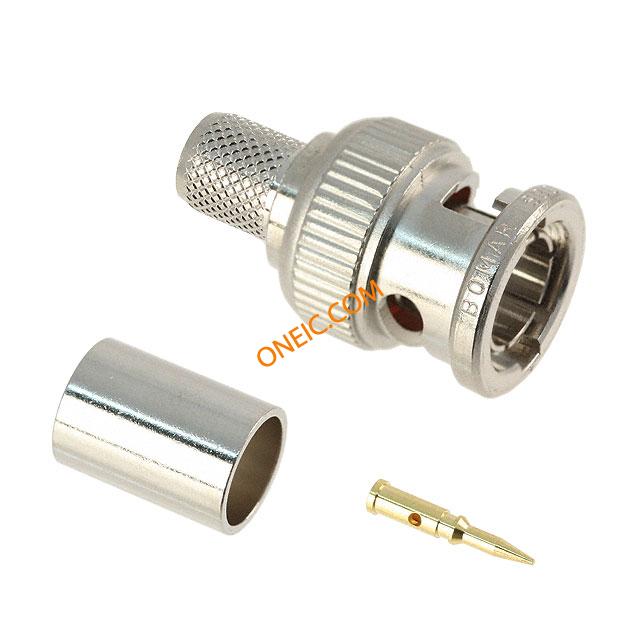

SBC1694A
| 制造商 | Bomar Interconnect Products, Inc. |
| 描述 | RF Connectors PLUG FOR 1694A CONN BNC PLUG STR 75 OHM CRIMP Connector; RF Coaxial;75 Ohms;RG6;BNC;For Belden 1694A Cable;Machined Brass RF Connectors / Coaxial Connectors PLUG FOR 1694A Conn BNC M 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Nickel Connector,RFCoaxial;75Ohms;RG6;BNC;ForBelden1694ACable;MachinedBrass |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | 991-1005 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 阻抗 | 75 Ohm | 额定电压 | 500V |
| 最大频率 | 1GHz | ||
机械参数
| 包装方式 | Bulk | 电缆类型 | RG/U6(18AWG) |
| 本体表面处理 | Nickel | 电缆组 | Belden 1694A |
| 方向 | Straight | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pin |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳涂层 | Nickel | 安装样式 | CableMount |
| 连接器样式 | BNC | 本体材料 | Brass |
| 触头材料 | Brass | 主要材料 | BNC |
| 端接样式 | Crimp | 配接方向 | Bayonet |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp |
| 介电材料 | TFE | 中心触点镀层工艺 | Nickel |
| 中心触点材料 | Brass | ||
产品信息
| 类型 | CablePlug | 射频系列/标准 | BNC |
| 应用细节 | Commercial | ||
