1694A 010500
| 制造商 | Belden Inc. |
| 描述 | Coaxial Cables 18AWG 1C SHIELD 500ft SPOOL BLACK COAXIAL CABLE; RG-6/U; 18AWG SOLID; 75 OHM IMP.; DIGITAL VIDEO CABLE BLACK; 152m CABLE, COAXIAL, RG-6/U, 500FT, 18AWG, BLK COAXIAL CABLE, RG-6/U, 18AWG SOLID, 75 OHM IMP., DIGITAL VIDEO CABLE BLACK Low loss serial digital coax cable, RG-6/U Type, 500’ reels, 18 AWG solid .040" bare copper conductor, gas-injected foam HDPE insulation, Duofoil + TC braid shield (95% coverage), PVC jacket |
| 分类 |
商业参数
| 产品类别 | Coaxial Cables | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 标准 | UL NEC/cUL CEC, EU CE |
| 海关税号 | 85444920 | ||
电气参数
| 阻抗 | 75 Ohms | 额定电压 | 300 V (RMS) |
| 连接器阻抗 | 6/U | ||
机械参数
| 长度 | 500 ft | 重量 | 21 lbs |
| 屏蔽 | Shielded | 电缆类型 | :RG6 |
| 导线线规 | 18 | 线缆护套颜色 | :Black |
| 屏蔽材料 | Tinned copper braid and Aluminum foil—Polyester tape—Aluminum foil | 总长度 | :500ft |
| 导体材料 | Copper | 外径 | 0.274 in |
| 介电材料 | Gas Injected Foam High Density Polyethylene | 绝缘材料 - 材质 | Foam High Density Polyethylene |
| 电缆对数 | Solid | 线规或范围 - AWG | :18AWG |
| 护套（绝缘）材料 | Polyvinyl Chloride - PVC | 外径-未扩张 | 0.275 " |
产品信息
| 应用细节 | Indoor, Outdoor, Aerial, Analog, Digital, Video | 位置/触点数量 | 1 |
环境参数
| 最高温度限值 | + 75 C | ||
文档与媒体
相关型号
1694ABHD1
Belden Wire & Cable
RF Connectors RG6 BNC HD 1 PIECE COMPRESN CONECTR GRN RF Connectors / Coaxial Connectors RG6 BNC HD 1 PIECE COMPRESN CONECTR GRN Conn BNC PL 75Ohm Crimp ST Cable Mount RF/COAX, HD BNC PLUG, STR, CRIMP, 75 OHM, GRN Plug; BNC; male; 75Ω; RG6; crimped TRUE 360; 500cycles; gold plated RG6BNC HD CONN 1-PC COMPRESSION POL. NICKEL GRN 75 OHM ROHS
112965
amphenol connex
Conn BNC F 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Gold CONN BNC JACK STR 75 OHM CRIMP RF Connectors / Coaxial Connectors BNC STRAIGHT CRIMP JACK RF/COAXIAL, BNC JACK, STR, 75 OHM, CRIMP BNC, BNC CRP JK B1694A CABLE RG 6
31-70000
Amphenol RF
RF Connectors BNC PLUG 75OHM RG-6 connector;rf coaxial;bnc straight plug;crimp-crimp;for rg6;b9248;1694a;75 ohm RF Connectors / Coaxial Connectors BNC PLUG 75OHM RG-6 Conn BNC PL 0Hz to 4GHz 75Ohm Crimp ST Cable Mount Gold RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP For RG-6 - Belden 533945, 5339B5, 5399B5, 633948, 633938; Coleman 92045, 92061, 921003
SBC1694A
Bomar Interconnect
RF Connectors PLUG FOR 1694A CONN BNC PLUG STR 75 OHM CRIMP Connector; RF Coaxial;75 Ohms;RG6;BNC;For Belden 1694A Cable;Machined Brass RF Connectors / Coaxial Connectors PLUG FOR 1694A Conn BNC M 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Nickel Connector,RFCoaxial;75Ohms;RG6;BNC;ForBelden1694ACable;MachinedBrass

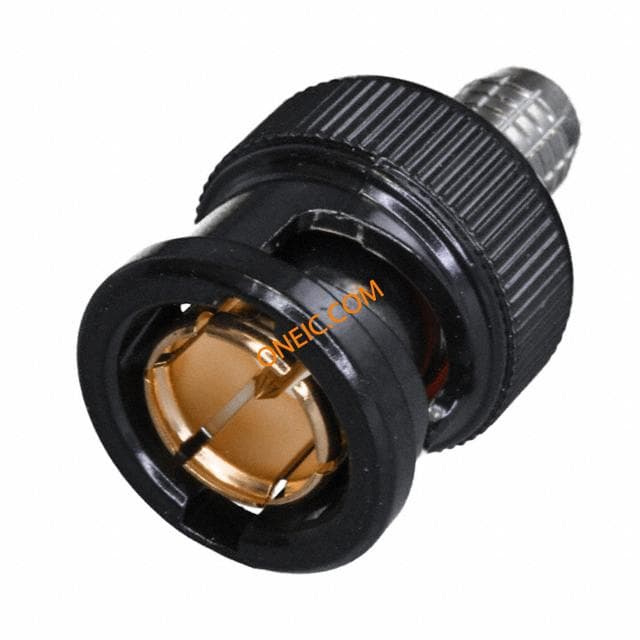

UPL2000-D4
