点击放大查看

1505A 0101000

制造商	Belden Inc.
描述	Coaxial Cables 20AWG 1C SHIELD 1000ft SPOOL BLACK COAXIAL CABLE; RG-59/U; 20AWG SOLID; 75 OHM IMP; DIGITAL VIDEO CABLE BLACK; 304m COAXIAL CABLE, RG-59/U, 20AWG SOLID, 75OHM IMP, DIGITAL VIDEO CABLE BLACK Coax - RG-59/U Type 20 AWG PE/GIFHDPE SH FR PVC Black
分类	电缆、电线及组件同轴电缆（RF）同轴电缆（按阻抗分类）

对参数有疑问？问 AI 助手

商业参数

产品类别

Coaxial Cables

工厂包装数量

合规参数

RoHS

RoHS Compliant

标准

UL NEC/cUL CEC, EU CE

电气参数

阻抗	75 Ohms	额定电压	300 V (RMS)
连接器阻抗	59/U	阻抗 - 不平衡/平衡	RG 59

机械参数

长度	1000 ft	重量	35 lbs
屏蔽	Shielded	电缆类型	RG59/U
导线线规	20	屏蔽类型	BOTH, BRAID OVER FOIL
线缆护套颜色	Black	导体类型	SOLID CONDUCTOR
屏蔽材料	Tinned Copper	导体材料	Copper
外径	0.233 in	介电材料	FOAMED HDPE-HI-DENSITY POLYETHYLENE
绝缘材料 - 材质	Foam High Density Polyethylene	电缆对数	Solid
护套（绝缘）材料	Polyvinyl Chloride - PVC	外径-未扩张	0.233 "

产品信息

应用细节

Indoor, Outdoor, Aerial, Analog, Digital, Video

位置/触点数量

环境参数

浸没	NO NOT FLOODED OVER BRAID	防火等级	RISER
防护等级	YES IS OUTDOOR GRADE MATERIAL	最高温度限值	+ 75 C

文档与媒体

在线文档

index.cfm?event=printPrev&pnum=1505A&ut=English

PDF 文档

1345383.pdf

相关型号

5221221-7

te connectivity / amp

Conn BNC RCP 0Hz to 2GHz 75Ohm Crimp ST Panel Mount Gold BNC RF Connectors CONN BNC JACK STR 75 OHM CRIMP RF Connectors / Coaxial Connectors JACK BLKHD 75 OHM BNC RF Connectors Product Highlights:ConnectorConnector Type = BNCJackTerminate To Coaxial CableCoaxial Cable Termination Type = CrimpSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF/COAXIAL, BNC JACK, STR, 75 OHM, CRIMP JACK,BHD,75 OHM,BNC

¥11.4240

详情

1505ABHDL

Belden Wire & Cable

RF Connectors RG59 BNCHD 1PC LOCK COMPRESN CONECTR RED RF Connectors / Coaxial Connectors RG59 BNCHD 1PC LOCK COMPRESN CONECTR RED RF/COAX, HD BNC PLUG, STR, CRIMP, 75 OHM, RED RG59BNC HD CONN 1-PC LOCKING POL. NICKEL RED 75 OHM ROHS

¥20.4000

详情

112507

amphenol connex

Conn BNC PL 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Gold CONN BNC PLUG STR 75 OHM CRIMP connector;rf coaxial;bnc str crimp plug;captive cont;for rg59;62 20awg cc;75 ohm RF Connectors / Coaxial Connectors BNC CRIMP PLUG RG 59/U-75 OHM RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP connector, rf coaxial, bnc str crimp plug, captive cont, for rg59, 62 20awg cc, 75 ohm

¥16.4560

详情

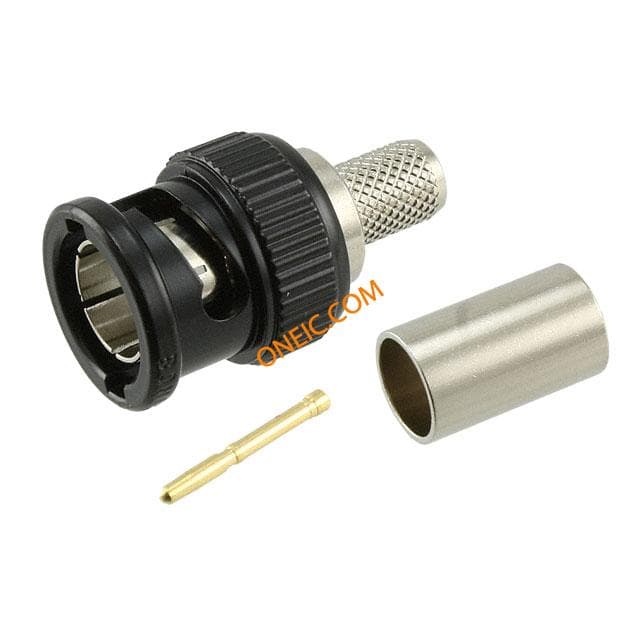

HBC1505A
