点击放大查看

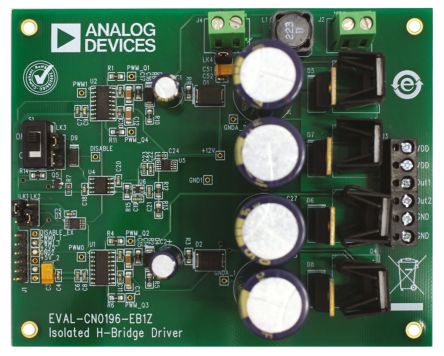

EVAL-CN0196-EB1Z

制造商	Analog Devices, Inc.
描述	Development Kit For High Side And Low Side Outputs, Motor Control EVAL BOARD FOR CN0196 Power Management IC Development Tools CftL CN0196 EVAL BRD ADUM7234, H-BRIDGE DRVR, EVAL BOARD Analog Devices 半桥式驱动器参考设计
分类	嵌入式系统与开发工具嵌入式开发工具评估与开发套件

对参数有疑问？问 AI 助手

商业参数

产品	Evaluation Boards	其他名称	EVALCN0196EB1Z
标准包装数量	1	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85423990

电气参数

元件数量

:ADuM7234

机械参数

重量

0.25

包装方式

Bulk

产品信息

类型	Power Switches	系列	CN-0196
内容	Board	嵌入式	Yes, MCU, ARM7®
产品特性	:High Side & Low Side Outputs, Motor Control	功能	H-bridge driver circuit using isolated half-bridge drivers

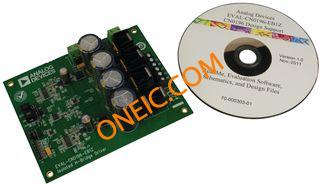

套件类型	:Drivers	套件内容	:EVAL-CN0196-EB1Z Evaluation Board, Software CD
主要用途	Power Management, H-Bridge Driver (External FET)	制造商全称	:ARM
工具类型/特性	ADuM7234, ADG787, ADuC7061, ADuM3100, ADP1720, ADCMP350	主要特性	Isolated
使用的IC/零件	ADuC7061, ADuM3100, ADuM7234	芯片组制造商	:Analog Devices
应用细节	:Half Bridge Driver	适用产品/相关产品	ADuM7234, ADG787, ADuC7061, ADuM3100, ADP1720, ADCMP350

相关型号

ADUC7061BCPZ32

analog devices

MCU 16-bit/32-bit ADuC7xxx ARM7TDMI RISC 32KB Flash 2.5V 32-Pin LFCSP EP IC MCU ARM7 32KB FLASH 32LFCSP IC, MCU, 16/32BIT, 32KB, 32LFCSP Microcontroller 32 kByte LFCSP-32, ADUC7061BCPZ32, Analog Devices Analog Devices ADuC7 系列 16 bit, 32 bit bit ARM7TDMI MCU, 10.24MHz, 32 kB ROM 闪存, 4 kB RAM, 32针 LFCSP封装 ARM Microcontrollers - MCU Low-Pwr Prec Analog Dual ADC Flash/EE

¥34.7934

详情

2N7002K-T1-GE3

Vishay Intertechnology, Inc.

Trans MOSFET N-CH 60V 0.3A 3-Pin SOT-23 T/R N-CH-MOSFET+ESD 0,3A 60V SOT23 MOSFET N-CH 60V 300MA SOT-23 MOSFET N-CH 60V 300MA SOT23-3 MOSFET 60V 300mA 0.35W 2.0ohm @ 10V MOSFET, N-CH, 60V, 0.3A, SOT23 MOSFET,N CH,60V,0.3A,DIODE,SOT23 N CHANNEL MOSFET, 60V, 300mA TO-236, FULL REEL Vishay , N沟道 MOSFET, 300 mA, Vds=60 V, 3针 SOT-23封装

¥0.0319

详情

ADG787BRMZ

analog devices

Analog Switch Dual SPDT 10-Pin MSOP IC MUX/DEMUX DUAL 2X1 10MSOP ADG787BRMZ, Analogue SPDT Switch Dual SPDT, 3, 5V, 10-Pin, MSOP Analog Switch ICs 63dB 2.5 Ohm CMOS DL 2:1 Mux/DMux USB 1.1 SWITCH, MUX/DEMUX DUAL 2:1, MSOP10 Analog Devices 模拟单刀双掷开关, 双单刀双掷, 3 V 5 V电源电压, 10针 MSOP封装

¥11.1166

详情

ADUM3100ARZ

analog devices

Digital Isolator 8-Pin SOIC N Digital Isolator CMOS 1-CH 25Mbps 8-Pin SOIC N Tube IC DGTL ISO 1CH LOGIC 8SOIC Digital Isolator 1-channel SOIC8 Isolator Interface IC Digital Enhanced System-Level ESD DIGITAL ISOLATOR, 1CH, 8SOIC Analog Devices 数字隔离器, 2500 V隔离电压, 8针 SOIC Digital Isolators Digital Enhanced System-Level ESD

¥17.5671

详情

EVAL-ADUC7061MKZ

analog devices

Quick Start Plus Development System For ADUC7061 KIT DEV FOR ADUC7061 Development Boards & Kits - ARM EVAL-ADUC7061 ARM7, ADUC7061, KEIL, IAR, MINI KIT Analog Devices ADuC7061 微控制器开发套件; 载有 ADuC7061 MCU (ARM7TDMI 内核)

¥172.1400

详情

ADUM7234BRZ

analog devices

Digital Isolator 16-Pin SOIC N ISOLATED PRECISION HALF-BRIDGE DRIVER, 4 A OUTPUT IC DRIVER HALF-BRIDGE 4A 16SOIC Isolator Interface IC Prec Half-Bridge Dvr 4A Output Gate Drivers Prec Half-Bridge Dvr 4A Output

¥25.0599

详情

EVAL-CN0196-EB1Z

Analog Devices

Development Kit For High Side And Low Side Outputs, Motor Control EVAL BOARD FOR CN0196 Power Management IC Development Tools CftL CN0196 EVAL BRD ADUM7234, H-BRIDGE DRVR, EVAL BOARD Analog Devices 半桥式驱动器参考设计

¥448.1200

详情
