点击放大查看

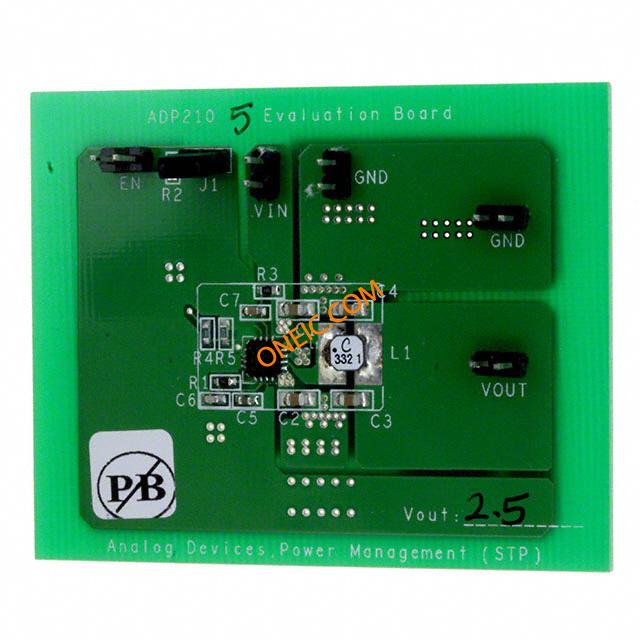

ADP2105-EVALZ
| 制造商 | |
| 描述 | Evaluation Board For ADP2105 Step-Down DC-To-DC Converters BOARD EVAL 2.5V ADJ ADP2105 Power Management IC Development Tools ADP2105 Eval Brd 1A STEP-DOWN DC-DC CONVERTERS |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 84733020 |
电气参数
| 额定电压 | 2.7 V to 5.5 V | 输出电流 | 1A |
| 稳压器拓扑 | Buck | 开关频率 | 1.2MHz |
| 最小输入电压 | 2.5V | ||
机械参数
| 重量 | 1 | 包装方式 | Bulk |
| 电路板厚度 | Fully Populated | ||
产品信息
| 类型 | Development Kit | 系列 | ADP2105 |
| 内容 | Board | 主要用途 | DC/DC, Step Down |
| 输出及类型 | 1, Non-Isolated | 工具类型/特性 | ADP2105 |
| 射频系列/标准 | ADP2105 | 使用的IC/零件 | ADP2105 |
文档与媒体
相关型号
ADP2105ACPZ-1.5-R7
analog devices
Conv DC-DC Single Step Down 2.7V to 5.5V 16-Pin LFCSP EP T/R IC REG BUCK SYNC 1.5V 1A 16LFCSP Voltage Regulators - Switching Regulators 1 Amp Sync Step-Down
ADP2105ACPZ-1.2-R7
analog devices
Conv DC-DC Single Step Down 2.7V to 5.5V 16-Pin LFCSP EP T/R IC REG BUCK SYNC 1.2V 1A 16LFCSP Voltage Regulators - Switching Regulators 1 Amp Sync Step-Down Switching Voltage Regulators 1 Amp Sync Step-Down
ADP2105ACPZ-1.8-R7
analog devices
Conv DC-DC Single Step Down 2.7V to 5.5V 16-Pin LFCSP EP T/R IC REG BUCK SYNC 1.8V 1A 16LFCSP Voltage Regulators - Switching Regulators 1 Amp Sync Step-Down Switching Voltage Regulators 1 Amp Sync Step-Down
ADP2105ACPZ-3.3-R7
analog devices
Conv DC-DC Single Step Down 2.7V to 5.5V 16-Pin LFCSP EP T/R IC REG BUCK SYNC 3.3V 1A 16LFCSP Voltage Regulators - Switching Regulators 1 Amp Sync Step-Down Switching Voltage Regulators 1 Amp Sync Step-Down
ADP2105ACPZ-R7
Analog Devices
Conv DC-DC Single Step Down 2.7V to 5.5V 16-Pin LFCSP EP T/R IC REG BUCK SYNC ADJ 1A 16LFCSP Voltage Regulators - Switching Regulators 1 Amp Sync Step-Down Switching Voltage Regulators 1 Amp Sync Step-Down
