ADP1720ARMZ-R7
| 制造商 | Analog Devices, Inc. |
| 描述 | LDO Regulator Pos 1.2V to 5V 0.05A 8-Pin MSOP T/R IC REG LDO ADJ 50MA 8MSOP Voltage Regulators - Standard 50mA Hi VTG Micropwr LINEAR, REG, 0.05A, 1.225V TO 5V, 8MSOP Analog Devices , LDO 调节器, 可调整的输出, 50mA, 1.225 → 5 V输出 1.2495V, 8针 MSOP封装 Linear Voltage Regulators 50mA Hi VTG Micropwr |
| 分类 |
商业参数
| 其他名称 | ADP1720ARMZ-R7CT | 标准包装数量 | Tape & Reel |
| 标准封装名称 | MSOP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 抗辐射加固 | No | ||
电气参数
| 精度 | ±2 % | 输出类型 | Adjustable |
| 稳压器类型 | Linear | 额定电压 | 4 V |
| 电源调整率 | 0.15 % | 负载调整率 | 0.01 % |
| 输出电流 | 0.05 A | 供电电压 | 0.1@1mA|0.2@10mA|0.3@50mA V |
| 输出数量 | 1 | 稳压器拓扑 | Positive Adjustable |
| 稳压器数量 | 1 | 最小输入电压 | 1.225 V ~ 5 V |
| 输出电压（最大） | :5V | 输出电压精度 | �2 % |
| 直流输入电压（最小） | 4 V | 静态电流（最大） | 0.025 mA |
| 输出电压（最小/固定） | :1.225V | 共模瞬态抗扰度（最小） | Extended Industrial |
| 最大持续工作电压（MCOV） | :28V | ||
机械参数
| 重量 | 0.000025 | 包装方式 | Tape and Reel |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8MSOP | 冷却的封装 | MSOP |
| 材料表面处理 | :MSL 1 - Unlimited | 包装数量 | MSOP |
| 位数 | 8 | 供应商器件封装 | 8-MSOP |
产品信息
| 类型 | LDO | 系列 | ADP1720 |
| 产品特性 | Short Circuit Protection|Thermal ... | 极性 | Positive |
| 拓扑 | LDO | 其他规格 | :1.22V to 5V |
环境参数
| 工作温度 | -40 to 125 °C | ||
文档与媒体
相关型号
ADP1720-EVALZ
analog devices
Evaluation Board For ADP1720 Micropower Linear Regulator BOARD EVAL FOR ADP1720-ADJ Power Management IC Development Tools ADP1720 Eval Brd ADP1720, LDO, EVAL BOARD

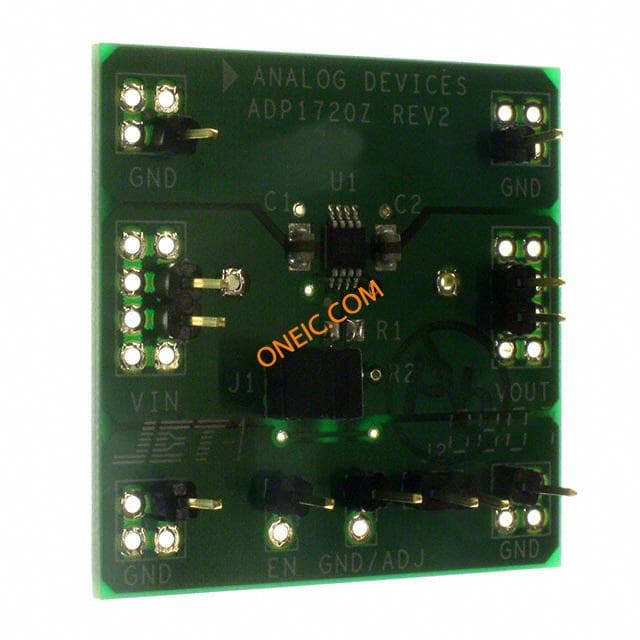

ADP1720-5-EVALZ
