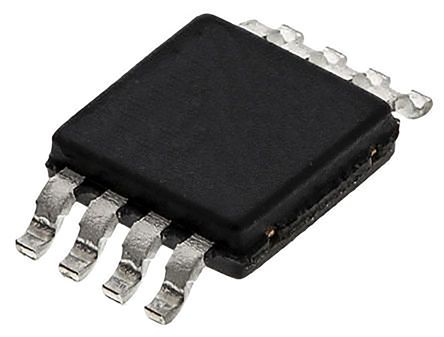

点击放大查看
AD8132ARMZ
| 制造商 | Analog Devices, Inc. |
| 描述 | SP Amp DIFF AMP Single ±5.5V/11V 8-Pin MSOP Tube IC OPAMP DIFF 360MHZ 8MSOP AD8132ARMZ, Differential Amplifier 3, 5, 9V 8-Pin MSOP Differential Amplifiers IC Hi-Speed SP Amp DIFF AMP Single �5.5V/11V 8-Pin MSOP Tube IC, DIFF AMP, 350MHZ, 1200V/ uS, MSOP-8 IC, DIFF AMP, SINGLE, 350MHZ, 8MSOP Differential Amplifier MSOP-8, AD8132ARMZ, Analog Devices 差分放大器, 3 V、5 V、9 V, 8引脚 MSOP封装 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 50 |
| 标准封装名称 | MSOP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 抗辐射加固 | No | ||
电气参数
| 增益 | 1 V/V | 电源抑制比 | 70 dB |
| 压摆率 | 1200 V/µs | 输出类型 | Differential |
| 输入功率 | Single/Dual | 额定功率 | 0.25 W |
| 建立时间 | 15 ns | 共模抑制比、电源抑制比（典型） | - 70 dB |
| 输出电流 | 12mA | 供电电压 | 2.7 V |
| 供电类型 | Single|Dual | 通道数量 | 1 |
| 元件数量 | 1 | 输入电阻 | 3MΩ |
| 输入偏置电流 | 3µA | ADC/DAC 数量 | :1 |
| 最小输入电压 | 0.129 dB | 输出电流（典型） | 70 mA |
| 轨到轨工作 | No | 最大功耗 | 250 mW |
| 输入偏置电流（最大） | 7@5V | 输出电流/通道 | 70mA |
| 电源电压范围（典型） | �3/�5 V | 输入失调电压（最大） | 3.5mV |
| 共模瞬态抗扰度（最小） | Extended Industrial | ||
机械参数
| 宽度 | 3mm | 高度 | 0.85mm |
| 长度 | 3mm | 重量 | 0.002 |
| 带宽 | 350 MHz | 包装方式 | Tube |
| 引脚样式 | Gull-wing | 端接方式 | :SMD |
| 安装类型 | Surface Mount | -3dB带宽 | 360MHz |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8MSOP | 冷却的封装 | MSOP |
| 材料表面处理 | :MSL 1 - Unlimited | 包装数量 | MSOP |
| 尺寸/外形 | 3 x 3 x 0.85mm | 位数 | 8 |
| 供应商器件封装 | 8-MSOP | ||
产品信息
| 类型 | Differential Amplifier | 系列 | AD8132 |
| 基本单元 | :8132 | 放大器类型 | Differential |
| 电路数 | 1 | ||
环境参数
| 工作温度 | -40 to 125 °C | ||
文档与媒体
相关型号
AD8132ARMZ
analog devices
SP Amp DIFF AMP Single ±5.5V/11V 8-Pin MSOP Tube IC OPAMP DIFF 360MHZ 8MSOP AD8132ARMZ, Differential Amplifier 3, 5, 9V 8-Pin MSOP Differential Amplifiers IC Hi-Speed SP Amp DIFF AMP Single �5.5V/11V 8-Pin MSOP Tube IC, DIFF AMP, 350MHZ, 1200V/ uS, MSOP-8 IC, DIFF AMP, SINGLE, 350MHZ, 8MSOP Differential Amplifier MSOP-8, AD8132ARMZ, Analog Devices 差分放大器, 3 V、5 V、9 V, 8引脚 MSOP封装
¥9.0600
详情

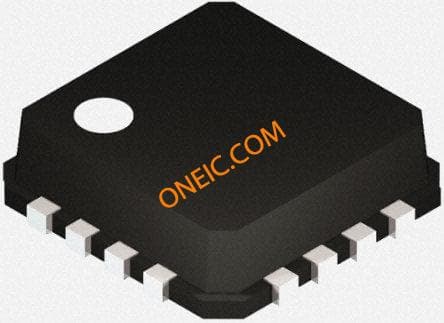

ADA4932-1YCPZ-R2
