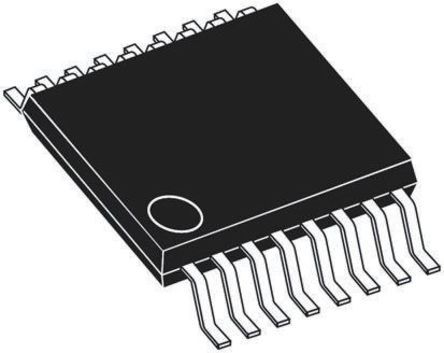

LT3756EMSE-2#PBF
| 制造商 | Analog Devices, Inc. |
| 描述 | LED DRVR 18Segment 9V/12V/15V/18V/24V 16-Pin MSOP EP IC LED DRVR HP CONS CURR 16-MSOP LT3756EMSE-2#PBF, LCD Display Driver 18-Segments, 6 to 100V, 16-Pin MSOP16 IC LED DRIVER BUCK-BOOST/FLYBACK MSOP-16 LED DRIVER, BUCK / BOOST, 100V, 16MSOP 18段 LED 驱动器, 6 → 100 V, 16引脚 MSOP封装 |
| 分类 |
商业参数
| 其他名称 | LT3756EMSE2PBF | 标准包装数量 | 37 |
| 标准封装名称 | MSOP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
电气参数
| 调光方式 | :Analogue, PWM | 频率 | 100kHz ~ 1MHz |
| 额定电压 | 6 → 100 V | 输出电流 | :370mA |
| 供电电流 | 0.005 mA | 供电电压 | 6 V ~ 100 V |
| 输出数量 | 1 | 开关频率 | :1MHz |
| 最小输入电压 | 100V | 最小供电电压 | 100 |
| 最大恒流负载 | Yes | 共模瞬态抗扰度（最小） | Extended |
| 最大持续工作电压（MCOV） | :100V | ||
机械参数
| 宽度 | 3mm | 高度 | 0.86mm |
| 长度 | 4.039mm | 重量 | 0 |
| 包装方式 | Tube | 封装体颜色 | :MSOP |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| 引脚数 | :16 | 封装形式 | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad |
| 冷却的封装 | MSOP16 | 材料表面处理 | :MSL 1 - Unlimited |
| 包装数量 | MSOP EP | 尺寸/外形 | 4.039 x 3 x 0.86mm |
| 位数 | 16 | 供应商器件封装 | 16-MSOP, Exposed Pad |
产品信息
| 类型 | White LED | 拓扑 | Flyback, Low Side, PWM, SEPIC, Step-Down (Buck), Step-Up (Boost) |
| 段数 | 18 | 内部连接 | No |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
