点击放大查看

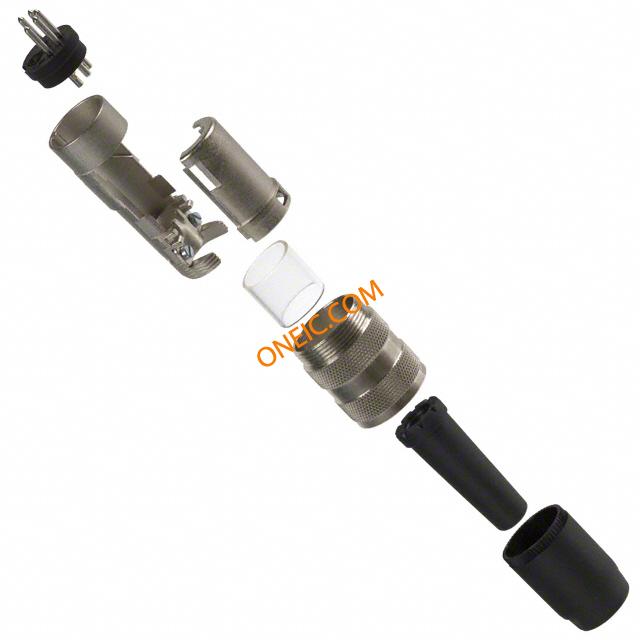

T 3360 010
| 制造商 | |
| 描述 | Conn Circular M 5 POS Solder ST Cable Mount 5 Terminal 1 Port CONN CIR MALE 5POS CBL MNT Circular DIN Connectors 5 Pin Male; Cable Mount connector, circular din, str male cable conn, 5s din silver plt solder contact, ip40 Cable connector, C091A 5-pin DIN Poles=5, T 3360 010, Amphenol |
| 分类 |
商业参数
| 零件号别名 | 010 3360 T U | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | Boxed | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 认证机构标志 | UL Recognized/IEC | 材料阻燃等级 | UL94-V0 |
电气参数
| 额定电压 | 100V | 极数 | 5 |
| 供电电压 | DIN | 最大额定电流 | 5A |
| 额定电流 - 设备输入口 | 5 | 保护电压（VP）（2416） | IP 40 |
机械参数
| 直径 | 17 | 包装方式 | Bulk |
| 出线方向 | Yes | 导线线规 | 20-26 |
| 方向 | Keyed | 端接方式 | Solder |
| 触头类型 | 5Signal | 安装类型 | Cable Mount |
| 外壳镀层 | Nickel | 行程角度 | Straight |
| 电缆直径 | 3-6 mm | 电缆端类型 | 3...6 mm |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Silver |
| 紧固类型 | Threaded | 外壳涂层 | Nickel |
| 封装形式 | Metal | 连接器用途 | Threaded |
| 锁定特性 | M16 x 0.75 screw locking | 触头材料 | CuZn+Ag |
| 壳体材料 | Die Cast | 总长度 | 67.5 |
| 主要材料 | DIN | 端接样式 | Solder |
| 第一触头极性 | M | 触点数 | 5 |
| 介电材料 | Thermoplastic | 位数 | 5 |
| 外壳尺寸-插件 | DIN (180 Degree) | 第一连接器极性 | Male |
| 外壳材料及表面处理 | Die Cast, Nickel Plated | 典型触点布局 | 5 |
产品信息
| 类型 | Circular | 设计类型 | Cable plug |
| 连接器性别 | Male | 系列 | C 091 A |
| 产品特性 | Shielded, Strain Relief | 制造商全称 | C091-A Series |
| 产品子类型 | Connectors | 连接方式 | 0.5 |
| 射频系列/标准 | C091A | ||
环境参数
| 密封等级 | IP 40 | 防护等级 | IP40 |
| 工作温度 | -40°C ~ 100°C | ||
