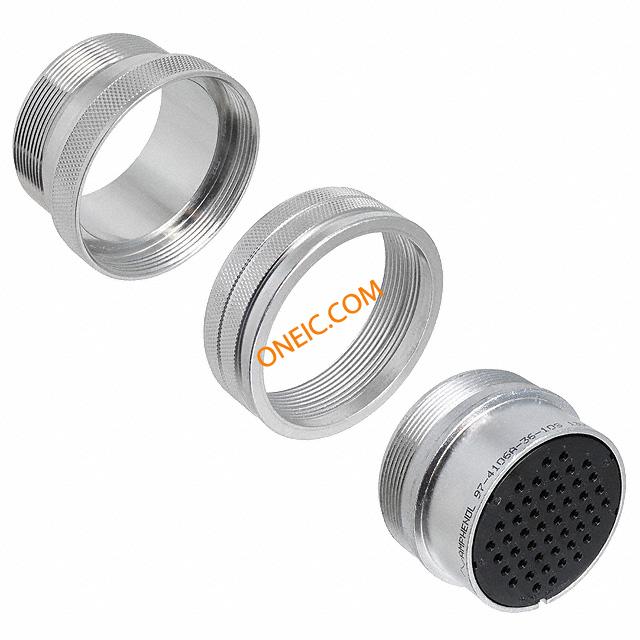

97-4106A-36-10S
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular SKT 48 POS Crimp ST Cable Mount 48 Terminal 1 Port Circular MIL Spec Connector 48P Shell Size 36 Straight Plug MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN HSG PLUG 48POS STRGHT SKT connector;metal circ;str plug;size 36;for 48 #16 crimp socket cont;clear finish connector, metal circ, str plug, size 36, for 48 #16 crimp socket cont, clear finish |
| 分类 |
商业参数
| 其他名称 | 974106A3610S | 零件号别名 | U10-824076-10S |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | No | MIL类型 | MIL-DTL-5015 |
| 认证机构标志 | UL/CSA | 材料阻燃等级 | UL94-V0 |
电气参数
| 额定电压 | 500/700 VAC/VDC | 最大额定电流 | 13 A |
机械参数
| 包装方式 | Bulk | 出线方向 | Solid |
| 外壳尺寸 | 36 | 导线线规 | 16 |
| 方向 | N (Normal) | 外壳样式 | In-Line |
| 端接方式 | Crimp | 触点尺寸 | 16 |
| 触头类型 | socket contacts | 安装类型 | Cable Mount |
| 外壳镀层 | Olive Drab Chromate over Cadmium | 行程角度 | Straight |
| 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - crimp type | 接触镀层 | Silver |
| 紧固类型 | Threaded | 外壳涂层 | Clear Cadmium |
| 安装样式 | Wire | 封装形式 | Metal |
| 外壳材料（壳体） | Aluminum Alloy | 连接器用途 | Threaded |
| 插入角度 | 36-10 | 触头材料 | Copper Alloy |
| 壳体材料 | Aluminum Alloy | 主要材料 | 5015 Commercial |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 配接方向 | Threaded | 触点数 | 48 |
| 位数 | 48 | 外壳尺寸-插件 | 36-10 |
| 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated | 典型触点布局 | 48#16 |
产品信息
| 备注 | Contacts Not Provided | 类型 | MIL-C-5015 Circular |
| 类别 | A | 连接器性别 | PL |
| 系列 | 97 | 产品特性 | Rear Release |
| 制造商全称 | 97 Series | 产品子类型 | Plugs |
| 应用细节 | Commercial | ||
文档与媒体
相关型号
97-3057-1024
amphenol

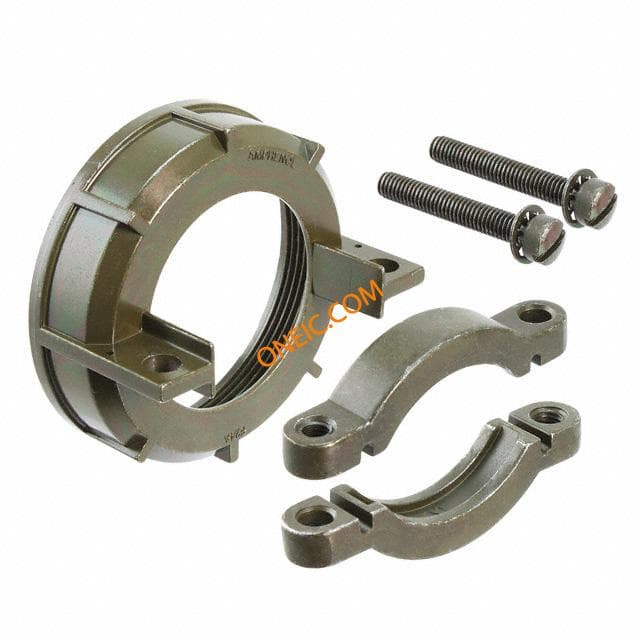

Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 36 connector accessory;ms3057a cable clamp;connector size 36;olive drab finish Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Size 36 CIRCULAR CABLE CLAMP, SIZE 36 ZINC ALLOY CABLE CLAMP, SIZE 36 connector accessory, ms3057a cable clamp, connector size 36, olive drab finish
97-3100A-36-10P
amphenol

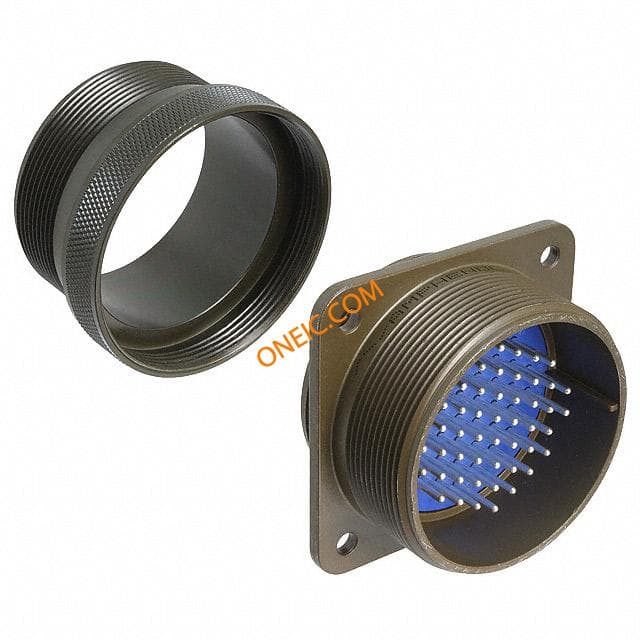

Conn MIL-C-5015 Circular PIN 48 POS Solder ST Wall Mount 48 Terminal 1 Port Circular MIL Spec Connector 48P Sz 36 Wall Mount Pin Recept Solder CONN RCPT 48POS WALL MNT PIN SLD connector;metal circ;wall recept;size 36;48 #16 solder pin contact;olive drab connector, metal circ, wall recept, size 36, 48 #16 solder pin contact, olive drab
97-3057-1024-1
amphenol
Connector Accessories Clamp/Bushing Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate Miscellaneous Connector Accessories CONN CABLE CLAMP SIZE 36 connector accessory;cable clamp with rubber bushing;size 36;olive drab Circular MIL Spec Strain Reliefs & Adapters Clamp with Bushing Size 36 CABLE CLAMP, SIZE 36 connector accessory, cable clamp with rubber bushing, size 36, olive drab
97-4102A-36-10P
amphenol
Conn MIL-C-5015 Circular PIN 48 POS Crimp ST Box Mount 48 Terminal 1 Port Circular MIL Spec Connector 48P Sz 36 Pin Crimp Box Mount Receptacle MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN HSG RCPT 48POS PNL MNT PIN connector;metal circ;box recept;size 36;for 48#16 crimp pin contact;clear finish connector, metal circ, box recept, size 36, for 48#16 crimp pin contact, clear finish
.JPG&w=3840&q=75)

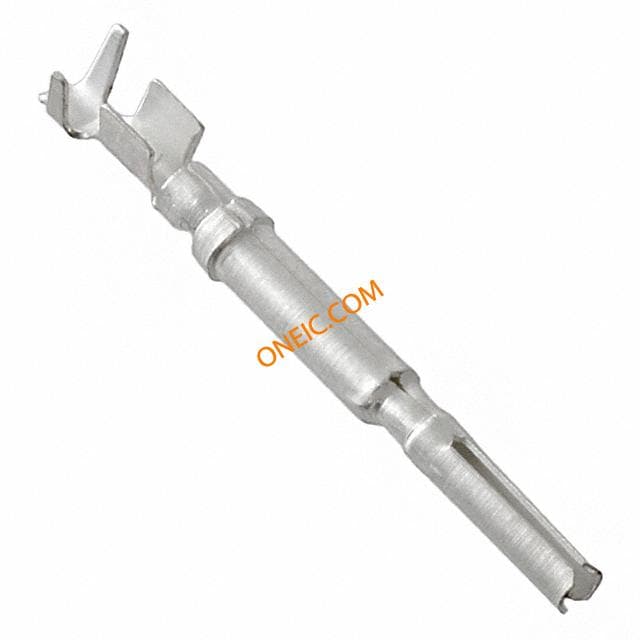

97-45-1622S-4(0920)
