点击放大查看

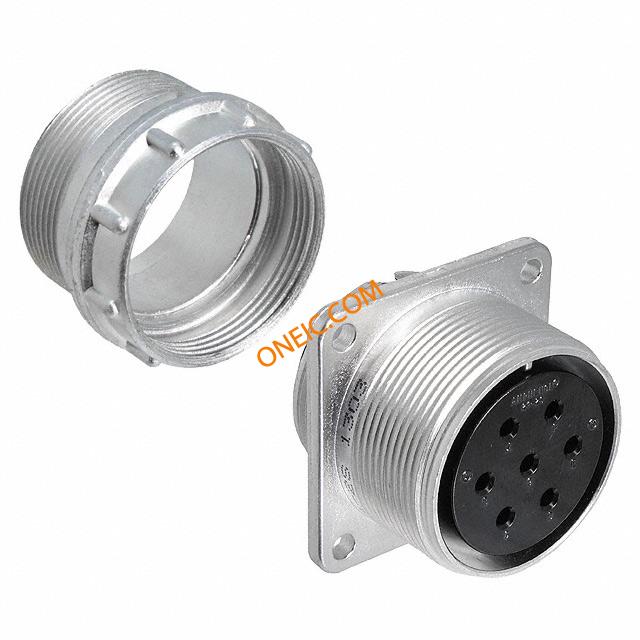

97-4100A-24-2S
| 制造商 | |
| 描述 | MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN HSG RCPT 7POS PNL MNT SKT Circular MIL Spec Connector 7P SZ 24 Wall MNT REC Crimp 5015 |
| 分类 |
商业参数
| 其他名称 | 974100A242S | 零件号别名 | 605-1569 |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS non-compliant | MIL类型 | MIL-DTL-5015 |
机械参数
| 包装方式 | Bulk | 外壳尺寸 | 24 |
| 方向 | N (Normal) | 外壳样式 | wall receptacle |
| 触点尺寸 | 12 | 触头类型 | socket contacts |
| 安装类型 | Panel Mount, Flange | 外壳镀层 | Olive Drab Chromate over Cadmium |
| 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - crimp type | 接触镀层 | Silver |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 外壳材料（壳体） | solid backshell | 插入角度 | 24-2 |
| 触头材料 | Copper Alloy | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | Threaded |
| 触点数 | 7 | 位数 | 7 |
| 外壳尺寸-插件 | 24-2 | 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated |
产品信息
| 备注 | Contacts Not Provided | 系列 | 97 |
| 产品子类型 | Receptacles | ||
