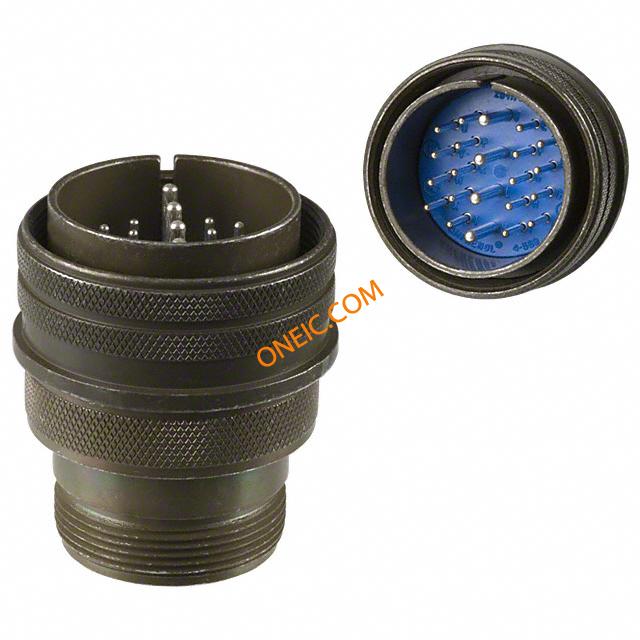

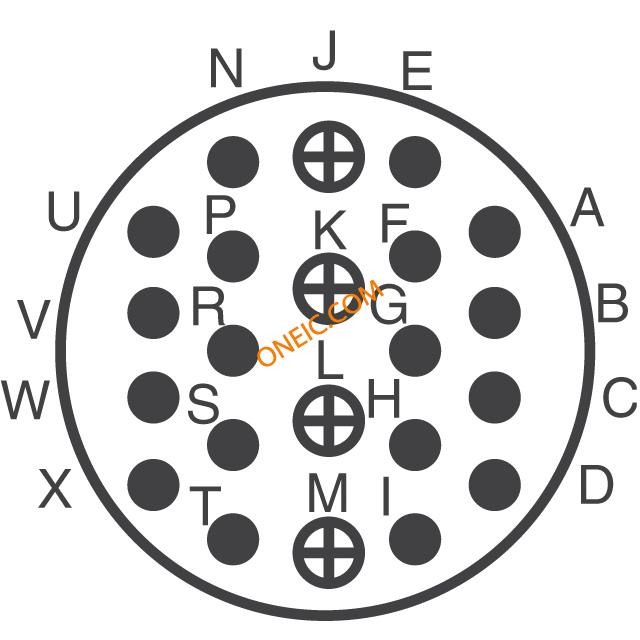

97-3106A-28-11P
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular PIN 22 POS Solder ST Cable Mount 22 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 22POS W/PINS connector;metal circ;str plug;size 28;4#12 & 18#16 solder pin contact;olive drab CIRCULAR CONNECTOR PLUG SIZE 28, 22POS, CABLE connector, metal circ, str plug, size 28, 4#12 & 18#16 solder pin contact, olive drab |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 海关税号 | 85369010 |
| 认证机构标志 | UL/CSA | ||
电气参数
| 额定电压 | 500VAC, 700VDC | 最大额定电流 | 13A, 23A |
机械参数
| 重量 | 0.109 | 包装方式 | Bulk |
| 出线方向 | Solid | 外壳尺寸 | 28 |
| 导线线规 | #12, #16 | 方向 | N (Normal) |
| 外壳样式 | straight plug | 端接方式 | Solder |
| 触头类型 | pin contacts | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Olive Drab Cadmium | 封装形式 | Metal |
| 外壳材料（壳体） | solid backshell | 连接器用途 | Threaded |
| 插入角度 | 28-11 | 本体材料 | :Aluminium Alloy |
| 壳体材料 | Aluminum Alloy | 主要材料 | 5015 Commercial |
| 第一触头极性 | :Pin | 触点数 | 22 |
| 介电材料 | Diallyl-Phthalate | 位数 | 22 |
| 外壳尺寸-插件 | 28-11 | 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated |
| 典型触点布局 | 4#12, 18#16 | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | PL | 系列 | :97 |
| 制造商全称 | 97 Series | 应用细节 | Commercial |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
97-3057-1016
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 24, 28 connector accessory;ms3057a cable clamp;connector sizes 24;28;olive drab finish Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Size 24, 28 CABLE CLAMP, SIZE 24/28, DIECAST ZINC CABLE CLAMP, SIZE 24/28, ZINC ALLOY CABLE CLAMP, SIZE 24, 28 connector accessory, ms3057a cable clamp, connector sizes 24, 28, olive drab finish
97-3057-16
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate Circular MIL Spec Strain Reliefs & Adapters Cable Clamp AN3057 Shell Size 24,28 CONN CABLE CLAMP SIZE 24, 28 connector accessory;an3057 cable clamp;connector size 24;28;olive drab finish CABLE CLAMP, SIZE 24/28, DIECAST ZINC CABLE CLAMP, SIZE 24/28, ZINC ALLOY connector accessory, an3057 cable clamp, connector size 24, 28, olive drab finish Amphenol 97 系列 尺寸24, 28 电缆夹, 使用于带护套电缆，带管道保护的电线
.jpg&w=3840&q=75)

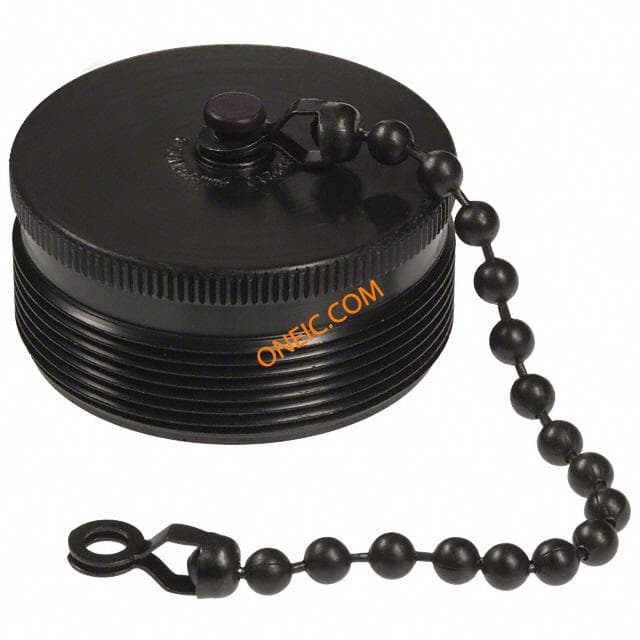

97-60-28P
