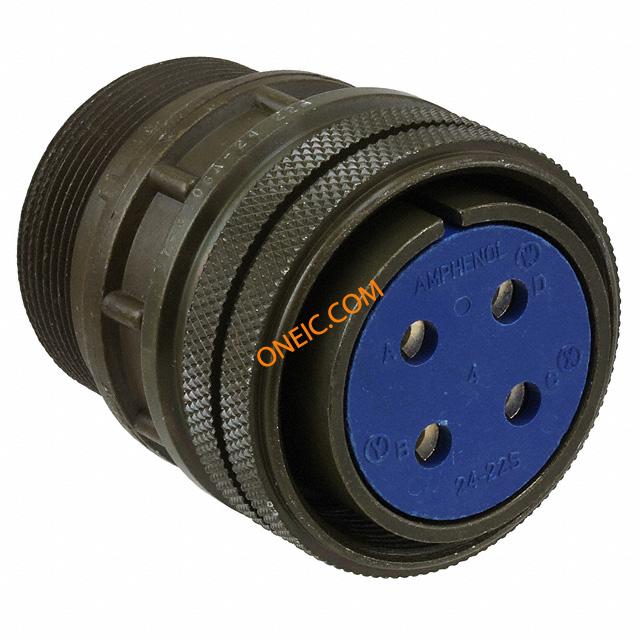

97-3106A-24-22S
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular SKT 4 POS Solder ST Cable Mount 4 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 4POS STRAIGHT W/SKT connector;metal circ;straight plug;size 24;4 #8 solder socket cont;olive drab Circular MIL Spec Connector 4P Strt Socket Plug Sz 24 Solder connector, metal circ, straight plug, size24, 4 #8 solder socket cont, olive drab |
| 分类 |
商业参数
| 其他名称 | 973106A2422S | 产品类别 | Circular MIL Spec Connector |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | MIL类型 | MIL-DTL-5015 |
| 认证机构标志 | UL/CSA | ||
电气参数
| 额定电压 | 900VAC, 1250VDC | 最大额定电流 | 46A |
机械参数
| 包装方式 | Bulk | 出线方向 | Solid |
| 外壳尺寸 | 24 | 导线线规 | 10-8 |
| 方向 | N (Normal) | 外壳样式 | straight plug |
| 端接方式 | Solder | 触头类型 | socket contacts |
| 安装类型 | Cable Mount | 外壳镀层 | Olive Drab Chromate over Cadmium |
| 行程角度 | Straight | 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Olive Drab Cadmium | 安装样式 | Free Hanging |
| 封装形式 | Metal | 外壳材料（壳体） | solid backshell |
| 连接器用途 | Threaded | 插入角度 | 24-22 |
| 壳体材料 | Aluminum Alloy | 主要材料 | 5015 Commercial |
| 端接样式 | Solder | 第一触头极性 | Socket (Female) |
| 触点数 | 4 | 介电材料 | Diallyl-Phthalate |
| 位数 | 4 | 外壳尺寸-插件 | 24-22 |
| 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated | 典型触点布局 | 4#8 |
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | PL | 系列 | 97 |
| 制造商全称 | 97 Series | 产品子类型 | Plugs |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
