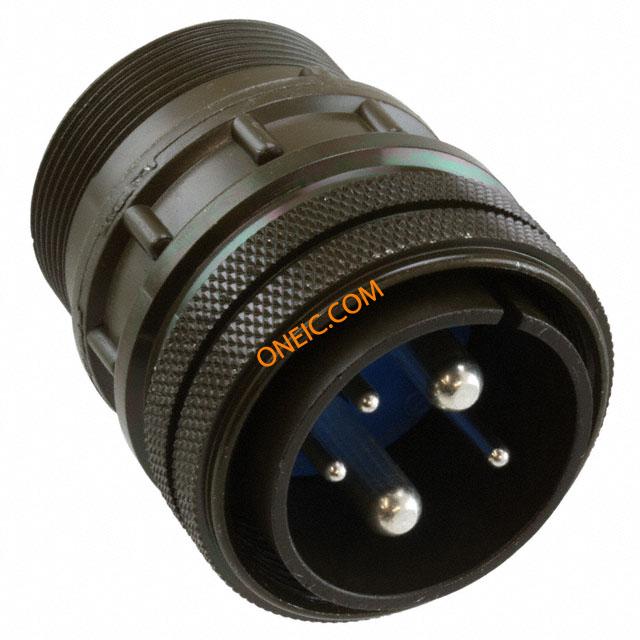

97-3106A-24-12P
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular PIN 5 POS Solder ST Cable Mount 5 Terminal 1 Port Circular MIL Spec Connector 5P Shell Size 24 Straight Plug MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 5POS STRGHT PIN SLD connector;metal circ;str plug;size 24;2#4 & 3#12 solder pin contact;olive drab connector, metal circ, str plug, size 24, 2#4 & 3#12 solder pin contact, olive drab |
| 分类 |
商业参数
| 其他名称 | 973106A2412P | 标准包装数量 | Bulk |
合规参数
| RoHS | No | MIL类型 | MIL-DTL-5015 |
| 认证机构标志 | UL/CSA | ||
电气参数
| 额定电压 | 500VAC, 700VDC | 最大额定电流 | 23A, 80A |
机械参数
| 包装方式 | Bulk | 出线方向 | Solid |
| 外壳尺寸 | 24 | 导线线规 | #4, #12 |
| 方向 | N (Normal) | 外壳样式 | Potting |
| 端接方式 | Solder | 触头类型 | pin contacts |
| 安装类型 | Cable Mount | 外壳镀层 | Olive Drab Chromate over Cadmium |
| 行程角度 | Straight | 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Olive Drab Cadmium | 安装样式 | Wire |
| 封装形式 | Metal | 外壳材料（壳体） | Aluminum Alloy |
| 连接器用途 | Threaded | 插入角度 | 24-12 |
| 触头材料 | Copper Alloy | 壳体材料 | Aluminum Alloy |
| 主要材料 | 5015 Commercial | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 配接方向 | Threaded |
| 触点数 | 5 | 介电材料 | Diallyl-Phthalate |
| 位数 | 5 | 外壳尺寸-插件 | 24-12 |
| 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated | 典型触点布局 | 2#4, 3#12 |
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | PL | 系列 | 97 |
| 制造商全称 | 97 Series | 产品子类型 | Plugs |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
