点击放大查看

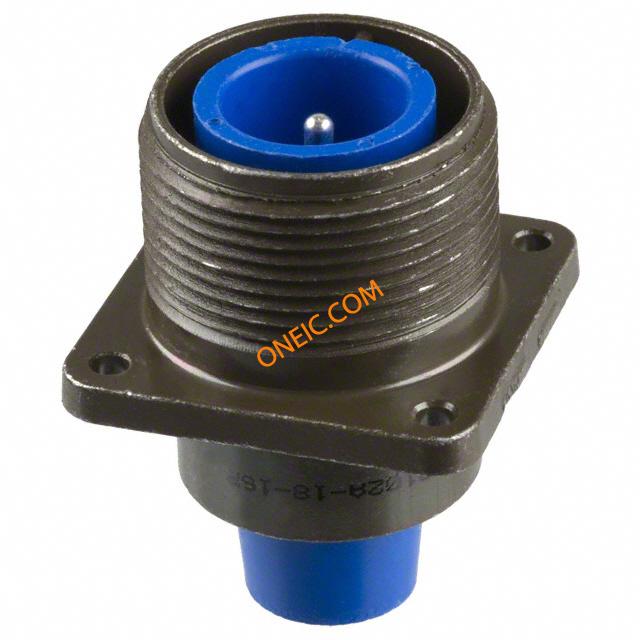

97-3102A-18-16P
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular PIN 1 POS Solder ST Box Mount 1 Terminal 1 Port CONN RECEPT BOX MNT 1POS W/PINS connector;metal circ;box recept;size 18;1 #12 solder pin contact;olive drab Circular MIL Spec Connector 1P Sz 18 Box Mount Pin Recept Solder connector, metal circ, box recept, size 18, 1 #12 solder pin contact, olive drab |
| 分类 |
商业参数
| 其他名称 | 10-820050-16P | 产品类别 | Circular MIL Spec Connector |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | MIL类型 | MIL-DTL-5015 |
| 认证机构标志 | UL/CSA | ||
电气参数
| 额定电压 | 3000VAC, 4200VDC | 最大额定电流 | 23A |
机械参数
| 包装方式 | Bulk | 出线方向 | Solid |
| 外壳尺寸 | 18 | 导线线规 | 12-14 |
| 方向 | N (Normal) | 外壳样式 | Box Mount |
| 端接方式 | Solder | 触头类型 | Pin |
| 安装类型 | Box Mount | 外壳镀层 | Olive Drab Chromate over Cadmium |
| 行程角度 | Straight | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Olive Drab Cadmium | 安装样式 | Panel |
| 封装形式 | Metal | 外壳材料（壳体） | Aluminum Alloy |
| 连接器用途 | Threaded | 插入角度 | 18-1 |
| 壳体材料 | Aluminum Alloy | 主要材料 | 5015 Commercial |
| 端接样式 | Solder | 第一触头极性 | Pin (Male) |
| 触点数 | 10 | 介电材料 | Diallyl-Phthalate |
| 位数 | 1 | 外壳尺寸-插件 | 18-16 |
| 安装孔直径 | 0.12 " | 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated |
| 典型触点布局 | 1#12 | ||
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | RCP | 系列 | 97 |
| 制造商全称 | 97 Series | 产品子类型 | Receptacles |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
97-3106A-18-16S
amphenol
Conn MIL-C-5015 Circular SKT 1 POS Solder ST Cable Mount 1 Terminal 1 Port CONN PLUG 1POS W/SOCKETS connector;metal circ;straight plug;size 18;1 #12 solder socket cont;olive drab CIRCULAR CONNECTOR ((NW)) connector, metal circ, straight plug, size18, 1 #12 solder socket cont, olive drab

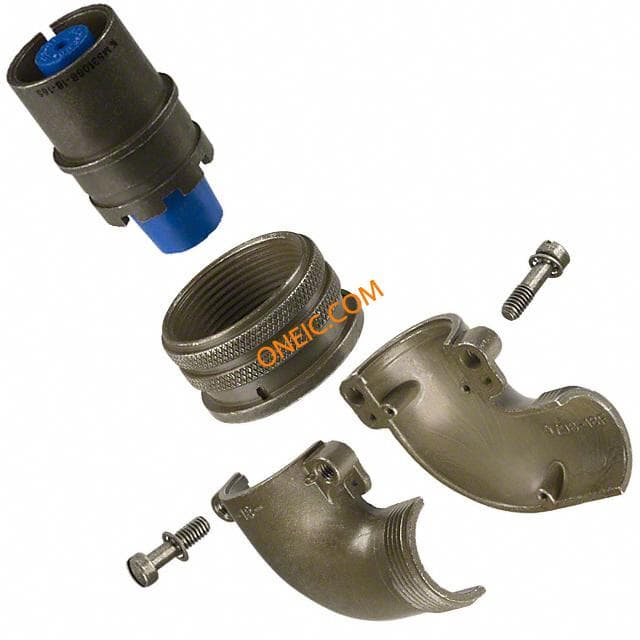

97-3108B-18-16S
