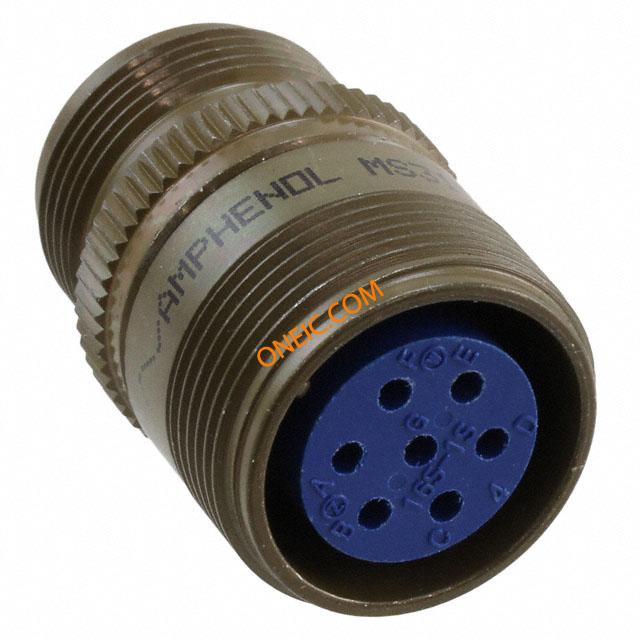

97-3101A-16S-1S
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular SKT 7 POS Solder ST Cable Mount 7 Terminal 1 Port Circular MIL Spec Connector 7P Sz 16S Sckt Cable Receptacle Solder MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RCPT 7POS CABLE MNT W/SKT connector;metal circ;cable recept;size 16s;7 #16 solder socket cont;olive drab CIRCULAR CONNECTOR RCPT SIZE 16S, 7POS, CABLE connector, metal circ, cable recept, size 16s, 7 #16 solder socket cont, olive drab |
| 分类 |
商业参数
| 其他名称 | 973101A16S1S | 产品类别 | Circular MIL Spec Connector |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | No | MIL类型 | MIL-DTL-5015 |
| 海关税号 | 85369010 | 认证机构标志 | UL/CSA |
电气参数
| 额定电压 | 700 V | 最大额定电流 | 13 A |
机械参数
| 重量 | 0.027 | 包装方式 | Bulk |
| 出线方向 | Solid | 外壳尺寸 | 16 |
| 导线线规 | 16-22 | 方向 | N (Normal) |
| 外壳样式 | In-Line | 端接方式 | Solder |
| 重量（g） | 32.00000 | 触头类型 | socket contacts |
| 安装类型 | Cable Mount | 外壳镀层 | Olive Drab Chromate over Cadmium |
| 行程角度 | Straight | 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Olive Drab Cadmium | 安装样式 | Cable |
| 封装形式 | Metal | 外壳材料（壳体） | Aluminum Alloy |
| 连接器用途 | Threaded | 插入角度 | 16S-1 |
| 本体材料 | :Aluminium Alloy | 壳体材料 | Aluminum Alloy |
| 主要材料 | 5015 Commercial | 端接样式 | Solder |
| 第一触头极性 | Socket (Female) | 触点数 | 7 |
| 介电材料 | Diallyl-Phthalate | 位数 | 7 |
| 外壳尺寸-插件 | 16S-1 | 安装孔直径 | 0.12 " |
| 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated | 典型触点布局 | 7#16 |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | RCP | 系列 | 97 |
| 制造商全称 | 97 Series | 产品子类型 | Receptacles |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
