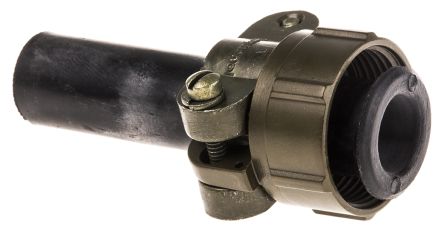

97-3057-1008-1
| 制造商 | |
| 描述 | Connector Accessories Clamp/Bushing Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate Miscellaneous Connector Accessories CONN CABLE CLAMP SIZE 16, 16S Straight multipole cable clamp,Size 16 Circular MIL Spec Strain Reliefs & Adapters Clamp with Bushing Size 16, 16S CABLE GLAND CLAMP CABLE CLAMP, SIZE 16, 16S connector accessory, cable clamp with rubber bushing, size 16, 16s, olive drab Amphenol 97 系列 橄榄色 铝合金 电缆夹, 14.27mm 捆束直径 |
| 分类 |
商业参数
| 产品 | Cable Clamps | 其他名称 | 97305710081 |
| 零件号别名 | U10-824811-008 | 产品类别 | Circular MIL Spec Strain Reliefs & Adapters |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | MIL类型 | MIL-DTL-5015 |
| 海关税号 | 85369010 | 认证机构 | :MIL-DTL-5015 |
机械参数
| 宽度 | 28.45 mm | 长度 | 23.37mm |
| 重量 | 0.036 | 材料（通用） | Die Cast Zinc |
| 出线方向 | :180° | 外壳尺寸 | 16S, 16 |
| 螺纹尺寸 | 7/8-20 | 重量（g） | 39.30000 |
| 基体材料 | Aluminum Alloy | 电缆开口 | 0.563" (14.27mm) |
| 安装类型 | Screw | 电缆直径 | 14.27 mm |
| 线束直径 | 14.27mm | 电缆端接方式 | Cable Clamp |
| 配接方向 | Threaded | 外壳尺寸-插件 | 16, 16S |
| 绝缘材料 - 材质 | :Zinc Alloy | 供应商器件封装 | Straight |
| 外径-未扩张 | :14.27mm | ||
产品信息
| 类型 | Cable Clamp | 系列 | 97 |
| 产品特性 | Bushing | 附件类型 | :Cable Clamp |
| 射频系列/标准 | 97 | 适用产品/相关产品 | :97 Series Circular Connectors |
文档与媒体
相关型号
97-3106A-16S-1P
amphenol
Conn MIL-C-5015 Circular PIN 7 POS Solder ST Cable Mount 7 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 7POS W/PINS connector;metal circ;straight plug;size 16s;7 #16 solder pin contact;olive drab Circular MIL Spec Connector 7P Straight Pin Plug Sz 16S Solder CIRCULAR CONNECTOR connector, metal circ, straight plug, size16s, 7 #16 solder pin contact, olive drab

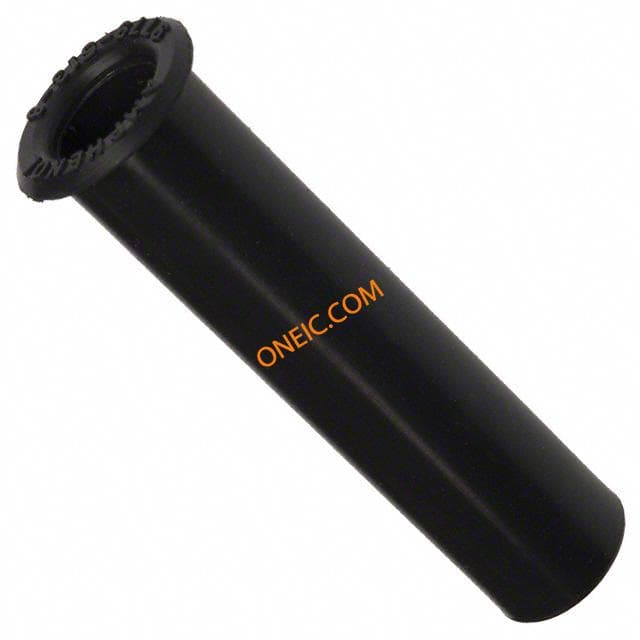

97-79-513-8
amphenol
Connector Accessories Bushing Rubber Black BUSHING 16,16S 9/16OD connector accessory;rubber bushing for ms3057a cable clamp;for 0.437 o.d. wire Circular MIL Spec Tools, Hardware & Accessories 2.50 BUSHING BUSHING, MS3057A CABLE CLAMP connector accessory, rubber bushing for ms3057a cable clamp, for 0.437 o.d. wire

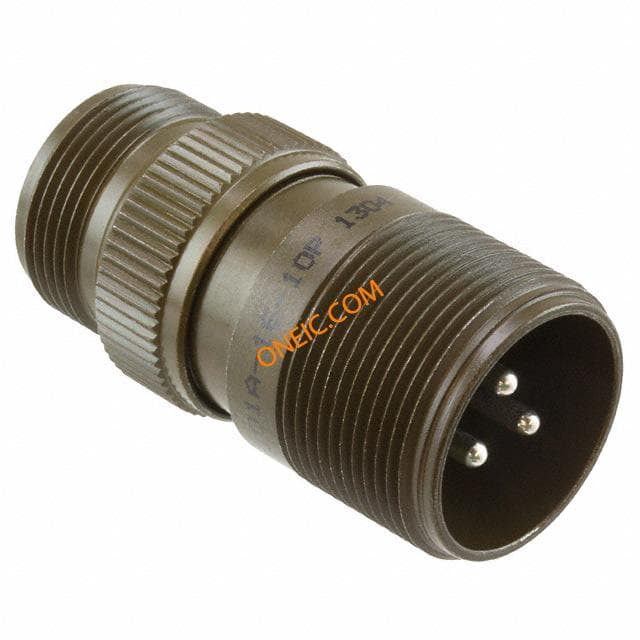

97-3101A-16-10P
amphenol
Conn MIL-C-5015 Circular PIN 3 POS Solder ST Cable Mount 3 Terminal 1 Port CONN RCPT 3POS CABLE PIN SLD connector;metal circ;cable recept;size 16;3 #12 solder pin contact;olive drab Circular MIL Spec Connector 3P Sz 10 Pin Cable Receptacle Solder connector, metal circ, cable recept, size 16, 3 #12 solder pin contact, olive drab
97-3101A-16S-1P
amphenol
Conn MIL-C-5015 Circular PIN 7 POS Solder ST Cable Mount 7 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RCPT 7POS CABLE MNT W/PIN connector;metal circ;cable recept;size 16s;7 #16 solder pin contact;olive drab Circular MIL Spec Connector 7P Sz 16S Pin Cable Receptacle Solder connector, metal circ, cable recept, size 16s, 7 #16 solder pin contact, olive drab
97-3106A-16-11P
amphenol
Conn MIL-C-5015 Circular PIN 2 POS Solder ST Cable Mount 2 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 2POS STRAIGHT W/PINS connector;metal circ;straight plug;size 16;2 #12 solder pin contact;olive drab Circular MIL Spec Connector 2P Straight Pin Plug Sz 16 Solder connector, metal circ, straight plug, size16, 2 #12 solder pin contact, olive drab

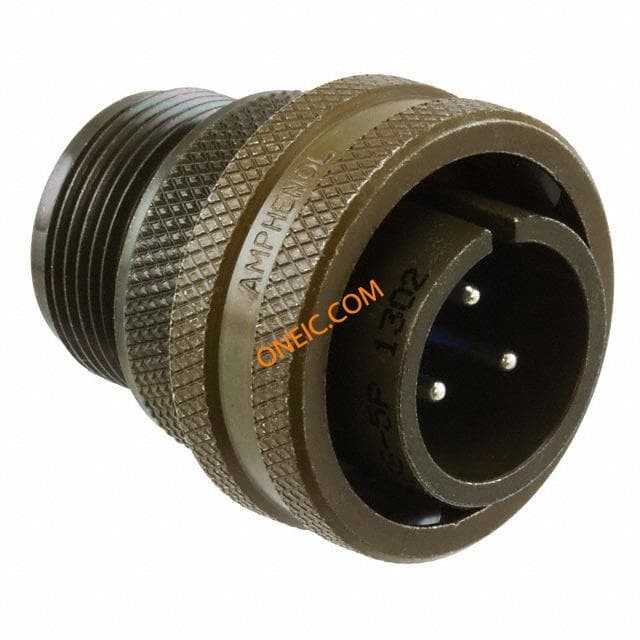

97-3107A-16S-5P
Amphenol Industrial
Circular MIL Spec Connector 2P Shell Size 16S Friction Fit St Plug CONN PLUG 3POS STRGHT PIN QD connector;metal circ;str plug;QD;size 16s;3 #16 solder pin contact;olive drab connector, metal circ, str plug, QD, size 16s, 3 #16 solder pin contact, olive drab
97-3100A-16S-1S
amphenol
Conn MIL-C-5015 Circular SKT 7 POS Solder ST Wall Mount 7 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RECP WALL MOUNT 7 POS connector;metal circ;wall recept;size 16s;7 #16 solder socket contact;olive drab Circular MIL Spec Connector 7P Sz 16S Wall Mount Socket Recept Solder CIRCULAR CONNECTOR RCPT, SIZE 16S, 7POS, WALL connector, metal circ, wall recept, size 16s, 7 #16 solder socket contact, olive drab
97-3101A-16S-8P
amphenol
Conn MIL-C-5015 Circular PIN 5 POS Solder ST Cable Mount 5 Terminal 1 Port Circular MIL Spec Connector 5P Sz 16S Pin Cable Receptacle Solder CONN RCPT 5POS CABLE PIN SLD connector;metal circ;cable recept;size 16s;5 #16 solder pin contact;olive drab connector, metal circ, cable recept, size 16s, 5 #16 solder pin contact, olive drab
97-3101A-16S-1S
amphenol
Conn MIL-C-5015 Circular SKT 7 POS Solder ST Cable Mount 7 Terminal 1 Port Circular MIL Spec Connector 7P Sz 16S Sckt Cable Receptacle Solder MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RCPT 7POS CABLE MNT W/SKT connector;metal circ;cable recept;size 16s;7 #16 solder socket cont;olive drab CIRCULAR CONNECTOR RCPT SIZE 16S, 7POS, CABLE connector, metal circ, cable recept, size 16s, 7 #16 solder socket cont, olive drab
97-3106A-16-10S
amphenol
Conn MIL-C-5015 Circular SKT 3 POS Solder ST Cable Mount 3 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 3POS STRAIGHT W/SKT connector;metal circ;straight plug;size 16;3 #12 solder socket cont;olive drab Circular MIL Spec Connector 3P Strt Socket Plug Sz 16 Solder connector, metal circ, straight plug, size16, 3 #12 solder socket cont, olive drab
97-3106A-16S-8S
amphenol
Conn MIL-C-5015 Circular SKT 5 POS Solder ST Cable Mount 5 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 5POS W/SOCKETS connector;metal circ;straight plug;size 16s;5 #16 solder socket cont;olive drab CIRCULAR CONNECTOR PLUG SIZE 16S, 5POS, CABLE connector, metal circ, straight plug, size16s, 5 #16 solder socket cont, olive drab

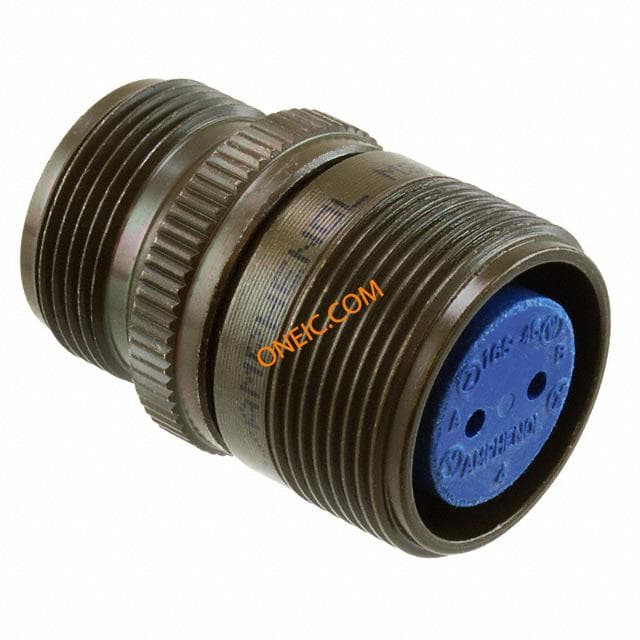

97-3101A-16S-4S
