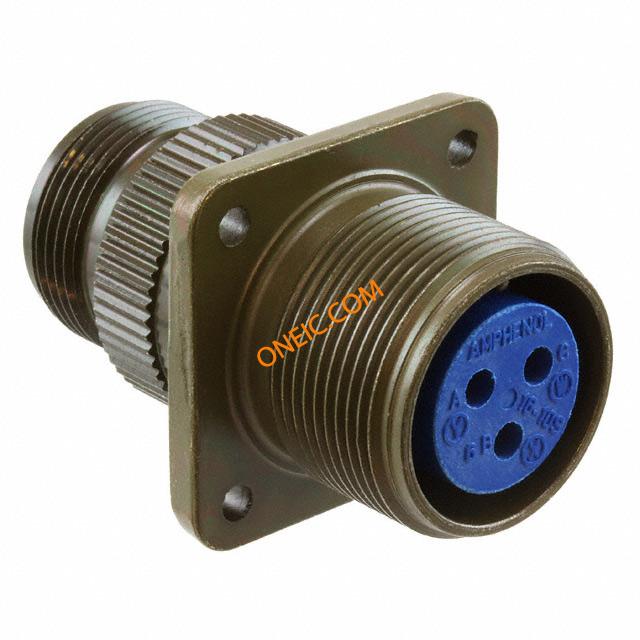

97-3100A-16-10S
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular SKT 3 POS Solder ST Wall Mount 3 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RCPT 3POS WALL MNT SKT SLD connector;metal circ;wall recept;size 16;3 #12 solder socket contact;olive drab Circular MIL Spec Connector 3P Sz 16 Wall Mount Socket Recept Solder connector, metal circ, wall recept, size 16, 3 #12 solder socket contact, olive drab |
| 分类 |
商业参数
| 其他名称 | 973100A1610S | 产品类别 | Circular MIL Spec Connector |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS non-compliant | MIL类型 | MIL-DTL-5015 |
| 认证机构标志 | UL/CSA | ||
电气参数
| 额定电压 | 500VAC, 700VDC | 最大额定电流 | 23A |
机械参数
| 包装方式 | Bulk | 出线方向 | Solid |
| 外壳尺寸 | 16 | 导线线规 | 12 |
| 方向 | N (Normal) | 外壳样式 | wall receptacle |
| 端接方式 | Solder | 触头类型 | socket contacts |
| 安装类型 | Wall Mount | 外壳镀层 | Olive Drab Chromate over Cadmium |
| 行程角度 | Straight | 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Olive Drab Cadmium | 安装样式 | Panel |
| 封装形式 | Metal | 外壳材料（壳体） | solid backshell |
| 连接器用途 | Threaded | 插入角度 | 16-10 |
| 壳体材料 | Aluminum Alloy | 主要材料 | 5015 Commercial |
| 端接样式 | Solder | 第一触头极性 | Socket (Female) |
| 触点数 | 3 | 介电材料 | Diallyl-Phthalate |
| 位数 | 3 | 外壳尺寸-插件 | 16-10 |
| 安装孔直径 | 0.12 " | 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated |
| 典型触点布局 | 3#12 | ||
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | RCP | 系列 | 97 |
| 制造商全称 | 97 Series | 产品子类型 | Receptacles |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号

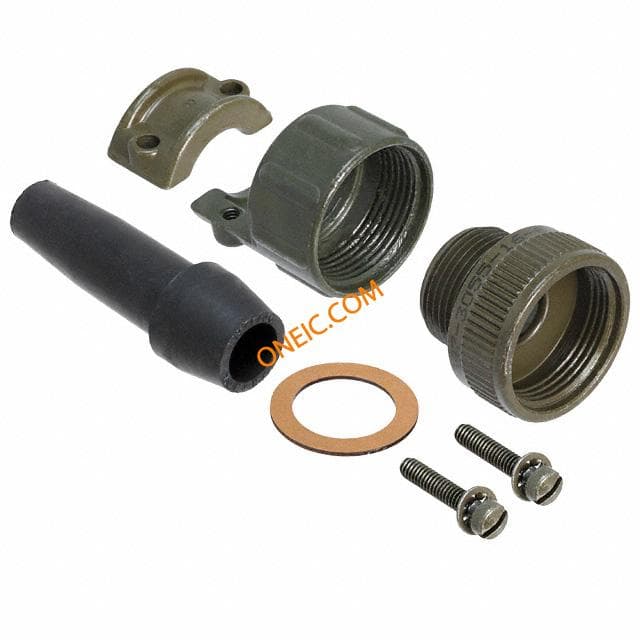

97-67-16-6
amphenol
Connector Accessories Water Resistant Cable Clamp Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 16, 16S connector accessory;water resistant cable clamp;size 16s;16;olive drab finish Circular MIL Spec Strain Reliefs & Adapters WR CLAMP 16S 16 connector accessory, water resistant cable clamp, size 16s, 16, olive drab finish
97-60-16
amphenol
Connector Accessories Metal Protection Cap Bead Chain For Receptacle CONN CAP FOR SIZE 16, 16S RCPT Chassis mount plug&skt dust cap,Size 16S Circular MIL Spec Tools, Hardware & Accessories RECPT. CAP 16 16S connector accessory, metal prot cap w/bead chain, for size 16 recept, olive drab Amphenol 97 系列 MIL-DTL-5015 插头 IP66 防尘盖, 尺寸16, 橄榄镉表面

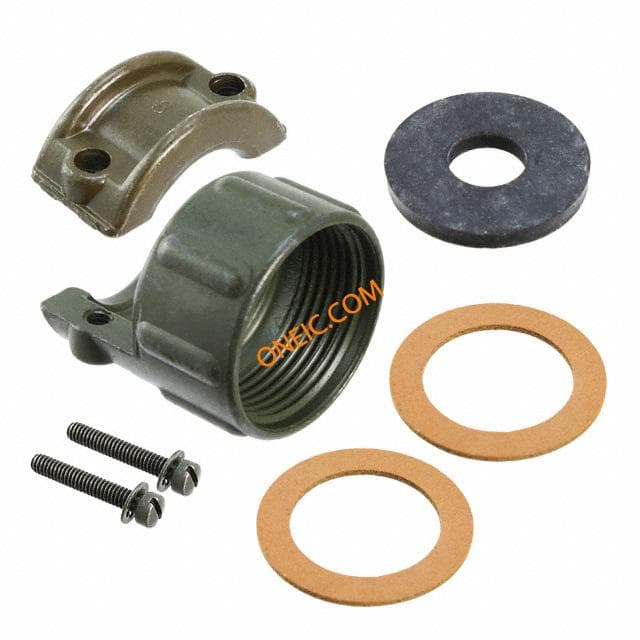

97-3057-8
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 16, 16S connector accessory;an3057 cable clamp;connector size 16;16s;olive drab finish Circular MIL Spec Strain Reliefs & Adapters Cable Clamp AN3067 Shell Size 16, 16S CABLE CLAMP, SIZE 16/16S, ZINC ALLOY CABLE CLAMP, SIZE 16/16S, DIECAST ZINC connector accessory, an3057 cable clamp, connector size 16, 16s, olive drab finish Amphenol 97 系列 尺寸16, 16S 电缆夹, 使用于带护套电缆，带管道保护的电线
97-3055-16-6
amphenol
Connector Accessories Adapter Used As Reducing Bushing Circular MIL Spec Strain Reliefs & Adapters Bushing Adapter Shell Size 16, 16S CIRC REDUCING BUSHING SZ 16, 16S connector accessory;reducing/extending bushing;conn size 16s;16;conduit 3/8 inch connector accessory, reducing/extending bushing, conn size 16s, 16, conduit 3/8 inch
97-3057-1008-1
amphenol
Connector Accessories Clamp/Bushing Zinc Die Cast Alloy/Rubber Olive Drab/Green Chromate Miscellaneous Connector Accessories CONN CABLE CLAMP SIZE 16, 16S Straight multipole cable clamp,Size 16 Circular MIL Spec Strain Reliefs & Adapters Clamp with Bushing Size 16, 16S CABLE GLAND CLAMP CABLE CLAMP, SIZE 16, 16S connector accessory, cable clamp with rubber bushing, size 16, 16s, olive drab Amphenol 97 系列 橄榄色 铝合金 电缆夹, 14.27mm 捆束直径
97-3106A-16-10P
amphenol
Conn MIL-C-5015 Circular PIN 3 POS Solder ST Cable Mount 3 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 3POS STRAIGHT W/PIN connector;metal circ;straight plug;size 16;3 #12 solder pin contact;olive drab Circular MIL Spec Connector 3P Straight Pin Plug Sz 16 Solder CIRCULAR CONNECTOR PLUG, SIZE 16, 3POS, CABLE connector, metal circ, straight plug, size16, 3 #12 solder pin contact, olive drab
97-3057-1008
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 16, 16S connector accessory;ms3057a cable clamp;connector size 16;16s;olive drab finish Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Size 16, 16S CABLE CLAMP, SIZE 16, 16S CABLE GLAND, SHELL SIZE 16/16S connector accessory, ms3057a cable clamp, connector size 16, 16s, olive drab finish

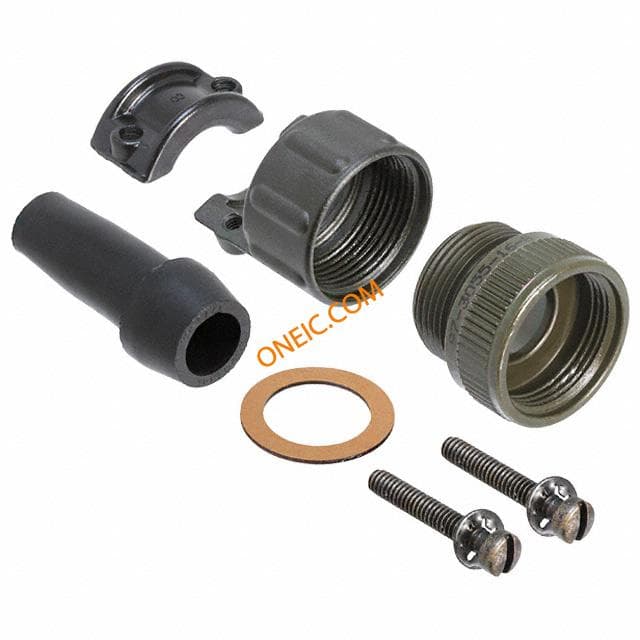

97-67-16-8
