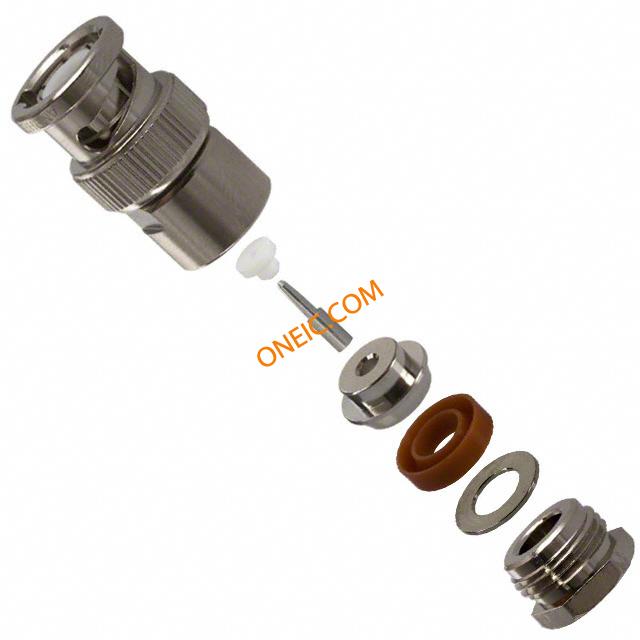

31-202
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC PL 0Hz to 4GHz 50Ohm Solder ST Cable Mount Silver CONN BNC PLUG STR 50 OHM SOLDER RF Connectors / Coaxial Connectors STRAIGHT CLAMP PLUG 50ohm RG55 142 400 RF/COAXIAL BNC PLUG STR 50 OHM CLAMP/SLDR BNC PLUG 50 OHM CLAMP BRAID & SOLDED CENT COND FOR RG58 UG-88C |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 031-202 16R0541 39F1018 713-1041 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 耦合系数 | Bayonet |
| 最大频率 | 4GHz | ||
机械参数
| 重量 | 0.561561 oz | 直径 | 14.3 mm |
| 包装方式 | Bulk | 电缆类型 | RG-55, RG-58, RG-141, RG-142, RG-223, RG-400 |
| 本体表面处理 | Nickel | 电缆组 | RG-58, 141, 142, 223 |
| 方向 | Straight | 端接方式 | Solder |
| 重量（g） | 17.60000 | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Cable Mount |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Silver |
| 紧固类型 | Bayonet Lock | 安装样式 | Cable |
| 壳体镀层 | Nickel | 连接器样式 | BNC |
| 触头材料 | Brass | 总长度 | 27 mm |
| 端接样式 | Cable - Clamp | 屏蔽层端接方式 | Clamp |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 中心触点镀层工艺 | Silver | 中心触点材料 | Brass |
| 供应商器件封装 | Straight | ||
产品信息
| 类型 | BNC | 连接器性别 | PL |
| 极性 | Standard | 连接类型 | Coaxial Cable |
| 射频系列/标准 | 031-202 | ||
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
