点击放大查看
31-317
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold connector;rf coaxial;bnc straight jack;crimp-crimp;for rg174;188;316 cable;50ohm RF Connectors / Coaxial Connectors SRT JCK RG316/174 |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 031-317 50F1607 713-1084 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Compliant | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 耦合系数 | Bayonet | 最大频率 | 4 GHz |
机械参数
| 重量 | 0.463994 oz | 电缆类型 | RG-174, RG-188, RG-316, Belden 7805 |
| 本体表面处理 | Nickel | 方向 | Straight |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Cable Mount | 接触镀层 | Gold |
| 触头材料 | Beryllium Copper|Phosphor Bronze | 端接样式 | Cable - Crimp |
| 接触件端接 | Crimp | 供应商器件封装 | Straight |
产品信息
| 类型 | BNC | 连接器性别 | RCP |
| 极性 | Standard | 连接类型 | Coaxial Cable |
| 射频系列/标准 | 031-317 | ||
环境参数
| 插拔次数 | 500 | 工作温度 | - 65 C to + 165 C |
文档与媒体
相关型号

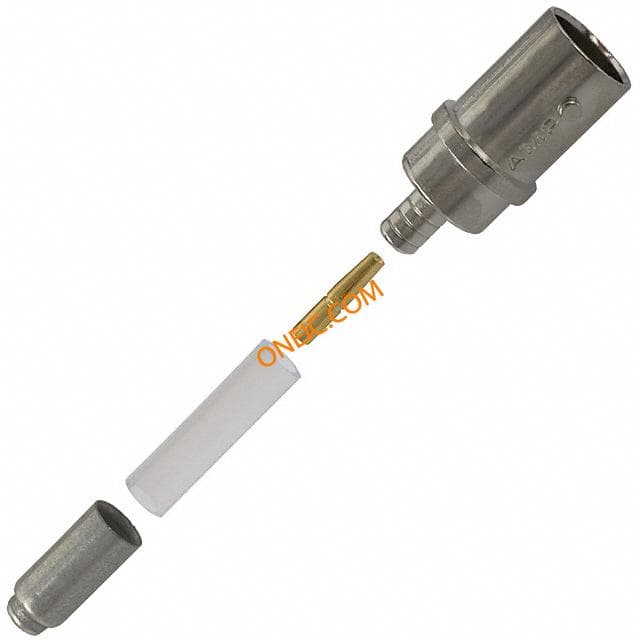

5413779-3
