点击放大查看
044 100 1414P 1000 101
| 制造商 | |
| 描述 | Contact PIN Crimp ST Cable Mount Bag Standard Circular Contacts BAG OF 1000 PIN CNTS Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 14-18 AWG TIN connector comp;044-series;poke-home crimp pin contact;for 14;16;18awg wire connector comp, 044-series, poke-home crimp pin contact, for 14, 16, 18awg wire |
| 分类 |
商业参数
| 其他名称 | 0441001414P1000101 | 产品类别 | Standard Circular Contacts |
| 标准包装数量 | Bag | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 30 | ||
机械参数
| 包装方式 | Reel | 导线线规 | 14-18 AWG |
| 屏蔽类型 | No | 端接方式 | Crimp |
| 触头类型 | Signal | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 连接器类型 | Connector Circular |
| 接触镀层 | Tin | 触头材料 | Copper Alloy |
| 第一触头极性 | Pin (Male) | 触点数 | 1000 |
| 接触件端接 | Crimp | ||
产品信息
| 连接器性别 | PIN | 系列 | 44 |
| 适用产品/相关产品 | Hand tool crimping machines | ||
环境参数
| 机械寿命 | Obsolete | 工作温度 | 105 |
文档与媒体
相关型号
357 561
amphenol
Assembly Tools, Economy Crimping Tools Crimpers CRIMP TOOL HAND CRIMP TOOL W/O RATCHET 44series automotive connector crimp tool Amphenol 压接工具

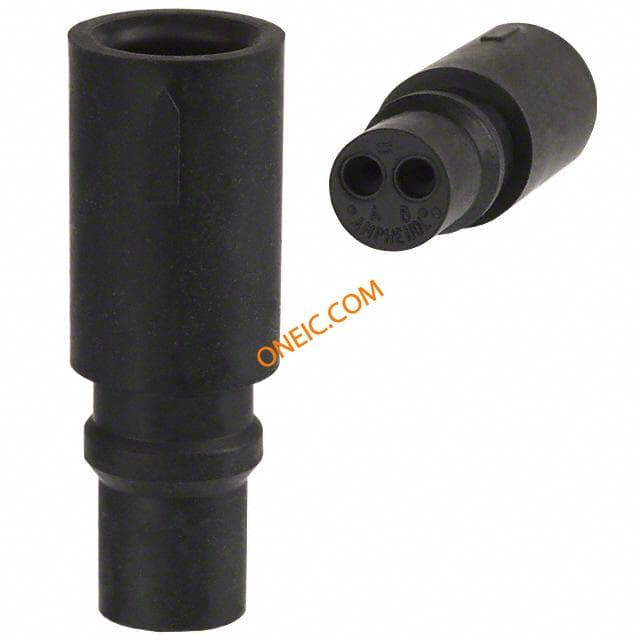

044 104 10002 02
Amphenol Tuchel
Standard Circular Connector 2P RECEPTACLE CONN RECEPT 2POS MINI PUSH-ON connector;plastic circ;str recept housing;for 2 crimp pin cont;sealed;ip65/ip67 RECEPTACLE, SERIES 44, 2 WAY connector, plastic circ, str recept housing, for 2 crimp pin cont, sealed, ip65/ip67

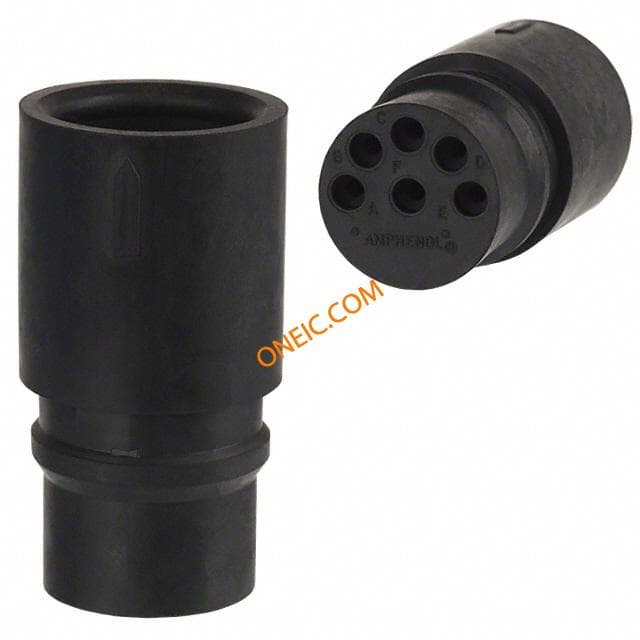

044 104 10006 02
amphenol
Conn Housing RCP 6 POS Crimp ST Cable Mount CONN RECEPT 6POS MINI PUSH-ON Standard Circular Connector 6P RECEPTACLE RECEPTACLE, SERIES 44, 6 WAY connector, plastic circ, str recept housing, for 6 crimp pin cont, sealed, ip65/ip67

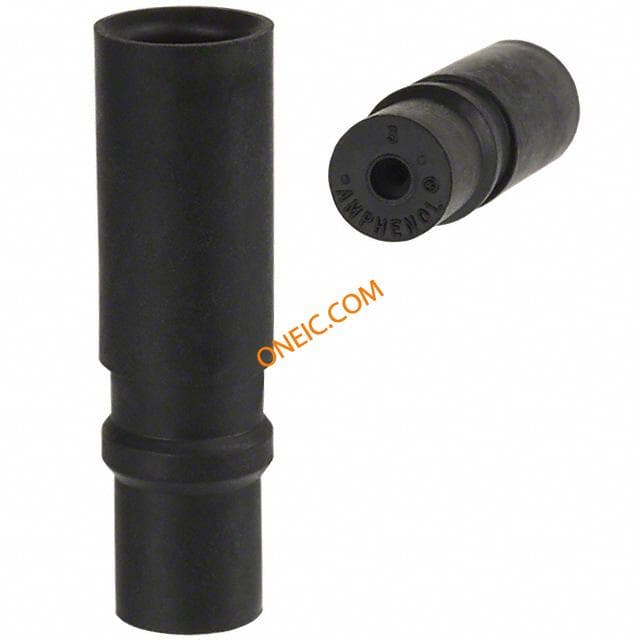

044 104 10001 02
amphenol
Conn Housing RCP 1 POS Crimp ST Cable Mount CONN RECEPT 1POS MINI PUSH-ON Standard Circular Connector St Recpt ; 1 pin Mini Push On connector, plastic circ, str recept housing, for 1 crimp pin cont, sealed, ip65/ip67
044 104 10303
Amphenol Tuchel
Standard Circular Connector 3P RECPT HOUSING CONN RCPT 3POS CABLE PIN CRIMP

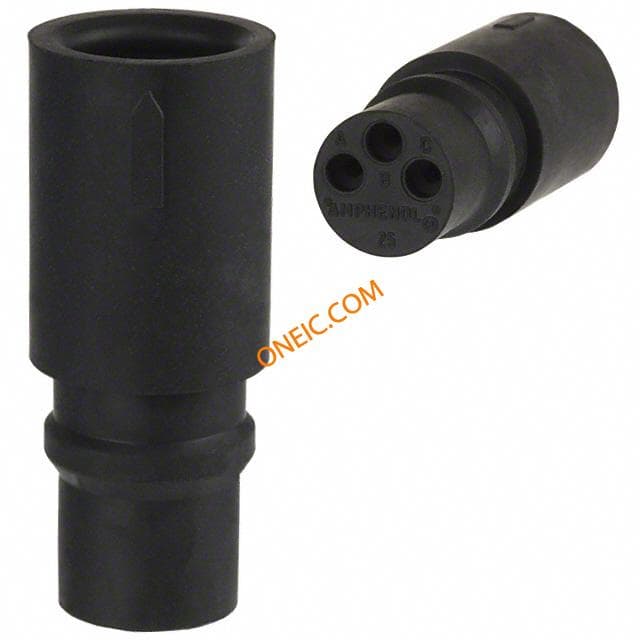

044 104 10003 02
Amphenol Tuchel
Standard Circular Connector 3P RECEPTACLE CONN RECEPT 3POS MINI PUSH-ON connector;plastic circ;str recept housing;for 3 crimp pin cont;sealed;ip65/ip67 RECEPTACLE, SERIES 44, 3 WAY connector, plastic circ, str recept housing, for 3 crimp pin cont, sealed, ip65/ip67

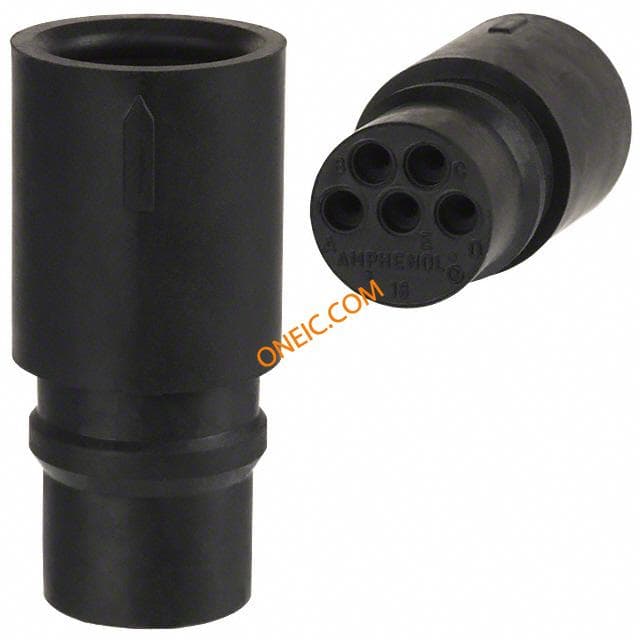

044 104 10005 02
Amphenol Tuchel
Standard Circular Connector 5P RECEPTACLE CONN RECEPT 5POS MINI PUSH-ON connector;plastic circ;str recept housing;for 5 crimp pin cont;sealed;ip65/ip67 CIRCULAR CONNECTOR RECEPTACLE 5POS CABLE connector, plastic circ, str recept housing, for 5 crimp pin cont, sealed, ip65/ip67
044 104 10304
Amphenol Tuchel
Standard Circular Connector 4P RECPT HOUSING CONN RCPT 4POS CABLE PIN CRIMP
044 104 10305
Amphenol Tuchel
Standard Circular Connector 5P RECPT HOUSING CONN RCPT 5POS CABLE PIN CRIMP 05P MALE CIRCULAR RECEPTACLE

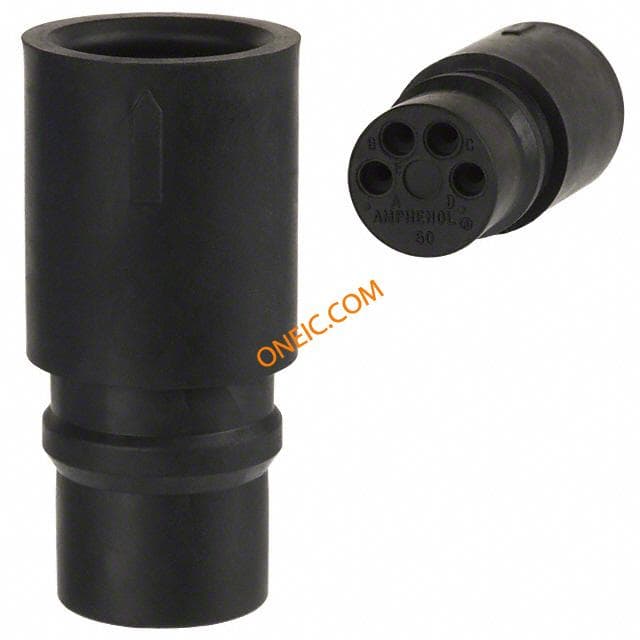

044 104 10004 02
